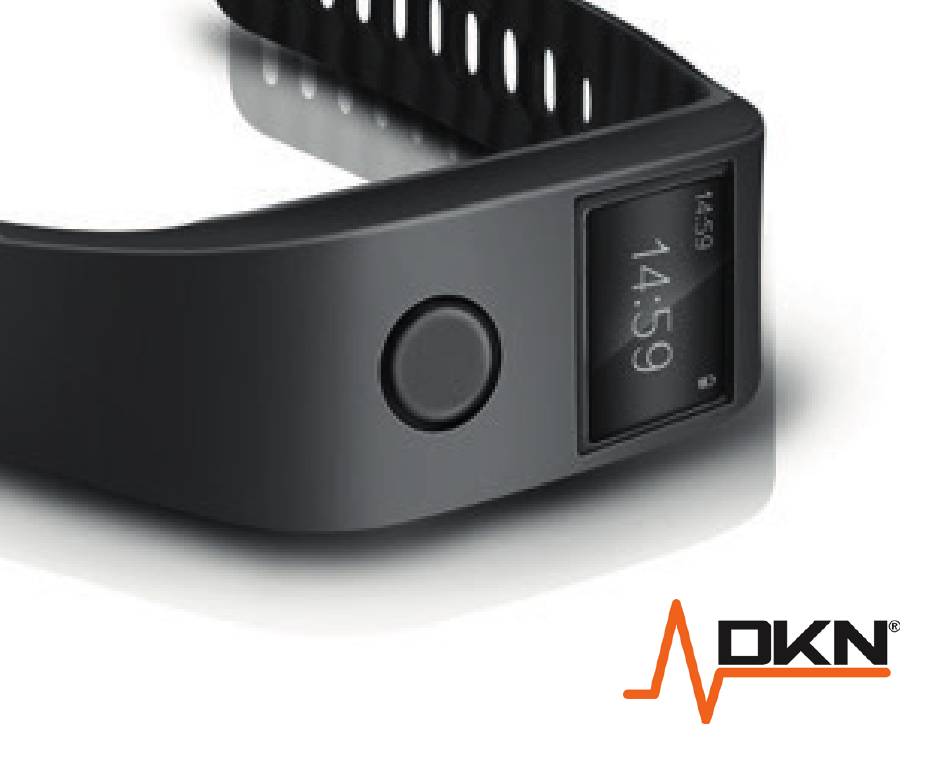

Page 1 CARDIO CONNECT...
Page 2: Wrist Placement
This device can also be used as a fitness tracker allowing you to record, store, and view your daily activity. Wrist Placement. Your DKN Cardio Connect should be worn on your wrist. For all-day wear, your DKN Cardio Connect should be worn as you’d normally wear a watch.
Page 3 As with all heartrate tracking technology, a wrist-based sensor accuracy is affected by personal physiology, location of wear, and type of movement. In other words, not every person will get a perfectly ac-curate reading with every type of exercise. Heart rate displayed is an approximate readout, and may not be used as guidance in any cardiovascular related medical or paramedical program.
Page 4 Also, many exercises such as spinning cause you to bend your wrist frequently, which is more likely to interfere with the heart rate signal if the Cardio Connect is lower on your wrist.
Page 5 • Do not wear your Cardio Connect too tight: a tight band restricts blood flow, potentially affecting the heart rate signal. The Cardio Connect should also be slightly tighter (but not constricting) during exercise than during all day wear. • With high-intensity interval training or activities where...
Page 6 (about 10 seconds), after which you hould see an accurate heart rate reading. • You can check the time on your Cardio Connect without pressing the button. Just turn your wrist towards you and time will show for a few seconds.
Page 7: Regulatory Information
Regulatory Information. The WEEE marking applies to countries with WEEE and ewaste regulations, European Directive 2002/96/EC. Appliances are labelled in accordance with local reg-ulations concerning waste electrical and electronic equipment (WEEE). These regulations determine the framework for the return and recycling of used appliances as applicable within each geography.
Page 8 This label is applied to various products to indicate that the product is not to be thrown away, but rather put in the established collective systems for reclaiming these end of life products. Users of electrical and electronic equipment (EEE) with the WEEE marking must not dispose of end of life EEE as unsorted municipal waste, but use the collection framework available to them for the return,...
Page 9 human health due to the presence of hazardous substances. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
Page 10: Safety Standards
Safety Standards. The Cardio Connect has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 11 instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •...
Page 12 • Increase the separation between the equipment and receiver. • Connect the equipment into an out-let on a circuit different from that to which the receiver is connected. • Consult the dealer or an experi-enced radio/TV technician for help. • This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:...
Page 13 (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Notice: • Operating temperature: -10°c ~ +10°c. • Charge using a 5v/500 mA adapter.
Page 14: Product Overview
Product Overview.
Page 15 The wristband is powered by a re-chargeable built-in Li-Polymer battery. Charge by connecting the provided USB cable to a running PC/Notebook or adaptor. • Connect the Cardio Connect to a USB port using the provided USB cable. • A dynamic power sign shows while charging.
Page 16 • The average charging times is 1.5 to 2 hours max. • Unplug the Cardio Connect once charging is finished. • The battery has a capacity of 60mAh and has a life cycle of 400 charges / discharges before the capacity falls under 80%.
Page 17: First Time Use
Download the app via the App Store or iTunes for iOS users or the Google Play Store for Android. Sync date and time on your DKN Cardio Connect by activating the Bluetooth connection on your DKN Cardio Connect and pair with your device.
Page 18 Bluetooth® Sync the DKN Cardio Connect with the app via Bluetooth. Bluetooth turned on, not connected Bluetooth turned on, connected...
Page 19 Instructions for Use. The wristband will enter standby status if not used for over 10 seconds. You can short press the wristband button to restart it. Short press to change between the display modes. In Heart rate mode the sensor will register your pulse read-out after +/- 10 to 15 seconds.
Page 20: Sleep Mode
Sleep Mode. To enter sleep mode, press and hold the button until the display enters sleep mode with the sleep icon as follows: When in sleep mode, long press again to display sleep quality: : poor sleep quality : average sleep quality : good sleep quality To exit sleep mode, short press the button.
Page 21: Functional Overview
Functional Overview. Daytime activity tracking: The DKN Cardio Connect has preset daily targets for steps, distance and calories burned. Use the app to set your own daily targets and customize your stride length for more accurate results, then wear your Cardio Connect to start tracking your activities.
Page 22 The Target Completion % screen shows a summary of your overall progress for the day. You will receive a visual and vibration notification when you hit the daily target. Sleep tracking: At the end of your day, activate the sleep tracking mode and go to bed. Then in the morning deactivate sleep tracking mode to see a summary of the duration and quality of your night’s sleep.
Page 23: App Functions
Syncing: It is recommended that you sync your Cardio Connect with your device once a day to keep a log of your activity and sleep tracking data. App Functions. Download the app via the App Store or iTunes for iOS users or the Google Play Store for Android.
Page 24 On the app you can: • View your fitness, sleep and heart rate records. Select Steps, Sleep or HRM at the top to view specific data. • In Steps you can see the current number of steps, calories, distance and active time. Swipe to view previous days’...
Page 25 Bluetooth must be turned on both on the Cardio Connect and on your device for this. Swipe to see previous days’ records. • In Settings, personalize your stride length, height and weight for more accurate data. • Set fitness goals: Steps, Distance, Calories or Minutes active.
Page 26: Technical Parameters
Technical Parameters. Waterprooof about 7 days (in Battery Life perdometer mode) Android 4.3 or higher Support APP IOS 7.0 or higher 142-194(L) x 21.68(W) Size x 11.9(H) mm Weight about 21g...
Page 27: Customer Support
IMPORTANT!! - Please retain your sales receipt, DKN Customer Care may request proof of purchase to validate eligibility for warranty service. Warranty cover starts from the date shown on the proof of purchase. The best way to contact us is via the website www.dkn-technology.com...
Page 28 www.dkn-technology.com...
