M101 Bluetooth Smart Lock - 170113
Find more information and help for your product at the following
O cial website: http://www.sciener.co
Please read this manual carefully before installation
●
Please contact us at +6016-8220059 for assistance with installation,
commission-ing, etc. that have not been listed in the user's installation manual.
●
The performance of this product is under continuous improvement, subject to
change without notice.
Anti-theft door lock

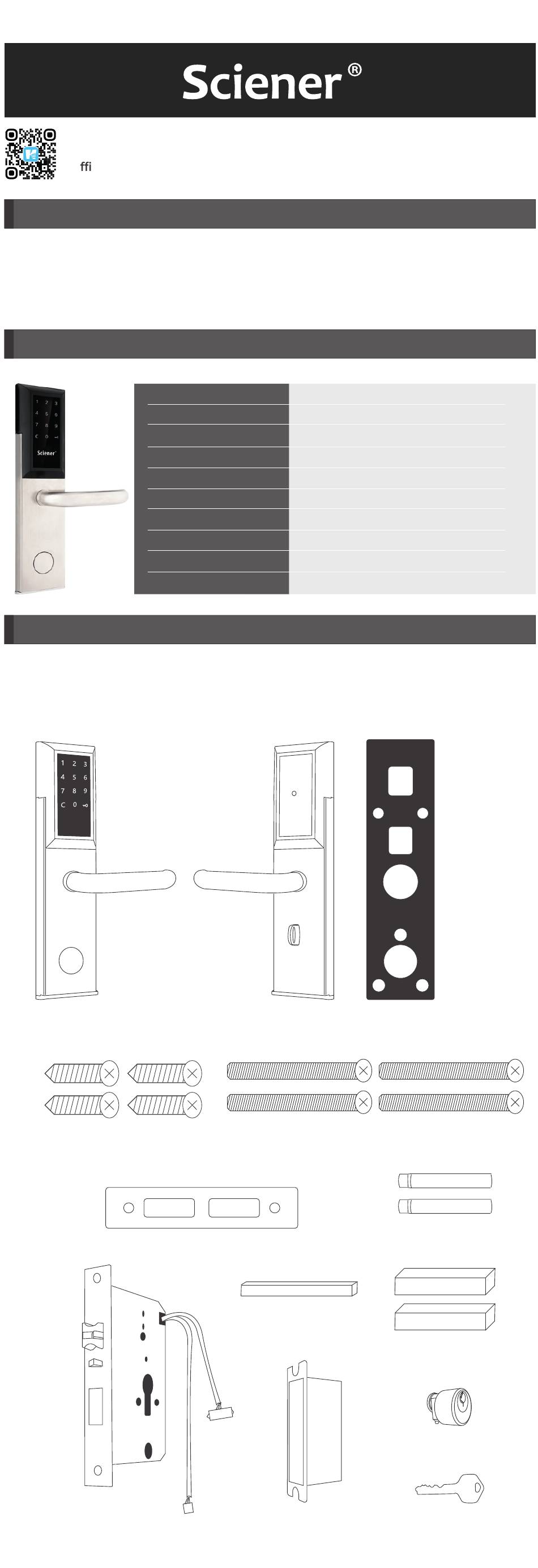

Product Installation and Parts List
●
Note: The door lock frame is greater than 110mm, and the door thickness can
be installed in the range of 35mm ~ 50mm.
Package list:
Front panel
Wood screws x 5
Standard electronic lock body
Model
Dimensions
Material
Weight
Communication Methods
Supporting systems
Stand-by current
Operating current
Power supply
Unlock time
Strike plate
thumbturn spindle
M101
W76mm x H310mm x T30mm
Shell stainless steel / lock body iron
2.4KG
(with lock body)
Bluetooth 4.0ble
Android 4.3 / iOS 7.0 above
≈20µA
≈200 mA
4 AA Alkaline 1.5V Batteries (LR6) (6V)
≈1.5 second
Back panel
55mm lock screw x 4
Strike box
Installation manual
Front & Back
rubber gasket
40mm screw sleeve
Spindle x 2
Lock body x 1
Key x 2
