Summary of Contents for Syris v300H

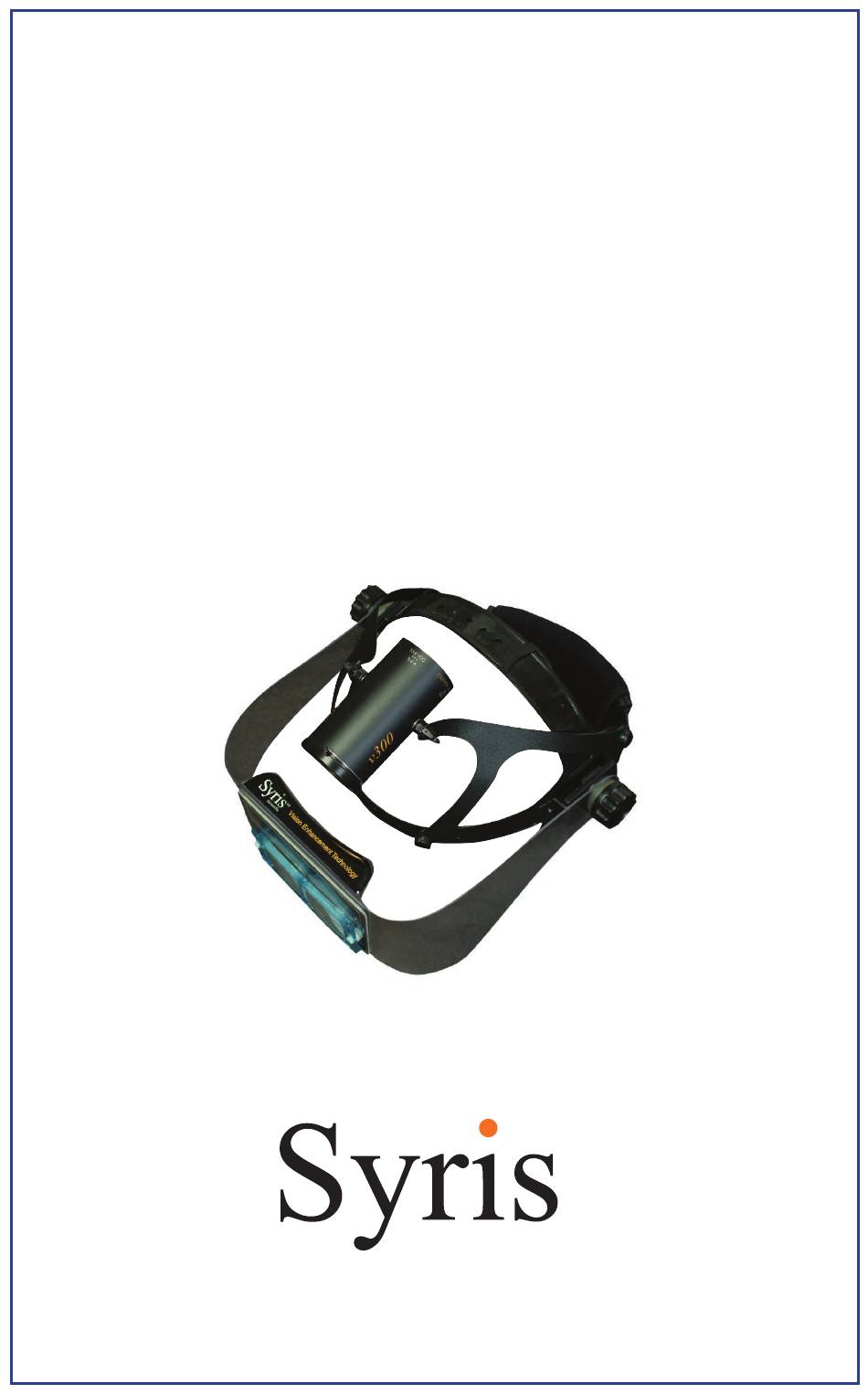

- Page 1 Visualization System Directions for Use Scientific...
- Page 2 Syris Scientific and v300H are trademarks of Syris Scientific LLC. All contents of this manual are the proprietary copyright property of Syris Scientific LLC and are subject to change at the discretion and without notification by the manufacturer. No parts of this manual may be copied, transmitted or disseminated to other parties without express written permission from the manufacturer.
-
Page 3: Table Of Contents
SETUP & USE OF DEVICE Unpacking & Iinspection v300H Component Parts Wearing the Device-Adjusting for Use Headbasket Adjustment Set-Up of Wiring System and Turning on The v300H on/off Product Operation Illuminator Replacement and Condition Indicator Headband Replacement MAINTENANCE & SUPPORT... -
Page 4: Introduction
Visi-Shield provides magnification and a clear field of view. Safety & Clinical WARNING: The v300H is for vision enhancement use by a qualified medical professional during dermal procedures. Read all Warnings, Cautionary Statements and Directions in their entirety before operating the v300H. - Page 5 Directions For Use v300H Caution, consult Keep dry accompanying documents Manufacturer Quantity Consult instructions for use Dispose of accordingly Allowable humidity range Fragile, handle with care Allowable temperature Temperature limitation range Power on/off MRI Unsafe DO NOT plug AC power...
-
Page 6: Patient And User Safety
To avoid the risk of electrical shock, inspect the control box, power supply and cables for damage before use. Do not use the v300H or accessories if damaged. Use only Syris supplied control box, cables, power supply and accessories. In the event of visible damage, do not use and contact Syris for replacement. -
Page 7: General Cautions
DO NOT use the system as a light to navigate your environment. DO NOT operate machinery, equipment or vehicles with the v300H positioned on the head and do not walk or climb stairs while wearing the v300H to avoid a tripping or falling accident. -
Page 8: Electrical Cautions
DO NOT allow any liquids to enter into any connectors or into the Illuminator Module. DO NOT immerse any component of the v300H (including control box, cables or power supply) in water or other liquids. Only use an approved, grounded outlet when using the Power Supply. -
Page 9: Setup & Use Of Device
Unpacking & Inspection Please ensure your v300H Vision Enhancement System includes all of the items listed below. Visually inspect all items for any damage. Contact Syris prior to use if any items are missing or appear to be damaged. Item... -
Page 10: V300H Component Parts
WARNING: To avoid the risk of electrical shock, inspect the control box, power supply and cables for damage before use. Do not use the v300H or accessories if damaged. Use only Syris supplied Control Box/Switch z4093-04, Power Supply z2077-00, cables and accessories. In the event of visible damage, do not use and contact Syris for replacement. -
Page 11: Headbasket Adjustment
DO NOT wear the v300H if you experience any strain in the neck, eyes or other areas. Place the v300H on the user’s head to check for fit. The head basket is adjusted by adjusting the head basket strap and rear adjustment knob. -
Page 12: Set-Up Of Wiring System And Turning On The V300H On/Off
Illuminator Module. Plug the “straight end” of the Upper DC Cable into the back of the Illuminator Module. Place the cord under the “Syris” velcro strip located at the rear of the headband to keep it in place. Plug the phone plug angled end of the Upper DC Cable into the “output” section located on the top of the Control Box/Switch. -
Page 13: Product Operation
To prevent shock to the Illuminator Module, the system is designed to gradually turn on the Illuminator over a five second period. To turn off the v300H Vision System, disconnect the AC Power Input Cable from the wall outlet. The plug of the specified power supply cord serves as the disconnect device. -
Page 14: Illuminator Replacement And Condition Indicator
Figure 6: v300H Sub-Surface / Surface Adjustments Illuminator Replacement As with any intense illumination source, the v300H Illuminator Module will wear out with use. Exacting tolerances and high output cooling of the Illuminator Module extends the expected life to 400+ hours under normal conditions. -
Page 15: Headband Replacement
400 hours, a pro-rated warranty will apply. v300H Illuminator Module Replacement 1. Turn off the v300H Visualization System and disconnect the AC Power Input Cable from the wall outlet. Disconnect the Upper DC Power Cable from the old Illuminator Module. -
Page 16: Maintenance & Support
Figure 7: Headband Pad locations Maintenance & Support The v300H does not require any periodic maintenance other than routine cleaning. There are no user serviceable components within the device. To obtain additional comfort Headband Pad sets, replacement parts or service, call Syris Scientific at 207-657-7050, Monday-Friday, 8:00 a.m. -
Page 17: Cleaning
The v300H head basket can be wiped down using any common non- abrasive chlorine or alcohol based cleaners found in a medical environment. The v300H is an optical instrument and the optical surfaces need to be kept clean for optimum image quality. -
Page 18: V900L Specifications
Directions For Use Syris Scientific v300H Specifications Headset weight <12 oz. Approx. system ship weight 6 pounds Working distance with #3 Lens 14 inches with #4 Lens 10 inches with #5 Lens 8 inches Power Supply Input Input: 100-250 VAC, 50-60HZ Output Output: 13.8 VDC, 3A maximum... -
Page 19: V900L, Parts And Accessories Ordering Information
WARNING: Use only Syris supplied control box, cables, power supply and accessories. In the event of visible damage, do not use and contact Syris for replacement. Use only Syris supplied Control Box/ Switch z4093-04, Power Supply z2077-00, cables and accessories. -
Page 20: Warranty
Syris Scientific Warranty Syris Scientific (Syris) warrants that the Equipment conforms to any specifications provided in writing by Syris to Customer for that Equipment, is of sound materials and workmanship, is new and unused, unless otherwise specified. Standard Warranty Standard Warranty Period. The Warranties with respect to any Equipment shall remain in effect for the following period of time after delivery of the Equipment to the Customer (the “Warranty Period”): (1) One year for the v300H. -
Page 21: Appendix A Immunity All Equipment And Systems
Level Conducted RF 3 Vrms (V1)Vrms EN/IEC 61000-4-6 150 kHz to 80 Portable and mobile communications equipment should be separated from the v300H by no less than the distances calculated/listed below: D=(3.5/V1)(Sqrt P) Radiated RF 3 V/m (E1)V/m D=(3.5/E1)(Sqrt P) EN/IEC 61000-4-3 80 MHz to 2.5... - Page 22 Syris Scientific Guidance and manufacturer’s declaration – electromagnetic emissions The v300H is intended for use in the electromagnetic environment specified below. The customer or the user of the v300H should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment –...
- Page 23 Directions For Use v300H NOTES...
- Page 24 Thank you for purchasing Syris Products! Syris Scientific, LLC 22 Shaker Rd. P.O. Box 127 Gray, Maine 04039 207.657.7050 TEL 207.657.7051 FAX WWW.SYRISSCIENTIFIC.COM Syris Doc # 9003 R02...
