Summary of Contents for Kidzpace Kidz Dance

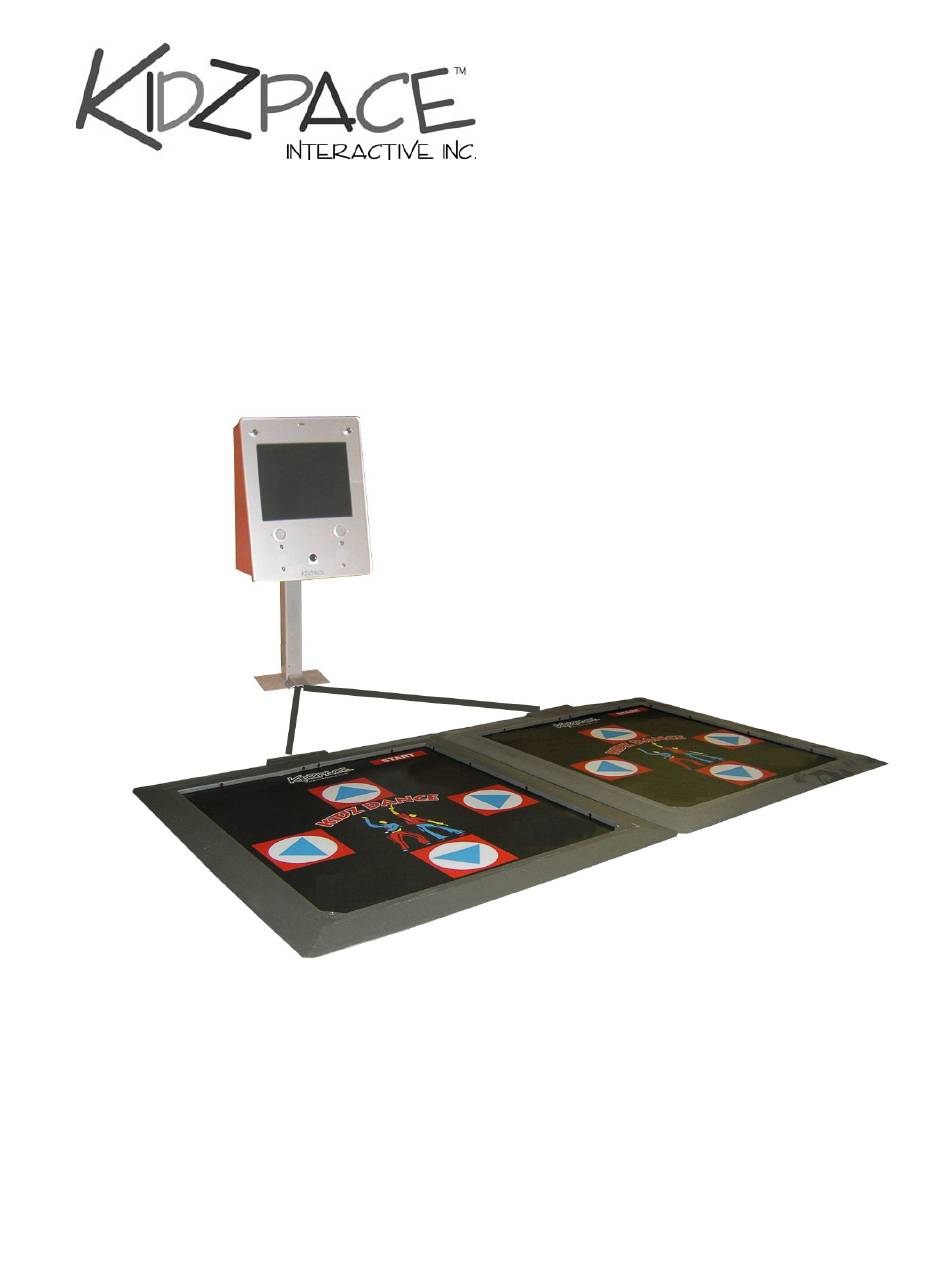

- Page 1 INTERACTIVE ENTERTAINMENT CENTER INSTALLATION INSTRUCTIONS Kidz Dance Pad Upgrade...
-
Page 2: Notice To Owner
Kidzpace Interactive Entertainment Center – Assembly Instructions NOTICE TO OWNER The owner must read all warning posted on the Dance Pad. The owner must read this manual and follow it carefully before using the Dance Pad. The owner must set up and operate the Dance Pad on a solid level surface. - Page 3 Kidzpace Interactive Entertainment Center – Assembly Instructions Kidz Dance Pad Upgrade Parts List • 2 X Decals with plastic underlay • 1 X Quick Start Brain box • 1 X Instruction Manual • 1 X Game (if needed) • 1 X Return Docs •...
- Page 4 Kidzpace Interactive Entertainment Center – Assembly Instructions Step 1: Remove the units from packaging. Check for any shipping damage prior to assembly. If there is any damage, call Kidzpace immediately at 1-800-668-0206. Remember you have 48 hours after delivery to report any damages.
- Page 5 Kidzpace Interactive Entertainment Center – Assembly Instructions Step 4: Unplug the two grey cables that are plugged in to the dance pad brain box. Also unplug the power cord from the brain box. You will need to reuse this power cord for your new brain box.
- Page 6 Kidzpace Interactive Entertainment Center – Assembly Instructions Step 7: Plug the grey cables coming from the dance pads into the new brain box. The pad on the left should be plugged in to the slot marked 1 and the pad on the right should be plugged onto the slot marked 2.
- Page 7 Kidzpace Interactive Entertainment Center – Assembly Instructions Step 10: Using a 5mm Allen wrench remove the two JCB receiver nuts (per pad) that secure the rear of the dance pad frames to the floor. Step 11: NOTE: 2 People required for this step.
- Page 8 Kidzpace Interactive Entertainment Center – Assembly Instructions Step 13: Place the decals underneath the dance pad frames (do not stick them to the floor at this point). Line up the holes in the bottom of the dance pads with the red circle stickers on the dance pad decals.
- Page 9 Kidzpace Interactive Entertainment Center – Assembly Instructions Step 16: With the holes drilled you can now secure the decals on the floor. When securing the decals to the floor make sure the holes in the decals line up with the holes you drilled in the floor.
- Page 10 Kidzpace Interactive Entertainment Center – Assembly Instructions Step 19: With the anchor bolts secured to the floor you can proceed to put the frames back on the floor. Make sure the nuts on the mounting plates are in line with the holes in your dance pad frame.
- Page 11 Kidzpace Interactive Entertainment Center – Assembly Instructions KIDZDANCE GENERAL MAINTENANCE INSTRUCTIONS: The dance pad should be regularly examined for damage. Check for any worn or loose components on a regular basis. KIDZDANCE CLEANING PROCEEDURES Units should be cleaned with a mild degreaser at least once a week. Once a month it is suggested the sensors on the inside of the frame be carefully cleaned with a mild degreaser and a Q-tip.
