Summary of Contents for Oosec OSE-201

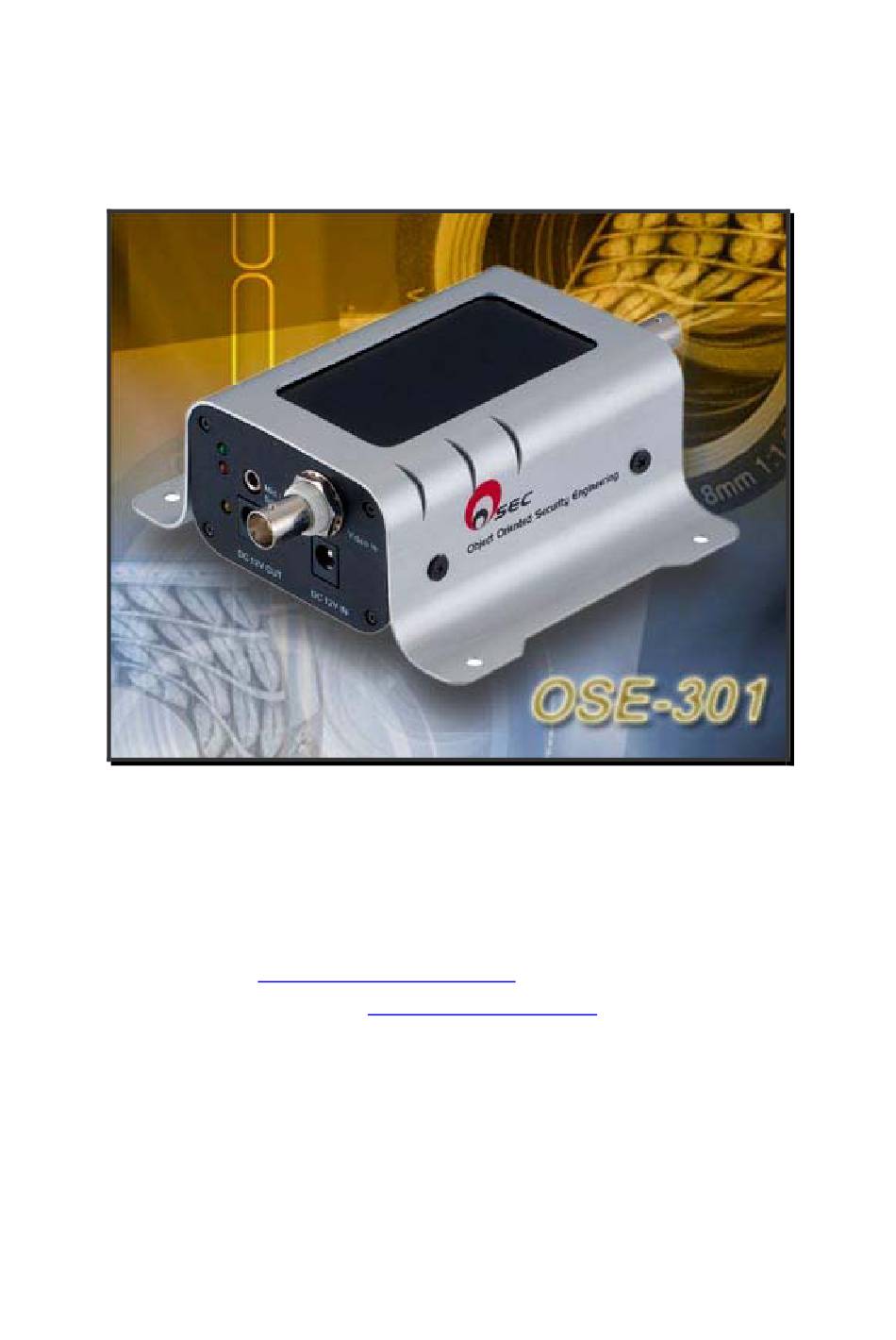

- Page 1 OSE-201/301 IE User’s Manual Product: OSE-201/301 Document: IE User’s Guide Published: August 01, 2006 Version: 1.10 Web: http://www.oosec.com Service Email: service@oosec.com Copyright © 2006 TWSAFE Corp., All rights reserved.
-
Page 2: Table Of Contents
1.5 Hardware Installation……..………………………………..…….9 2. IP Address Setup 2.1 Hardware Installation.…………………………………………..10 2.2 Network and Internet Connections...………………………..…..11 3. Network Security Setup 3.1 Security/Trusted Sites…………………………………………..14 4. OOSEC Browser 4.1 Login Authentication……………………………………………19 4.2 IE Main Page…………...……………………………………….21 4.3 Real-time Images Display………………………………………22 4.4 Pan-tilt-zoom Control Panel…………………………………….23 4.5 Configuration……………………………..…………………..25 4.5.1 System…………………………………………………….26... -
Page 3: Safety Warning
Safety Warning To reduce probable risk of fire or electronic shock, do not expose this product under rain or moisture environment. Remove power before unit installation. Please make sure powers of all devices have been unplugged before connecting to this product. Recommend using appropriate power adapter for product safety. -
Page 4: Fcc Class A Statement
FCC Class A Statement Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 5 Quick Installation Guide (QIG) The purpose of this QIG is to guide you to go through setup procedure of this system smoothly in order to view remote video images of video server on IE. Details of setup functions on IE Web pages and management software of multi-camera can be seen on User’s Manual.
-
Page 6: Product Brief Introduction
Browser without installing any additional software. OOSEC Brower offers user for remote video surveillance and control/setup this product via IE Browser. User can use OOSEC Brower to setup network protocols including IP address environment (DHCP, fixed IP, PPPoE, and DDNS). -
Page 7: System Reference Structure
System Reference Structure Required Additional Accessories CCD Camera & Accessories: camera, pan-tilt devices, housing, and bracket CCD camera*1 Alarm/Access control: DI/DO to connect urgent button, sensor, buzzer, system for security integration. Alarm (option) Coaxial cable: 5C2V (BNC connector) cable to connect CCD camera. 5C2V coaxial cable UTP cables: Prepare a parallel UTP cable with RJ45 connectors to connect... -
Page 8: Functions
Functions 1.3.1 A-side Product View 1. Login indicator: Green light-on indicates user is logging in. 2. System start-up indicator: Blink when system is on. 3. Power: Red light on when power is on. 4. Microphone/Speaker: Use attached audio cord to connect audio device. - Page 9 1.3.2 B-side Product View 1. Video Out: BNC output port for better camera images while installed on-site adjustment only. 2. 10/100 Ethernet: Connect to network by using standard RJ45 connector. 3. Default: Insert this button by using attached L-type wrench or end of thin paper clip to restore manufacturing default values.
- Page 10 Installation Step 1: Use 5C2V coaxial cable to connect CCD camera. Step 2: Connect Microphone/speaker. Step 3: Connect security devices into digital inputs/output. Step: Connect pan-tilt device into RS-485. Step 5: Use 5C2V coaxial cable to connect TV/monitor. Step 6: Connect camera DC-12V power into product with maximum power output 750mA.
- Page 11 Step 8: Plug-in powers of all optional connected devices. Step 9: Plug-in power of video server. Step 10: Confirm power indicator is on. Step 11: Confirm red-light system is quick blinking. Step 12: Start-up PC to start application software installation. Software Installation Start CD Software Installation Before Installation: Insert the CD attached in the package to CD-ROM...
- Page 12 Read Me & Intellectual Property Announcement: User needs to click “I accept the terms in the license agreement” to enter next step of setup procedure or the setup sequence will not proceed. Click proceed. Save-path: User defines save path of the execution file. Click to proceed.
- Page 13 Check: See details of setup are correct. Click to proceed. Installing: System is installing on your PC, please wait.
- Page 14 Installation Complete: System installation sequence is complete. Click to exit.
-
Page 15: Ip Address Setup
2. IP Address Setup User can write IP address onto video server can be set either by IP Installer or multi-port application software. Remark: Product default IP address is “192.168.1.99”. Default password is Mac address shown on the package and bottom of the video server. Please follow procedures listed below to change default values on personal computer Hardware connection Prepare a crossover UTP cable to directly connect with PC or a standard parallel UTP cable and... - Page 16 Click “Properties” to enter IP address setup. ▼ ▼Double click “Internet Protocol (TCP/IP) ▼Tick “Use the following IP address” then type IP (I):192.168.1.99, and for Subnet mask is 255.255.255.0...
-
Page 17: Network Security Setup
Click “OK” icon to finish network connections setup for user’s PC and video server are in the same subnet. User can setup IE security for remote view. Network Security Setup Security/Trusted Sites Setup When first time to login video server via Internet Explorer, user needs to do security adjustment to view video images. - Page 18 ▼ Click “Trusted Sites” and then click “Sites” to type wishful IP address for IP camera/video server to ensure IE browser will not block the IP address. ▼ Type wishful IP address for IP camera/video server and DO NOT click “Require server verification (https) for all sites in this zone.
- Page 19 ▼ Window shows IP address is typed. ▼ Type wishful IP address and Web site will show in the window, click “OK” button to save data.
- Page 20 4 Login IP Camera/Video Server User’s PC must be equipped with IE 6.0 or later version. 4.1 Login System ▼ After having typed correct IP address, system will pop-up a verification window that needs to type correctly to view real-time video images. Remark: Please type “root”...
-
Page 21: Ie Main Page
4.2 IE Main Page There are three major blocks on IE main page which include setup functions, real-time display, and pan-tilt-zoom control panel. 【Setup】: Device functions setup for this camera. 【Real-time Display】: This window includes real-time images, snapshot, microphone, speaker, DI, DO, and control buttons. - Page 22 4.2.1【Real-time Video Images】 1. System shows real-time video, and on-screen-display clock. : Click it to save selected picture onto your computer. : Click to activate or deactivate on-site microphone. : Click to activate or deactivate on-site speaker. : Click it to capture real-time video images on your computer. You need to assign wishful save-path onto your computer.
-
Page 23: Pan-Tilt-Zoom Control Panel
4.2.2 【Pan-tilt-zoom Control Panel】 If user installed pan-tilt device or speed dome camera and IE provides useful protocols, user can use this control panel to control pan-tilt-zoom functions. Down, Left, Right, Default location, Zoom-in, and Zoom-out Pan-tilt speed control Select pre-set location and click “Go” to view. Click to trigger device auto-pan. -
Page 24: System
4.3 【Setup】 Back to main video page Device system setup Video function setup Device network setup User’s account setup Pan-tilt-zoom setup Event triggered setup Email account setup Log inquiries 4.3.1 【System】 Time clock setup, synchronized with NTP, and default values reset. System Setup... -
Page 25: Video
Reset: Click to reboot system Default Setup: Click to return to default manufacturer’s values. Camera Name: Type wishful IE title System Time: Click to reset clock time on device. Current Time: Display current device time. Manual: Reset current time manually. Use PC Time: Click to synchronize current time with your computer. -
Page 26: Network
PAL：1,10, 15,and 25 【Brightness】Video brightness range from -10 - +10, default: 0 【Contrast】Video contrast range from -10 - +10, default: 0 【Saturation】Video saturation range from -10 - +10, default: 0 【Quality】Video quality range for “High”, “Medium”, and “Low” Click onto device (not permanently save) and click to save onto device. -
Page 27: User
『HTTP Port』: Default HTTP port is 80. 『Bit-stream port』: Default video stream is 5001 Manufacturer does not recommend user to change default value unless has sufficient knowledge of networking setup. You may contact your MIS or ISP provider for more details of network setup. Click and click “Submit”... - Page 28 【Delete User】: Delete user’s account. Click to save onto device. 【Current User List】: Display user account and his/her privilege. There are two levels of privilege can be setup for the user. Administrator: View and setup functions manipulate. User：IE browser real-time view only. 4.3.5【PTZ】...
-
Page 29: Event
“Define1 - 5” and “Title1 - 5” will be shown underneath PTZ control panel. “Perset 0 – 9” and “Goto 0 – 9”: It offers user for up to 10 different pre-set locations setup. 4.3.6【Event】 【DI/DO】 User defines “high volt” or “low volt” triggered signal for digital-input sensors for DI1 and DI2 ; defines “high volt”... -
Page 30: Email
【Alarm】 User can define sequence steps while event is triggered. These sequences include DO alarm, email (attached one snapshot per second). 【Event】 It defines how long will be to send event-triggered email. Click to save input data. 4.3.7【Email】 Email Setup 【Mail Server】: SMTP server account setup 【User Name】: User’s name account setup 【Password】: User’s password setup... -
Page 31: Log
address for user can logon to the camera. Click to save input data. 4.3.8【Log】 System offers user to review details of system operating records. -
Page 32: Appendix A Ddns Service
Appendix A DDNS Service How to use DDNS If user gets IP address from DHCP or dynamic IP address given from ISP provider of XDSL, DDNS account is required to view video images. There’re some websites offering free DDNS account, yet, some websites offer DDNS service with service charge. - Page 33 ▲ Type: ping TWSAFE.dyndns.org –t If system shows “Pinging TWSAFE.dyndns.org [220.132.206.9] with 32 bytes of data: Reply from 220.132.206.9: bytes=32 time=1ms TTL=255 It means DDNS has updated IP address successfully corresponding TWSAFE.dyndns.org = 220.132.206.9 If video server/IP camera reconnects to network, another new IP address will be assigned, please follow the II steps listed above again to correspond DDNS.
- Page 34 2. How to Apply DDNS Account ▼ http://www.dyndns.com/account/create.html offers free DDNS account. User can apply a free domain account from here. ▼ Acceptable Use Policy User applies account with no repeated account with others, for example, TWSAFE.tw Type personal data.
- Page 35 Click after completion. ▼ Account Completed...
- Page 36 ▼ User will receive a confirmation email from dnydns.org. User needs to click the address to confirm account. ▼ Account Confirmed Logon to http://www.dyndns.com/account/login.html click Login on the left. Type account and password and click...
- Page 37 http://www.dyndns.com/account/services/hosts/dyndns/ and click Hostname, then type wishful hostname (system will detect user’s IP automatically), and click Add Host Hostname Created When IP address changes, DDNS http://www.dyndns.org will handshake new IP address. User also can change IP...
- Page 38 address manually.
-
Page 39: Appendix B Intellectual Property Right
Appendix B Intellectual Property Right TRADEMARKS Oosec, a total subsidiary brand name under TWSAFE Inc., and TWSAFE are registered trademarks, and are used under license. All other trademarks are the property of their respective owners. COPYRIGHT TWSAFE Inc., ALL RIGHTS RESERVED. -
Page 40: Appendix C Limited Warranty
Appendix C Limited Warranty HARDWARE & SOFTWARE LIMITED WARRANTY TWSAFE CORP.. (TWSAFE), warrants to the original purchaser (“Purchaser”) i.e. distributor or reseller of an IP surveillance product (“Product”) that the Product will be free from flaws in material or workmanship for ONE year from the date of purchase. If a Product fails during the Warranty Period due to a defect in material or workmanship, TWSAFE as its sole responsibility and Purchaser’s sole and exclusive remedy will, at its opinion, either repair or replace the Product with the same or later version that performs substantially the same... - Page 41 Appendix D PAL/NTSC Country/Region List PAL: ABU DHABI, AFGHANISTAN, ALBANIA, ALGERIA, ANDORRA, ANGOLA, ARGENTINA, ASCENSION ISLAND, AUSTRALIA, AUSTRIA, AZORES, BAHRAIN, BANGLADESH, BELGIUM, BOSNIA HERZEGOVINIA, BOTSWANA, BRAZIL, BRUNEI, BRUNEI, CAMEROON, CANARY ISLANDS, CAPE VERDE, CAYMEN ISLANDS, CHINA, CHRISTMAS ISLAND, COOK ISLAND, CROATIA, CYPRUS, CYPRUS (TURKISH), CZECH REPUBLIC (CT1, CT2 & PRIMA), DENMARK, DUBAI, EASTER ISLAND, EGYPT, ERITREA, ETHIOPIA, FALKLAND ISLANDS, FAROE ISLANDS, FIJI, FINLAND, GAMBIA, GAZA &...
