CAB – Console Adapter Box
CAB's for use with attachable personal viewing Screens
from BVE, Life Fitness, Precor, Mye, Freemotion, Matrix,
Octane, Startrac and others operated from cardio
equipment console controls
The dynamic Broadcastvision Entertainment AXSCAB accommodates many
varied applications to allow console control of Personal Viewing Screens and
to facilitate operation of cable/satellite/IPTV set top boxes (STB). The CAB

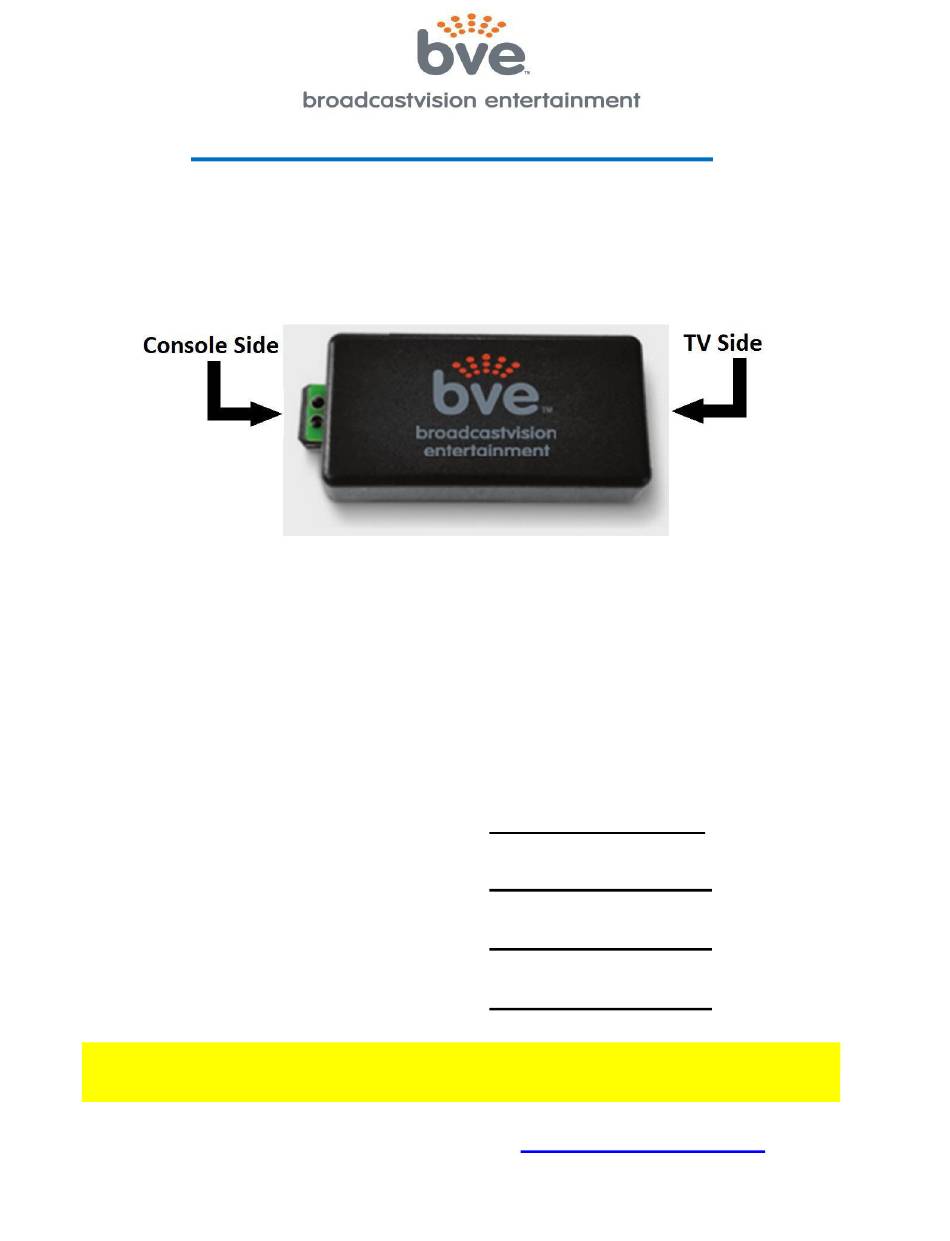

product should operate in a "plug-and-play" manner. Just note the side
labeled TV above and connect appropriately with the cable provided.
Your CAB is enabled for an application as follows:
Proposal Number:
Console Description:
PVS:
Set-top Box (if Applicable):
If your scenario differs from the information above please call BVE
customer service at 1(888)330-4283 ext.3 for additional support.
Online Service Manuals available at:
BroadcastVision Entertainment : www.broadcastvision.com
Tel (888) 330-4283, Email: support@broadcastvision.com
www.broadcastvision.com
Page 1
Advertisement
Summary of Contents for Broadcastvision Entertainment BVE CAB
- Page 1 BVE, Life Fitness, Precor, Mye, Freemotion, Matrix, Octane, Startrac and others operated from cardio equipment console controls The dynamic Broadcastvision Entertainment AXSCAB accommodates many varied applications to allow console control of Personal Viewing Screens and to facilitate operation of cable/satellite/IPTV set top boxes (STB). The CAB product should operate in a “plug-and-play”...
- Page 2 Because of this a 2’ flat cable extension is included with these Precor CAB’s to allow you to mount the CAB on the back of or inside the Precor console. BroadcastVision Entertainment : www.broadcastvision.com Tel (888) 330-4283, Email: support@broadcastvision.com Page 2...
- Page 3 IR eye is on the front of the STB, shining a flashlight at the front of the box will usually help you to see the IR eye. Please see the IR eye locations of some of the most common STB’s below: BroadcastVision Entertainment : www.broadcastvision.com Tel (888) 330-4283, Email: support@broadcastvision.com Page 3...
- Page 4 Once installed if the CAB does not work for any reason check the Troubleshooting Guide below or if necessary call technical support at 1(888)330- 4283 ext.3 before leaving the facility. BroadcastVision Entertainment : www.broadcastvision.com Tel (888) 330-4283, Email: support@broadcastvision.com Page 4...
- Page 5 Troubleshooting Guide: 1. Double button presses – Some set top boxes respond to more than one of the IR codes that we send out. If you notice that pressing a channel button on the console results in multiple presses, simply remove the 2 screws that hold the lid on the CAB and turn on dip switch 2 and 4.
- Page 6 e. No Continuity between CAB and IR emitter – In some circumstances utilizing the “Far” set top box scenario, the CAT5/6 cable between the set top box and the CAB may not provide full continuity through wall plates etc. It may be helpful to re-locate the STB at the base of the cardio and re-test.
-
Page 7: Wire Management
Treadmill leg “B” 3. Pull through AUXIR cable taped to pull tape and reinstall cap, secure CAB at screen, and adhere emitter on face of cable/satellite box “C” BroadcastVision Entertainment : www.b roadcastvision.com Tel (888) 330-4283, Email: support@br oadcastvision.com Page 5... - Page 8 Broadcastvision Entertainment Terms and Conditions BVE Stock Items Returned for Credit BVE manufactured products may only be returned for credit with written authorization from BVE within 30 days of the original invoice date. A 25% restocking fee will be charged for all returns. All products being returned to BVE require a Return Authorization number.
