Hanau Mate Instructions For Use

Plasterless articulator

I n s t r u c t i o n s f o r U s e

Table of Contents

Need help?

Do you have a question about the Mate and is the answer not in the manual?

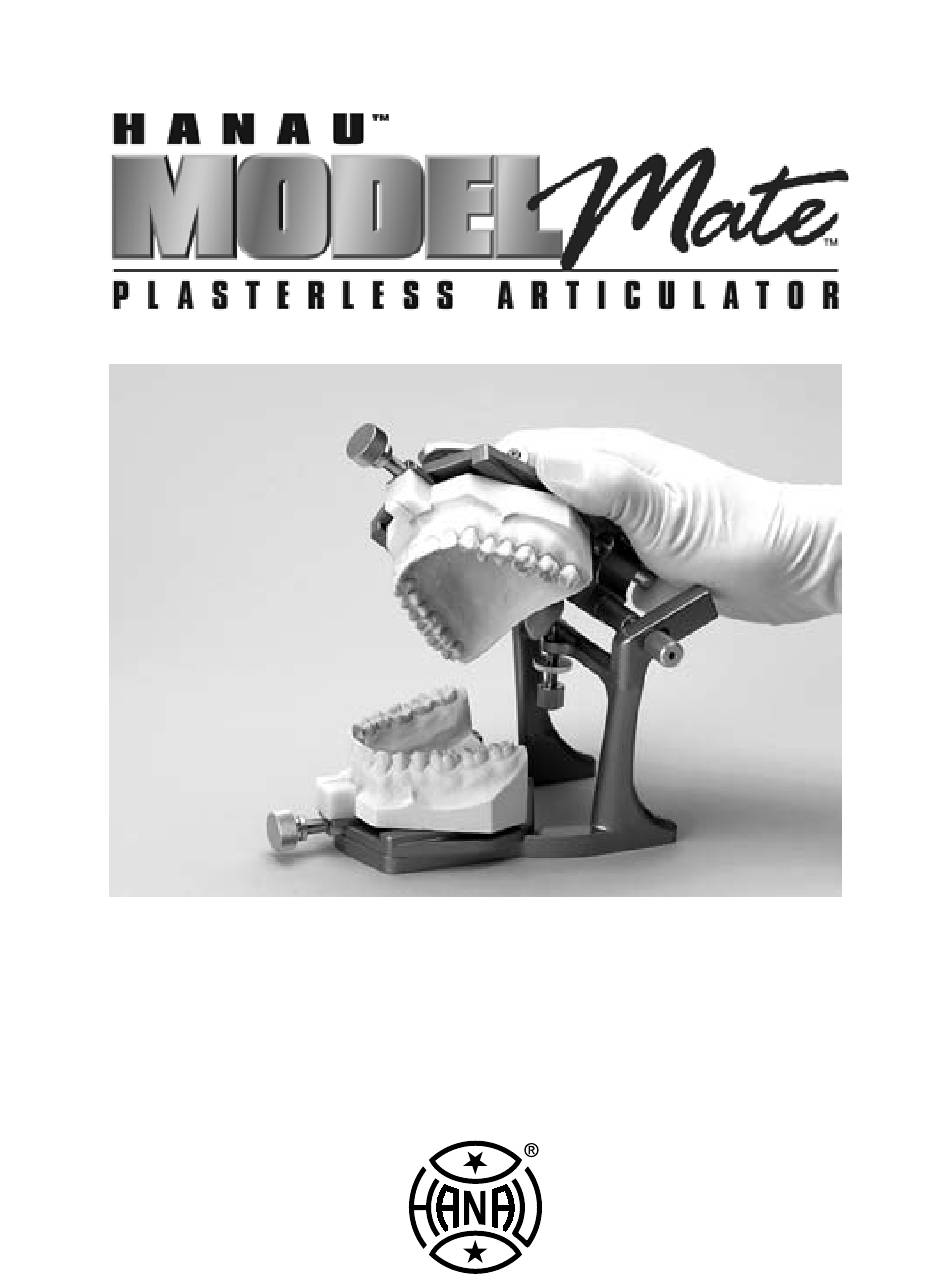

Page 1 I n s t r u c t i o n s f o r U s e...
Page 2 Overview of Hanau Model Mate ™ ™ Articulator Anterior/Posterior Anterior/Posterior slide bar adjustment knob Maxillary cast rotation lever Upper and lower attaching screws Midline Vertical indicator adjustment screw...
Page 3 Instructions A. Casts of the upper and lower dentition are prepared in your customary manner. B. Secure the lower model first. Loosen the lower attaching screw, insert the model, lining up the midline indicator with the dental midline, and tighten the screw. C. Follow the above instructions for the upper model. D. Loosen the anterior/posterior adjustment knob and flip the lever forward.
Page 4 1730 East Prospect Rd., Suite 101 Fort Collins, CO 80525 Toll-Free: 1-800-201-7286 Fax: 1-970-472-1793 www.whipmix.com Whip Mix and logos are registered trademarks and Hanau ® ™ and Model Mate are trademarks of Whip Mix Corporation ™ FN 20007486-F AC R0308...
