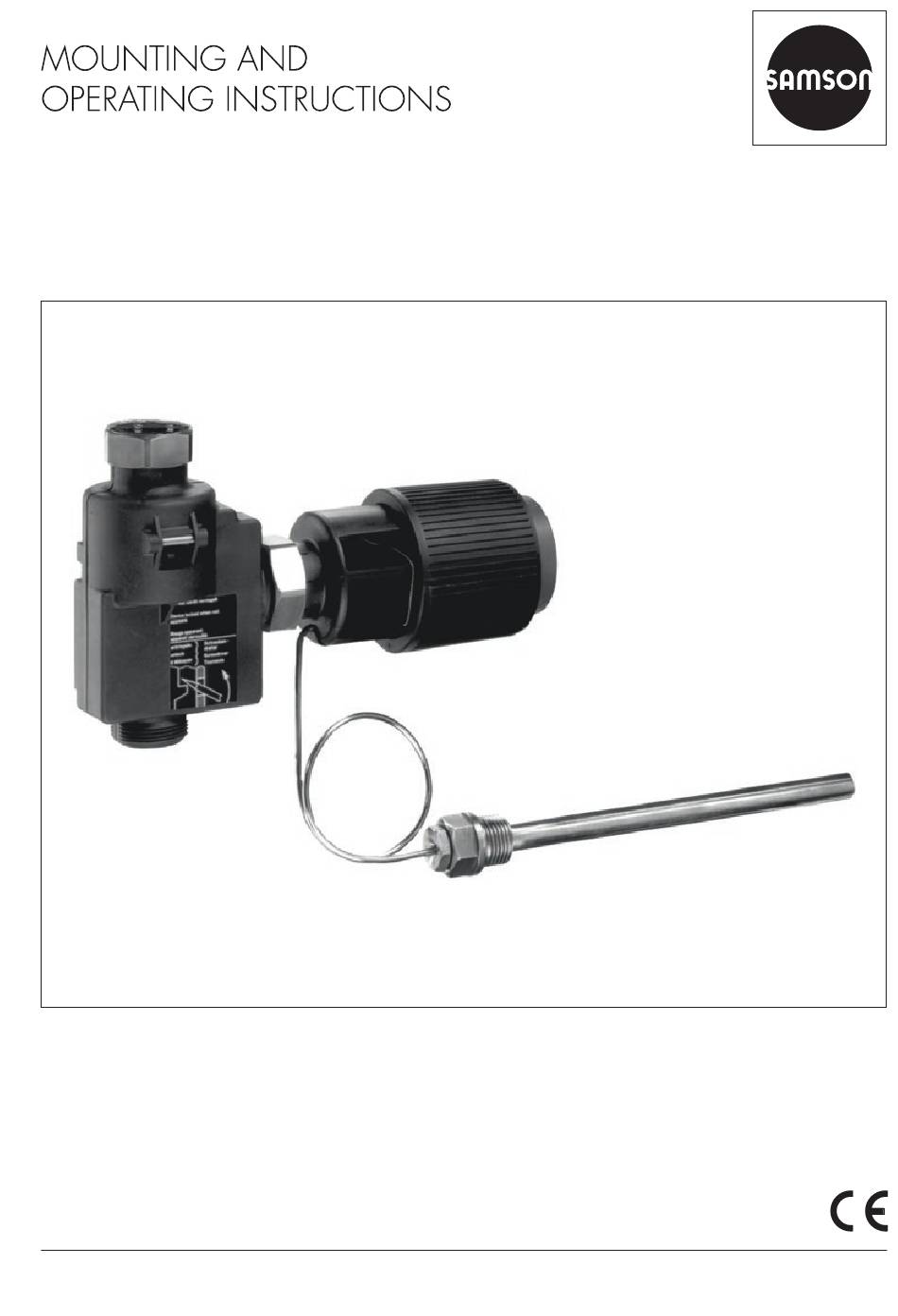

- Page 1 EB 2185 EN Translation of original instructions Type 2439 Safety Temperature Limiter (STL) Edition August 2018...
- Page 2 Î For the safe and proper use of these instructions, read them carefully and keep them for later reference. Î If you have any questions about these instructions, contact SAMSON‘s After-sales Service Department (aftersalesservice@samson.de). The mounting and operating instructions for the devices are included in the scope of delivery.
-
Page 3: Table Of Contents
Contents Safety instructions and measures ..............5 Notes on possible severe personal injury ............8 Notes on possible personal injury ..............8 Notes on possible property damage ..............9 Markings on the device ................11 Material number ..................11 Design and principle of operation ..............12 Technical data .....................14 Process medium and scope of application ............14 Measures for preparation ................22 Unpacking ....................22... - Page 4 Contents Appendix ....................35 After-sales service and spare parts ..............35 Tightening torques ..................35 9.3 Certificates ....................35 EB 2185 EN...
-
Page 5: Safety Instructions And Measures
In case operators intend to use the devices in other applications or condi- tions than specified, contact SAMSON. SAMSON does not assume any liability for damage resulting from the failure to use the de- vice for its intended purpose or for damage caused by external forces or any other external factors. - Page 6 Î Wear hearing protection when working near the valve. Î Check with the plant operator for details on further protective equipment. Revisions and other modifications Revisions, conversions or other modifications of the product are not authorized by SAMSON. They are performed at the user's own risk and may lead to safety hazards, for example. Fur- thermore, the product may no longer meet the requirements for its intended use.
- Page 7 Safety instructions and measures Referenced standards and regulations The devices comply with the requirements of the European Pressure Equipment Directive 2014/68/EU. Devices with a CE marking have an EU declaration of conformity, which in- cludes information about the applied conformity assessment procedure. This EU declaration of conformity is included in the Appendix of these instructions (see section 9.3). Non-electric valve versions whose bodies are not lined with an insulating material coating do not have their own potential ignition source according to the risk assessment stipulated in EN 13463-1: 2009, section 5.2, even in the rare incident of an operating fault. Therefore, such valve versions do not fall within the scope of Directive 2014/34/EU.
-
Page 8: Notes On Possible Severe Personal Injury
Safety instructions and measures 1.1 Notes on possible severe personal injury DANGER Risk of bursting in pressure equipment. Valves and pipelines are pressure equipment. Improper opening can lead to valve components bursting. Î Before starting any work on the valve, depressurize all plant sections concerned as well as the valve. Î Drain the process medium from all the plant sections concerned as well as the valve. -
Page 9: Notes On Possible Property Damage
Safety instructions and measures Damage to health relating to the REACH regulation. If a SAMSON device contains a substance which is listed as being a substance of very high concern on the candidate list of the REACH regulation, this circumstance is indi- cated on the SAMSON delivery note. - Page 10 Safety instructions and measures Risk of damage to the valve or safety temperature limiter due to excessively high or low tightening torques. The connection between valve and safety temperature limiter must be tightened with a certain tightening torque. Excessively tightened torques lead to parts wearing out quicker. Parts that are too loose may cause leakage.
-
Page 11: Markings On The Device
Markings on the device 2 Markings on the device Details on cap 2004 0062 1 Type 4 Limit value range in °C and °F 2 Configuration ID Register number (type test according to 3 CE marking DIN EN 14597) Specifications on Further information: the valve Valve Mounting and operating instructions Type 2431 for Type 43-1 u EB 2171 Type 2432 for Type 43-2... -
Page 12: Design And Principle Of Operation
Design and principle of operation 3 Design and principle of oper- Fail-safe position ation The spring mechanism in the operating ele- ment is released when the capillary tube See Fig. 2. breaks or when there is a leak in the sensor. The safety temperature limiter limits the tem- It moves the plug stem (4) with the plug (3) perature by closing and locking a valve con-... - Page 13 Design and principle of operation Valve 10 Capillary tube STL Type 2439 Safety Temperature Limiter 11 Scale Type 2430 Control Thermostat (optional) 12 Temperature sensor 13 Thermowell 1.1 Threaded ends or welding ends (optional) 15 Coupling nut Valve seat 16 Opening for indication/unlocking Plug 17 Screw fitting Plug stem 18 Packing Plug spring...
-
Page 14: Technical Data
Design and principle of operation 3.1 Technical data Dimensions and weights Fig. 3 provides a summary of the dimensions for the Type 2439 Safety Temperature Limiter 3.2 Process medium and scope and the Types 2431, 2432, 2433, 2435, of application 2436 and 2437 Valves. The lengths and heights in the dimensional drawings are Safety temperature monitoring of the energy shown on page 19 onwards. supply for heat generators or heat exchang-... - Page 15 Design and principle of operation Table 1: Technical data · Type 2439 Safety Temperature Limiter (STL) Type 2439 Safety Temperature Limiter Adjustment ranges of limit temperature 10 to 95 °C · 20 to 120 °C Permissible ambient temperature range at 80 °C · With electric signal transmitter 60 °C the limit value adjuster Permissible temperature at sensor 20 K above the adjusted limit Permissible pressure at the sensor with 40 bar...
- Page 16 Design and principle of operation Table 3: Female thread · Dimensions in mm and weights in kg · Type 2431/2439, Type 2433/2439, Type 2435/2439 and Type 2436/2439 Connection ½ ¾ ½ ¾ size Valve body CC499K 1.4408 · A351 CF8M Length Height H Type 2431/ 2439 Height H1 Height H Type 2433/...
- Page 17 Design and principle of operation Table 4: Male thread · Dimensions in mm · Type 2432/2439, Type 2433/2439, Type 2436/2439 and Type 2437/2439 Valve size Height H Type 2432/ 2439 Height H1 Height H Type 2433/ Height H2 2439 Height H3 Height H Type 2436/ – 2439 Height H1 Height H Type 2437/...
- Page 18 Type 2437/2439 Height H Valve body 1.4408 · A351 CF8M 2) Type 2432/2439 Height H – – Type 2436/2439 Height H With screwed-on flanges With flanged body Table 7: Flanges · Weights in kg · Type 2432/2439, Type 2433/2439, Type 2436/2439 and Type 2437/2439 Valve size Valve body EN-GJS-400-18-LT 11.6 Type 2432/ 2439 1.4408 · A351 CF8M – – Type 2433/ CC499K 10.9 13.7...
- Page 19 Design and principle of operation Table 8: Dimensions in mm · Weights in kg · Type 2439 and Type 2430 Type 2439 Safety Temperature Limiter · Type 2430 Control Thermostat Valve size G ½ to G 1 · DN 15 to 25 DN 32 to 50 Height H4 Length L5 Length B Type 2439 Length B1 G ½ M32x1.5 ØT...
- Page 20 With threaded ends With screwed-on flanges 2435/2439 2436/2439 2436/2439 2436/2439 Female thread Female thread With welding ends With threaded ends 2436/2439 2437/2439 2437/2439 2437/2439 Flanged body With welding ends With threaded ends Flanged body Fig. 3: Dimensional drawings for Type 2439 EB 2185 EN...
- Page 21 Design and principle of operation Dimensional drawings SW17 SW22 SW34 ØT ØT Type 2439 Safety Temperature Limiter Type 2430/2439 Control Thermostat with STL Fig. 3: Dimensional drawings for Type 2439 EB 2185 EN...
-
Page 22: Measures For Preparation
Report any damage to − Observe storage instructions. SAMSON and the forwarding agent − Avoid long storage times. (refer to delivery note). − Contact SAMSON in case of different stor- age conditions or long storage periods. 4.1 Unpacking Note Note... -
Page 23: Preparation For Installation
Mounting and start-up 5 Mounting and start-up SAMSON's After-sales Service department NOTICE NOTICE can provide more detailed storage instruc- tions on request. Risk of overheating due to excessive ambient temperatures or insufficient heat dissipation when components are insulated. 4.4 Preparation for installation Do not include the safety temperature limiter in the insulation of the pipeline. -
Page 24: Additional Fittings
(STL) into operation before mounting the A strainer installed upstream in the flow pipe valve and control thermostat. holds back any dirt or other foreign particles carried along by the medium. For example, the SAMSON Type 1 NI Strainer is suitable NOTICE (u T 1010). Risk of damage to the valve or safety tem- The following points must be observed... -
Page 25: Temperature Sensor And Capillary Tube
Mounting and start-up 5.3 Temperature sensor and − Seal the thermowell into the welding socket. capillary tube NOTICE NOTICE NOTICE NOTICE Galvanic corrosion due to incorrectly se- Risk of irreparable regulator damage lected materials of the mounting parts. caused by the regulator components being On installing the thermowell in the pipeline, taken apart. -
Page 26: Electric Signal Transmitter
Mounting and start-up 5.4 Electric signal transmitter 5.5 Start-up The safety temperature limiter can be deliv- WARNING ered with an electric signal transmitter (20) already fitted. The signal transmitter contains Risk of burn injuries due to hot or cold com- a microswitch (max. load 10 A, 125 V, ponents and pipelines. 250 V) which generates a signal if the tem- Depending on the process medium, valve perature limit is exceeded or if the sensor components and pipelines may get very hot... -
Page 27: Gases And Liquids
Operation 6 Operation NOTICE Risk of the valve being destroyed by steam See Fig. 2. hammering. 6.1 Adjusting the limit − Drain off any condensate in the pipeline. − Vent the plant. temperature Î Fill the plant very slowly with the process The safety temperature limiter is adjusted to medium on start-up. -
Page 28: Adjusting The Temperature Limit Without Using A Heating Bath
Operation 6.1.1 Adjusting the tempera- 6.1.2 Adjusting the tempera- ture limit without using ture limit using a a heating bath heating bath If another temperature limit is to be adjusted If the temperature limit of the safety tempera- without using a heating bath, turn the black ture limiter is to be adjusted precisely using a plastic ring according to the scale (see Ta- heating bath or a deviation in the limit value... - Page 29 Operation 8. When the safety temperature limiter has 13. When a Type 2430 Control Thermostat not been triggered: or double adapter is used, screw it onto the safety temperature limiter. Reduce the limit value by slowly turning (¼ turn at a time) the set point adjuster 14. Make sure the minimum temperature dif- (8) clockwise () until the safety tem- ference is observed for the TR/STL.
-
Page 30: Unlocking After A Fault
Operation 6.2 Unlocking after a fault 6.3 Sensor failure A red cam visible in the opening (16 in Indication of a defective sensor Fig. 2) indicates that the valve is locked. When the sensor is defective (e.g. a leak in After the fault has been remedied, a screw- the sensor system), a red cam becomes visi- driver is required to unlock the safety tem- ble in the opening (16) and the valve is... -
Page 31: Maintenance
The safety temperature limiter does not re- The safety temperature limiter was checked quire any maintenance. Nevertheless, it is by SAMSON before it left the factory. subject to natural wear, particularly at the − Certain test results certified by SAMSON soldered joints. -
Page 32: Preparation For Return Shipment
The malfunctions listed in Table 10 are caused by mechanical faults and incorrect Defective devices can be returned to regulator sizing. In the simplest case, the SAMSON for repair. Proceed as follows to functioning can be restored following the return devices to SAMSON: recommended action. Special tools may be 1. Put the device out of operation. See sec- required for repair work. - Page 33 Î Install the temperature sensor into the pipeline in Temperature sensor installed such a way that the heat flow is correctly in the wrong location. measured (avoid dead times). Î Replace damaged parts. Leak at the joint between the valve and safety temperature Seal is defective Î Contact SAMSON's After-sales Service depart- limiter. ment. EB 2185 EN...
-
Page 34: Decommissioning And Removal
Decommissioning and removal 8 Decommissioning and 8.1 Decommissioning removal To decommission the safety temperature lim- iter before removing it, proceed as follows: DANGER Steps 1 to 6 only apply when the thermow- Risk of bursting in pressure equipment. ell is also removed. Valves and pipelines are pressure equip- 1. - Page 35 You can reach the After-sales Service De- partment at aftersalesservice@samson.de. The EU declarations of conformity are in- cluded on the next pages. Addresses of SAMSON AG and its subsid- iaries The addresses of SAMSON, its subsidiaries, representatives and service facilities world- wide can be found on our website (u www.samson.de) or in all SAMSON...
- Page 36 Modul D/Module D, Nr./No. / N° CE-0062-PED-D-SAM 001-16-DEU-rev-A SAMSON erklärt in alleiniger Verantwortung für folgende Produkte:/For the following products, SAMSON hereby declares under its sole responsibility: Sicherheitstemperaturbegrenzer STB 2439 (2750-1) / Safety Temperature Limiter STL 2439 (2750-1) in Kombination mit Ventilen/combined with valves 2431, 2432, 2433, 2435, 2436, 2437, 2479, 2488 (2710, 2720, 2730) die Konformität mit nachfolgender Anforderung/the conformity with the following requirement.
- Page 37 Für das folgende Produkt / For the following product / Nous certifions que le produit Sicherheitstemperaturbegrenzer / Safety Temperatur Limiter / Limiteur de température de sécurité Typ/Type/Type 2439 wird die Konformität mit den einschlägigen Harmonisierungsrechtsvorschriften der Union bestätigt / the conformity with the relevant Union harmonisation legislation is declared with/ est conforme à...
- Page 38 The use as "components" as defined by Directive nition der Richtlinie 2014/34/EU wird ausdrücklich 2014/34/EU is explicitly prohibited. ausgeschlossen. Manufacturer's Declaration: V/HE-1233-1 DE-EN Changed on: 2016-05-11 Changed by: E37/pg/V74/tny/V73/sid SAMSON AKTIENGESELLSCHAFT · Weismuellerstrasse 3 · 60314 Frankfurt am Main, Germany · www.samson.de EB 2185 EN...
- Page 39 EB 2185 EN...
- Page 40 EB 2185 EN SAMSON AKTIENGESELLSCHAFT Weismüllerstraße 3 · 60314 Frankfurt am Main, Germany Phone: +49 69 4009-0 · Fax: +49 69 4009-1507 samson@samson.de · www.samson.de...
