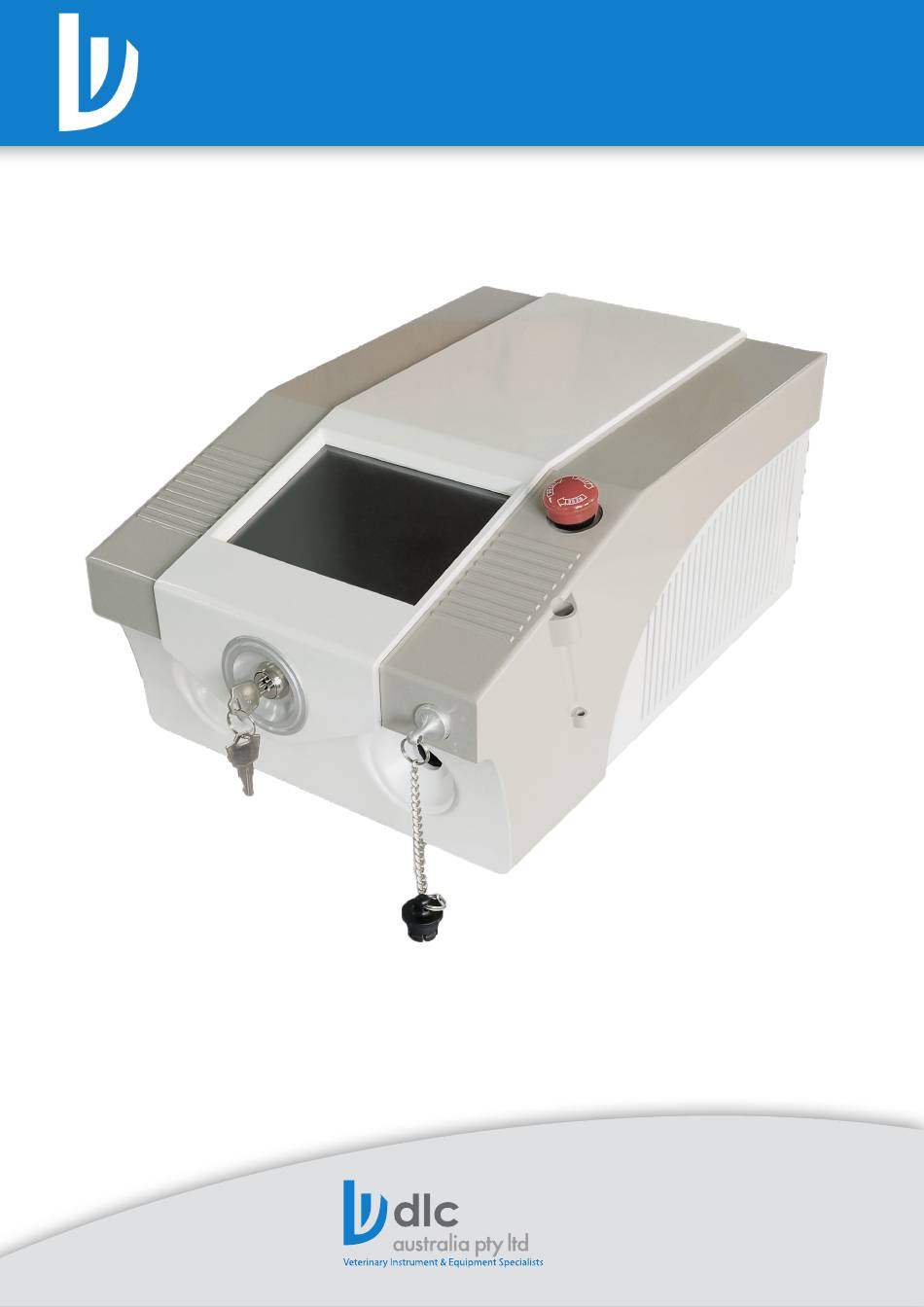

PD030 DIODE LASER MANUAL
30W Diode Laser Surgical System Manual
Please read the manual carefully before operating, and
keep this manual for future reference.
For further information please call
1300 785 401 - Northern Office
1300 785 405 - Southern Office
Email: sales@dlc.com.au
www.dlc.com.au
Model: PD030
www.dlc.com.au
DLC Australia Pty Ltd 1
DLC Australia Pty Ltd 1
www.dlc.com.au
Advertisement
Table of Contents
Summary of Contents for DLC PD030
-
Page 1: Diode Laser Surgical System
PD030 DIODE LASER MANUAL 30W Diode Laser Surgical System Manual Please read the manual carefully before operating, and keep this manual for future reference. For further information please call 1300 785 401 - Northern Office 1300 785 405 - Southern Office Email: sales@dlc.com.au... -
Page 2: Table Of Contents
PD030 DIODE LASER MANUAL Table of Contents 30W DIODE LASER SURGICAL SYSTEM..................Product Manual ..........................Table of contents..........................Safety Guidelines..........................Preface..............................1. Operation principle ........................1.1 Principle of diode laser surgical system..............1.2 System description......................1.3 Main cabinet......................... 1.3.1 Diode laser and aiming beam................ -
Page 3: Safety Guidelines
The information includes not only the accident protection regulations the products comply with, but also the effective precautions regarding proper use of the products. The safety regulations that PD030 series diode laser surgical system comply with can be grouped under 3 categories: 1. Electric safety regulation 2. -
Page 4: Preface
The PD030 surgical diode laser has two operation modes – continuous mode and repeat pulse mode. Optical fibers with diameter of 200,400,600,800,1000um can be used as its delivery system. -
Page 5: Operation Principle
PD030 DIODE LASER MANUAL 1. Operation Principle 1.1 Principle of diode laser surgical system 980nm diode laser is absorbed by hemoglobin and water, which cause cutting, vaporization coagulation and hemostatic effect on organization. It is not a hot-burning but a optical burning, this priorities point makes the surrounding tissues have minimal damage and can maintain a longer period of hemostatic effect, making patients safer during surgical procedures. -
Page 6: Power Meter
PD030 DIODE LASER MANUAL 1. Operation Principle continued. 1.3.4 Power meter Power meter supplies power calibration and real-time power monitor, which ensures excellent accuracy and safety. 1.3.5 Foot switch A footswitch is used to control laser output. When the footswitch is pressed, the power is on and laser emits from the diode module. -
Page 7: Pre-Startup Preparations
PD030 DIODE LASER MANUAL 3. Pre-Startup Preparations 3.1 Unpacking and inspection After unpacking, please check to ensure that the instrument is not seriously damaged, circuit lines are well connected and accessories are available (see accessories list) Checking power voltage Ensure that the power voltage complies with the requirement of the instrument. Socket is in working order. -
Page 8: Operation Instruction
PD030 DIODE LASER MANUAL 4. Operation Instructions 4.1 Power ON Connect footswitch, controller and power cord to the machine. Turn on the power switch at the backside, then wait for 30 seconds. Insert the key into the key switch, turn clockwise to power on. The logo (as shown in figure 1) will be displayed for 3 seconds, then switches to user interface. -
Page 9: Self-Detecting
PD030 DIODE LASER MANUAL 4. Operation Instructions continued. 4.2 Self-Detecting When the machine is switched on, only wavelength and notice area are activated, the other functions are locked(shown in gray). Please watch and follow the information shown in the notice area. -
Page 10: Change Status And Emit
PD030 DIODE LASER MANUAL 4. Operation Instructions continued. Time Parameter Area c. Output time setting There three ways of output: Free output: The laser emits when footswitch is pressed, it is also called real-time output. Pre-set pulse amount: Input the amount of pulses need to output. When the footswitch is pressed, the laser emits pulse of the amount you set. -
Page 11: Automatic Calibration
PD030 DIODE LASER MANUAL 4. Operation Instructions continued. 4.5 Automatic Calibration When the power is set up, user can calibrate the output power: Set up the power, then insert the fiber pen into the power meter hole, the system would change to auto calibration interface. -
Page 12: Fiber Cutting
PD030 DIODE LASER MANUAL 5. Fiber Cutting Dirty, over-bend, or cut improperly can cause fiber get burned, then the fiber need to be re-cut. Steps of cutting fiber: Insert SMA905 into the hole, take the fiber out of the fiber pen. -
Page 13: Precautions
PD030 DIODE LASER MANUAL 7. Precautions Never let the laser beam be directed to human eyes or healthy skin. To prevent human eyes or skin from being hurt by the reflection of laser light, never allow the laser beam, be directed to any smooth reflective surface, such as stainless steel device surface, mirror surface, etc. -
Page 14: Maintenance
PD030 DIODE LASER MANUAL 8. Maintenance The instrument generates high voltages within power supply. Refer to professional personnel for maintenance to avoid electric shock. 8.1 Cabinet cleaning If there is dirt on the cabinet, wipe gently with moistened cotton cloth and some detergent or toothpaste. -
Page 15: Accessories
PD030 DIODE LASER MANUAL 9. Accessories Fiber(400um) Fiber pen Power cord Footswitch Controller Interlock key Fiber stripper Fiber scissors 10. Technical Specifications Working Modes Continuous, Repeat pulse Output Power 0~30W adjustable Laser Type Diode laser Wavelength 980nm Duty Time 0.01~1s Idle Time 0.01~1s... -
Page 16: Warranty & Service
PD030 DIODE LASER MANUAL 11. Warranty and Service The instrument is a well designed, user friendly laser surgical system with high quality. It performs perfectly under normal use and maintenance. Within a year from the date of purchasing, any damage caused by manufacturing or components defects can enjoy free repairing service. -
Page 17: Label Explanations
PD030 DIODE LASER MANUAL 13. Label Explanations No. Symbol Definition Warning and explanation label Warning label - Hazard symbol Emergency stop switch Position “1” is power “ON” (power: connection to the mains) Position “0” is power “OFF” (power disconnection from the mains) - Page 18 Southern Office: Ph: 03 9360 9700 · Fax: 03 9360 9444 · Toll Free: 1300 785 405 · Email: info@dlc.com.au PO Box 4438, 17-19 Horne Street, Hoppers Crossing, VIC, 3029 Northern Office: Ph: 07 5428 3666 · Fax: 07 5428 3777 · Toll Free: 1300 785 401 · Email: qld@dlc.com.au PO Box 833, Unit 6/1 Lear-Jet Drive, Caboolture, QLD, 4510 www.dlc.com.au ·...
