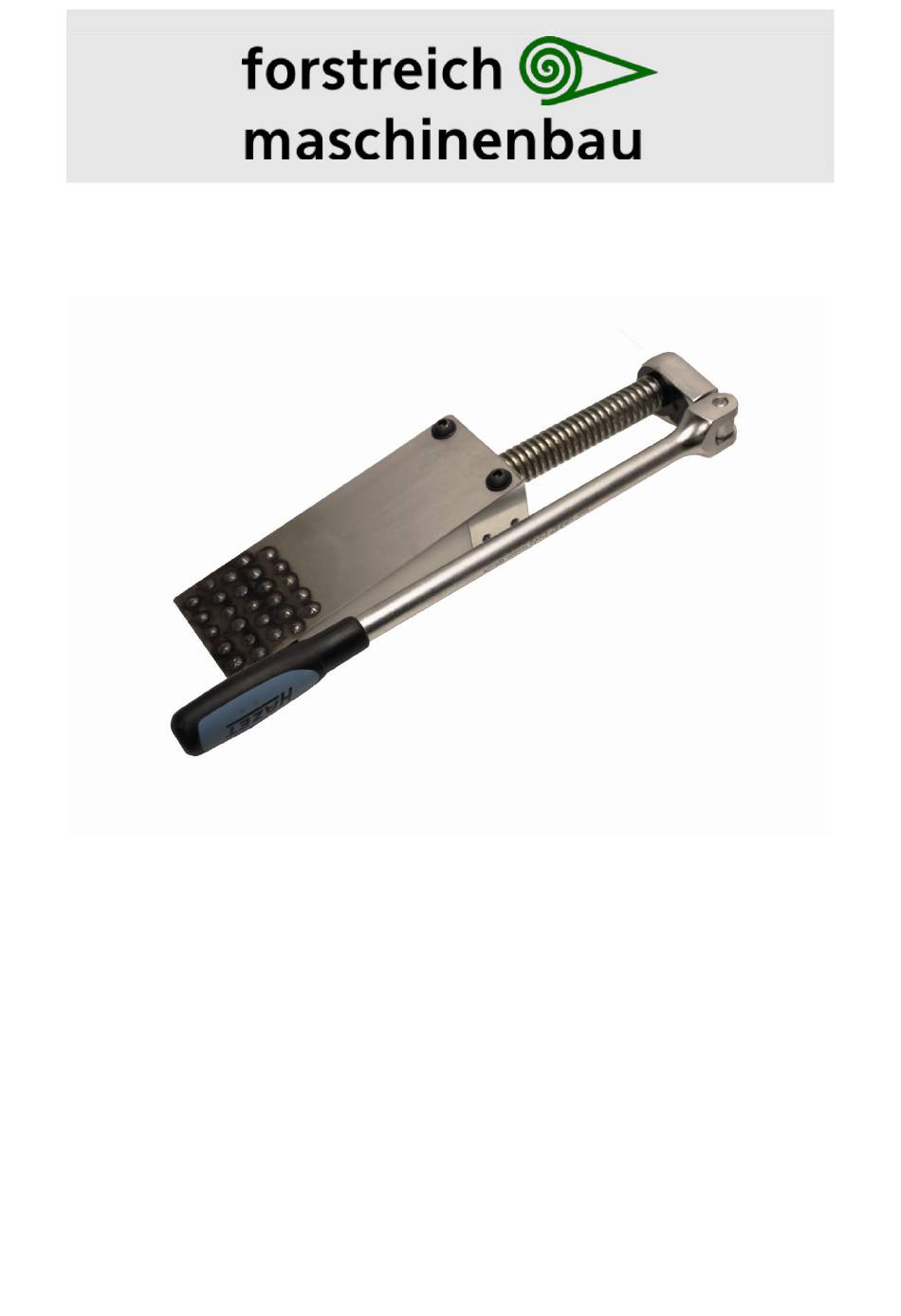

Operating Instructions
Felling Wedge TR 24
Content
1 Technical Data ...................................................................................................................... 1
2 Area of Application - Designated Use .................................................................................. 1
3 Safety Instructions ................................................................................................................ 2
4 Warranty ............................................................................................................................... 2
5 Application ............................................................................................................................ 3
6 Maintenance/Testing ........................................................................................................... 4
7 Tips ........................................................................................................................................ 4
8 Exploded View ...................................................................................................................... 5
9 EC Declaration of Conformity ............................................................................................... 6
Advertisement
Table of Contents
Summary of Contents for forstreich maschinebau TR 24
-
Page 1: Operating Instructions
Operating Instructions Felling Wedge TR 24 Content 1 Technical Data ........................1 2 Area of Application – Designated Use .................. 1 3 Safety Instructions ........................ 2 4 Warranty ..........................2 5 Application ..........................3 6 Maintenance/Testing ......................4 7 Tips ............................4 8 Exploded View ........................ -
Page 2: Technical Data
1 Technical Data Designation Mechanical Felling Wedge TR24 max compressive force (t) mass (kg) length (mm) width (mm) height (mm) stroke/revolution (mm) max torque (Nm) 80 Nm 2 Area of Application – Designated Use The mechanical felling wedge TR24 is used in logging as a replacement for strenuous wedge work or as an alternative to the hydraulic felling wedge. -
Page 3: Safety Instructions
3 Safety Instructions Danger: Failure to follow instructions may result in severe injuries or even death! Always work with normal plastic or aluminum wedges for support. Make sure to keep feeding in the wedges when operating the mechanical felling wedge. ... -
Page 4: Application
5 Application Felling: Set the supplied flexible head ratchet to a right rotation. The wedge can be driven in until the threading on the outside is no longer visible and the telescopic ratchet touches the nut. Wedge retrieval: Set the supplied flexible head ratchet to a left rotation. Wind the wedge back until it touches the nut. -
Page 5: Maintenance/Testing
6 Maintenance/Testing Please observe the maintenance instructions: The mechanical felling wedge TR24 must undergo a visual inspection for damages before each use. Make sure that the threaded spindle/nut is sufficiently lubricated before each use. Lubricate the threaded spindle/nut at the grease nipple provided for this purpose and rotate the spindle once both ways. -
Page 6: Exploded View
8 Exploded View... -
Page 7: Ec Declaration Of Conformity
9 EC Declaration of Conformity Manufacturer: Forstreich-Maschinenbau Prop. Stefan Reichenbach Schwarzwaldstr.314 79117 Freiburg Phone: +49(0)151/11030401 hereby declares that the following product: Product description: mechanical felling wedge TR24 Year of manufacture: as of 05/2019 complies will all the relevant regulations of the Machinery Directive (2006/42/EC). The following harmonized standards apply: EN ISO 12100 Safety of machinery –... - Page 8 As of 05/19 Subject to technical changes...
