Summary of Contents for Santint V100

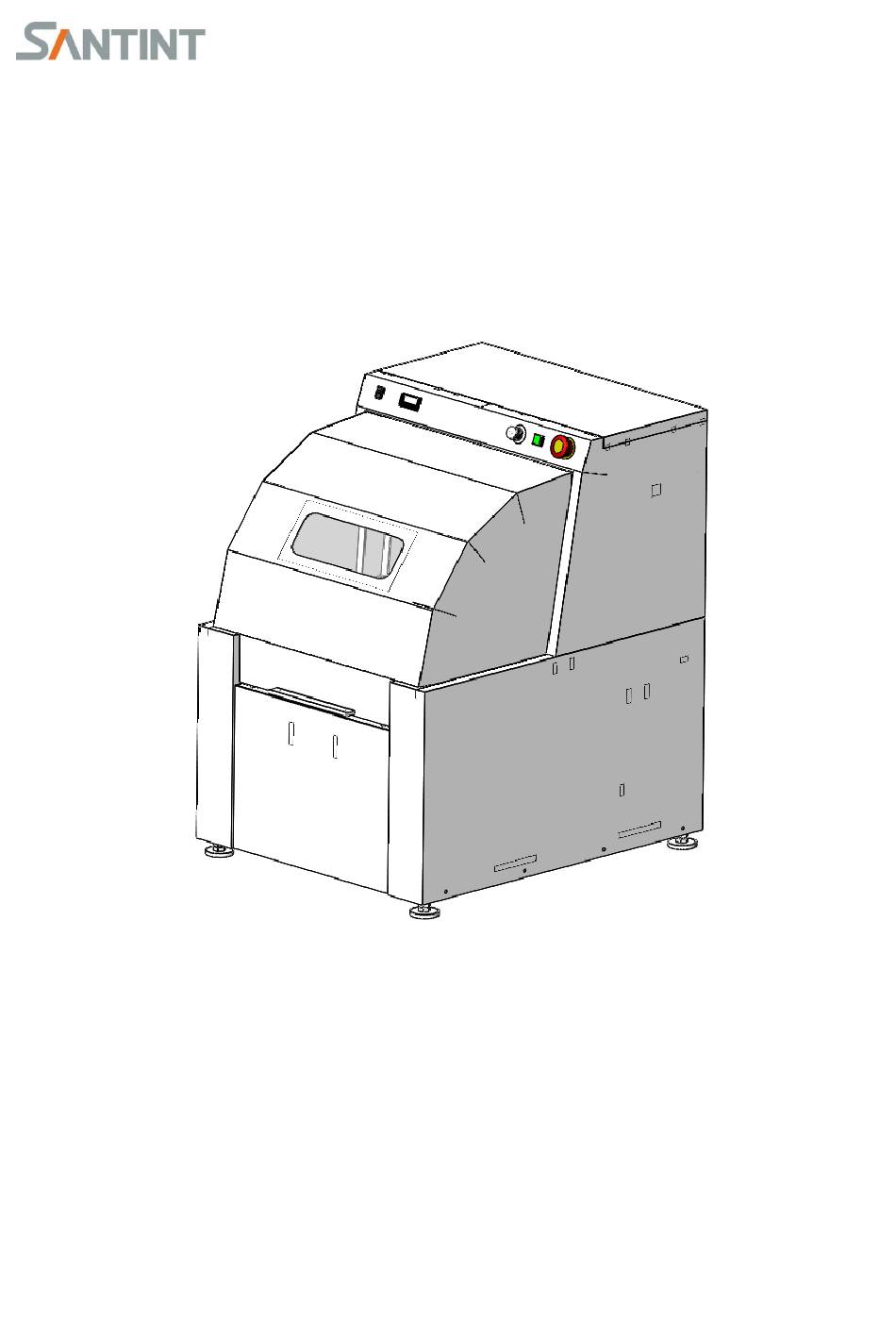

- Page 1 V100 Mixer User Manual Read This Manual Carefully Before Use.
-
Page 2: Table Of Contents
Contents 1. Technical Features & Data………………………………………………..………………………1 2. Safety Instructions……………………………………………………………………...…………1 3. Mixer Components…………………………………………………………………………..……2 4. Installation…………………………………………………………………...……………………3 5. Operation………………………………………………………………………………………….4 6. Troubleshooting …………………………………………………………………………………..6 7. Nameplate…………………………………………………………………………………………7 8. Circuit Diagram…………………………………………………………..……………………….8... -
Page 3: Technical Features & Data
2.10 Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. 2.11 Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is Santint V100 Mixer V2.0 - 1 -... -
Page 4: Mixer Components
Danger of Electric Shock！Disconnect the power supply prior to maintenance and/or cleaning. Important information！Read it carefully. 3. Mixer Components Counter Switch Mixing Time Button Rotary Door Start/Stop Button Upper Platen Emergency Stop Shell Santint V100 Mixer V2.0 - 2 -... -
Page 5: Installation
Notice: remove the fixing plate for transportation before starting the machine. Fasten the fixing plate back before any relocation/transportation of the machine. Santint V100 Mixer V2.0 - 3 -... -
Page 6: Operation
1). Connect the power supply, start the machine, push the handle to status 1. Then the upper platen shall be moved. Guiding Axle Platen Figure a： （ 1: Unlock 2: Free 3: Clamped） Santint V100 Mixer V2.0 - 4 -... - Page 7 (Shown as Figure b). 3). Make sure the handle is clasped by the jump ring（Shown as Figure b） 4). V100 will automatically stop if the mixing goes well. If there is any issue or abnormal noise, press down the emergency stop button immediately.
-
Page 8: Troubleshooting
Replace it. Extreme vibration 1.Mixer is not leveled. Adjust the feet and level the mixer. and/or abnormal 2.Paint can is not centered or evenly Adjust it. positioned. noise.（V100 stops 3.Overloading. Decrease the loading. mixing） Santint V100 Mixer V2.0 - 6 -... -
Page 9: Nameplate
7. Nameplate Santint V2.0 V100 Mixer - 7 -... -
Page 10: Circuit Diagram
Circuit Diagram Santint V2.0 V100 Mixer - 8 -... - Page 11 ZHENGZHOU SANHUA TECHNOLOGY & INDUSTRY CO. LTD. ADD: Feilong Road, Zheng zhou Xingyang Industries Convergent Areas. Zhengzhou City, Henan Province. PR. China. 450042 TEL：(86) 371-67857168 After-Service：(86) 371-67857319 FAX：(86) 371-67857166 WEB：http://www.santint.com E-mail:info@santint.com Santint V2.0 V100 Mixer - 9 -...
