Protekt AZ 900 Instruction Manual

,
a full body harness is the only acceptable body holding device that can be used in a fall arrest system.
!
the anchor device or anchor point for the fall arrest system should always be positioned, and the work carried out in such a way, as to minimise both the potential for falls and potential fall distance. The anchor
!
device/point should be placed above the position of the user . The shape and construction of the anchor device/point shall not allowed to self-acting disconnection of the equipment. Minimal static strength of the
anchor device/point is 15 kN. It is recommended to use certified and marked structural anchor point complied with EN795.
it is obligatory to verify the free space required beneath the user at the workplace before each occasion of use the fall arrest system, so that, in the case of a fall, there will be no collision with the ground or other
!
obstacle in the fall path. The required value of the free space should be taken from instruction manual of used equipment.
there are many hazards that may affect the performance of the equipment and corresponding safety precautions that have to be observed during equipment utilization, especially:
!
- trailing or looping of lanyards or lifelines over sharp edges,
- any defects like cutting, abrasion, corrosion,
- climatic exposure,
- pendulum falls,
- extremes of temperature,
- chemical reagents,
- electrical conductivity.
personal protective equipment must be transported in the package (e.g.: bag made of moisture-proof textile or foil bag or cases made of steel or plastic) to protect it against damage or moisture.
!
! the equipment can be cleaned without causing adverse effect on the materials in the manufacture of the equipment. For textile products use mild detergents for delicate fabrics, wash by hand or in a machine and
rinse in water. Plastic parts can be cleaned only with water. When the equipment becomes wet, either from being in use or when due cleaning, it shall be allowed to dry naturally, and shall be kept away from direct
heat. In metallic products some mechanic parts (spring, pin, hinge, etc.) can be regularly slightly lubricated to ensure better operation.
Other maintenance and cleaning procedures should be adhered to detailed instructions stated in the manual of the equipment.
personal protective equipment should be stored loosely packed, in a well-ventilated place, protected from direct light, ultraviolet degradation, damp environment, sharp edges, extreme temperatures and corrosive or
!
aggressive substances.
IT IS THE RESPONSIBILITY OF THE USER ORGANISATION TO PROVIDE THE IDENTITY CARD AND TO FILL IN THE DETAILS REQUIRED.
THE IDENTITY CARD SHOULD BE FILLED IN BEFORE THE FIRST USE BY A COMPETENT PERSON, RESPONSIBLE INTHE USER ORGANIZATION FOR PROTECTIVE EQUIPMENT.
ANY INFORMATION ABOUT THE EQUIPMENT LIKE PERIODIC INSPECTIONS, REPAIRS, REASONS OF EQUIPMENT'S WITHDRAWN FROM USE SHALL BE NOTED INTO THE IDENTITY CARD BY A COMPETENT PERSON.
THE IDENTITY CARD SHOULD BE STORAGED DURING A WHOLE PERIOD OF EQUIPMENT UTILIZATION.
DO NOT USE THE EQUIPMENT WITHOUT THE IDENTITY CARD.
ALL RECORDS IN THE IDENTITY CARD CAN BE FILLED IN ONLY BY A COMPETENT PERSON.

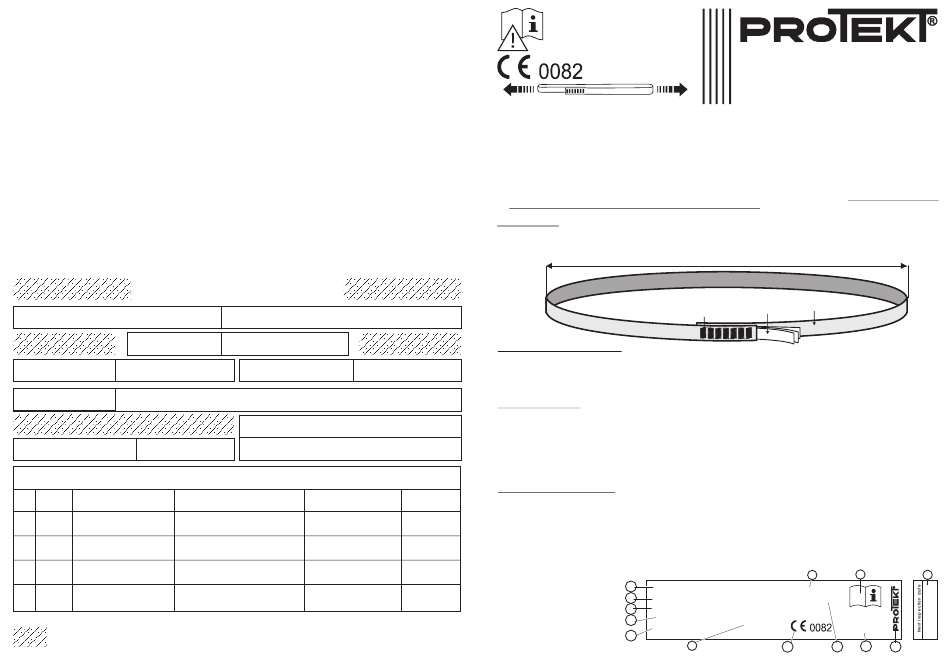

IDENTITY CARD

MODEL AND TYPE OF EQUIPMENT
REF. NUMBER
SERIAL NUMBER
USER NAME
DATE OF PURCHASE

PERIODIC EXAMINATION AND REPAIR HISTORY

REASON FOR
DATE
ENTRY PERIODIC EXAMINATION
OR REPAIR AND OTHER REVELANT INFORMATIONS
1
2
3
4
POLAND
tel: (+48 42) 680 20 83
93-403 Lodz
fax: (+48 42) 680 20 93
ul. Starorudzka 9
e-mail: protekt@protekt.com.pl
DATE OF MANUF.
DATE OF PUTTING INTO OPERATION
DEFECTS NOTED, NAME AND SIGNATURE
REPAIRS CARRIED OUT OF COMPETENT PERSON
Notified body, at which the European certification
was performed and which supervises
the production of the equipment:
APAVE SUDEUROPE SAS - CS 60193 - 13322 MARSEILLE CEDEX 16 - FRANCE
Instruction Manual
READ CAREFULLY BEFORE USE
THE EQUIPMENT
EN 795:2012 Type B
EN 354:2010
EN 566:2006
22 kN
Webbing Sling Connector is a component of personal protective equipment against falls from a height and conforms to EN 354:2010, EN 795:2012/B, also conform
standard EN 566:2006 Mountaineering equipment. Webbing Sling Connector is for the use of one person only..
WARNING: Any activities at height, like climbing, work or rescue actions are considered dangerous and may result in serious injuries or even death. The person using this
equipment is responsible for any possible damage or consequences of an accident. If you do not agree to accept responsibility for such risks, you should not use this product.
Webbing Sling C onnector should only be used for personal fall protection equipment and NOT FOR LIFTING EQUIPMENT. AZ900 can be use as:
anchorage device - a component of personal fall arrest equipment which is used to connect fall arrest devices to the structural anchor point.
!
or
lanyard - a component of personal fall arrest equipment in conjuction with energy absorber. Fall arrest system consisting of energy absorber (complies with EN
!
355) connected to Webbing Sling Connector.
structural anchor point (complied with EN 795) can be used as a basic personal protective equipment against falls from a height. T
with a lanyard including an energy absorber, terminations and connectors shall not exceed 2 m.
BASIC EQUIPMENT
Webbing Sling Connector is made of 21 mm width polyester webbing. Webbing endings are sewn forming a closed sling.
AZ900's length is from 20 cm to 200 cm.
WITHDRAWNING THE AZ900 FROM USE
the AZ900 must be withdrawn from use and destroyed when:
!
- it was used more than 5 years from the date of putting it into operation.
- it was used to arrest a fall.
- any mechanical, chemical or thermal defects have appeared.
ADMISSIBLE TIME OF USE
the AZ900 can be used for 5 years, counting from the date of putting the device into operation. After 5 years of use the connector must be withdrawn from
!
use and destroyed.
Using the AZ900 in connection with fall arrest system must be compatible with use instructions of the fall arrest systems and obligatory standards:
- EN 361 - for safety harness
- EN 353-1, EN 353-2, EN 354, EN 355, EN 360, EN 362 - for fall arrest systems
- EN 795 - for anchorages
- EN 358 - for work positioning systems
CONTENT OF THE DEVICE IDENTITY LABEL
PERIODIC
1. name (type) of the device
EXAMINATION
2. trade mark
NEXT DUE DATE
3 reference number*
4. device lenght
5. European standards (number/year/class)
6. number of the manufacturing series
7. caution: read the manual
8. date of next inspection
9. minimum strength tested according EN 566
10. CE marking and number of a notified body controlling manufacturing of the equipment (art. 11)
11. month/year of manufacture
12. number of people can use device
13. marking of the manufacturer or distributor
*) xxx - code of length
for example: xxx = 050 - length 50 cm
xxx = 200 - length 200 cm
Webbing Sling
Connector
AZ900 (complies with EN 354) attached to the full body harness (complies with EN 361) and connected to the
Webbing Sling Connector length is from 20 cm to 200 cm
textile
identity
webbing
label
sewing
1 WEBBING SLING
0000001
Serial number:
CONNECTOR
2
AZ 900
MM.YYYY
Date of manufacture:
3
Ref.: AZ 900 xxx
LENGTH: XXX cm
4
EN 566:2006
EN 795:2012 Type B
22 kN
EN 354:2010
5
9
10
AZ 9 0 0
Ref.: AZ 9 0 xxx 0
he total length of this sub-system
6 7 8
ONLY FOR
ONE USER
12 13
11
