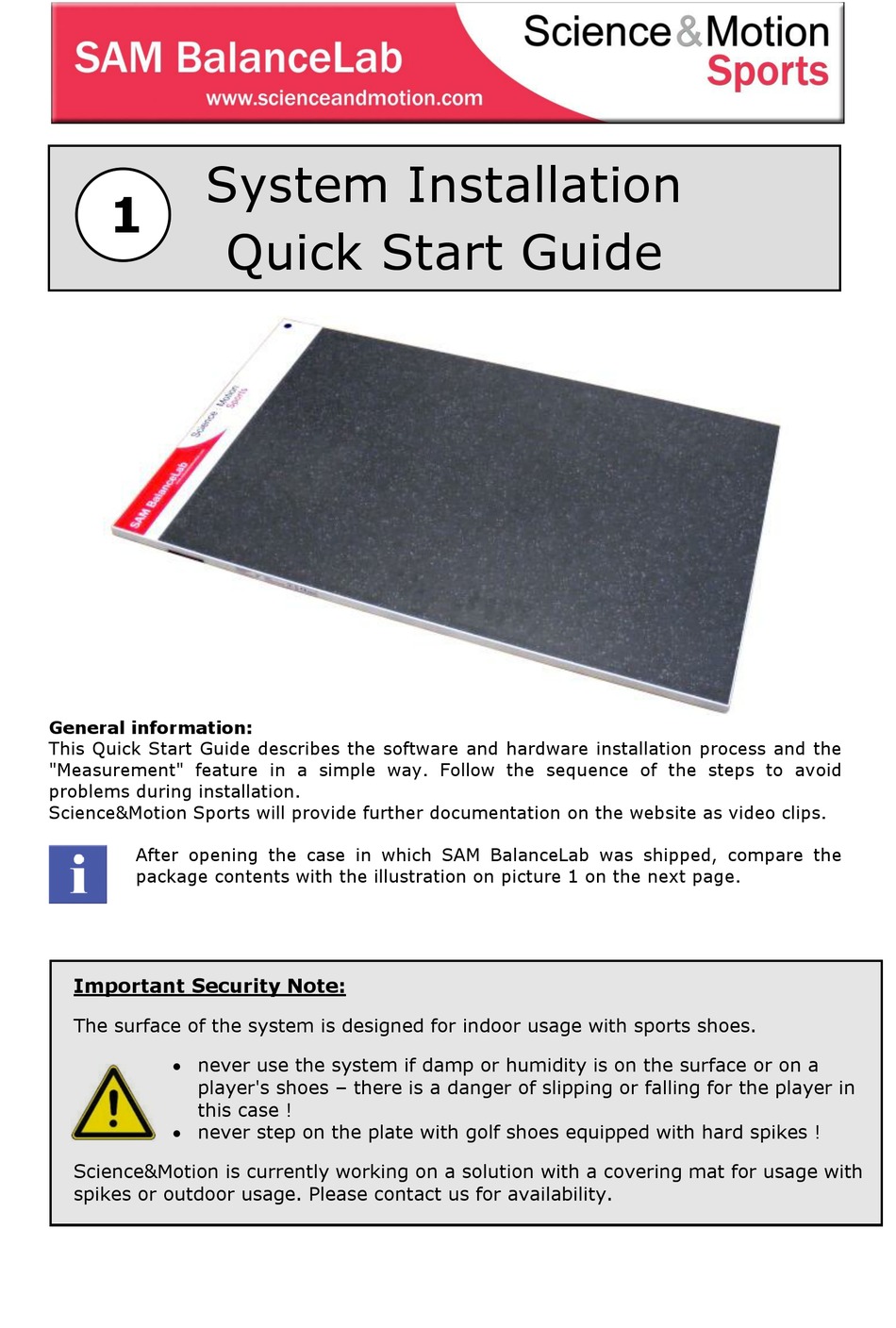

System Installation
1
General information:
This Quick Start Guide describes the software and hardware installation process and the
"Measurement" feature in a simple way. Follow the sequence of the steps to avoid
problems during installation.
Science&Motion Sports will provide further documentation on the website as video clips.
After opening the case in which SAM BalanceLab was shipped, compare the
package contents with the illustration on picture 1 on the next page.
Important Security Note:
The surface of the system is designed for indoor usage with sports shoes.
never use the system if damp or humidity is on the surface or on a
player's shoes – there is a danger of slipping or falling for the player in
this case !
never step on the plate with golf shoes equipped with hard spikes !
Science&Motion is currently working on a solution with a covering mat for usage with
spikes or outdoor usage. Please contact us for availability.
Quick Start Guide
Advertisement
Summary of Contents for Science & Motion SAM BalanceLab
- Page 1 Science&Motion Sports will provide further documentation on the website as video clips. After opening the case in which SAM BalanceLab was shipped, compare the package contents with the illustration on picture 1 on the next page. Important Security Note: The surface of the system is designed for indoor usage with sports shoes.
-
Page 2: Step 1: Hardware Installation
Then place the cover plate on the connection them port and fasten the screws. Do not connect the USB cable to your computer now! First execute the software installation like described on the next pages. SAM BalanceLab System installation Quick Start Guide page 1... -
Page 3: Step 2: Software Installation
Step 2: Software Installation 1. If you install the software from a CD: Insert the SAM BalanceLab CD into your CD-drive. The installation procedure should start automatically. If auto-start is disabled on your system, please run SETUP.EXE manually from your CD drive. - Page 4 6. Next step is the USB driver installation for the SAM BalanceLab hardware will be installed. Click "Yes" to continue installing the drivers. If you are sure you have installed the drivers before and the system worked you can skip the driver install by pressing "No".
- Page 5 9. After installation is finished you will be prompted to attach the SAM BalanceLab to your PC / Laptop. Now you can connect the SAM BalanceLab via USB cable to a free USB port on your PC / Laptop. 10. Your computer will notice a newly attached device and the Windows “Found new Hardware”...
- Page 6 14. The installation window is still open. Click the "Close" button to complete the software installation of SAM BalanceLab. 15. Remove the SAM BalanceLab CD from your CD drive. SAM BalanceLab System installation Quick Start Guide page 5...
- Page 7 Step 3: Start the software, create Project and Player Start SAM BalanceLab software Start "SAM BalanceLab 2" via the desktop icon which was created during the software installation. You can also start the software through the Windows start menu under "Programs" and "SAM BalanceLab 2"...
- Page 8 If you want to send reports by email it makes sense to enter the email address into the player data when creating a player. Press "Save" button after data input is finished. SAM BalanceLab System installation Quick Start Guide page 7...
- Page 9 "activate video recording" checkbox Unchecked for now. Be sure nobody stands on the forceplate and press the "Calibrate" button. Calibration will take some seconds and then the Recording window will open. SAM BalanceLab System installation Quick Start Guide page 8...
- Page 10 You will see a history of some seconds into the past. With a right-mouse click into this window the curves can be displayed for total pressure or pressure separated for feet or front / back. SAM BalanceLab System installation Quick Start Guide page 9...
- Page 11 You can add a Name for the Session and also a comment which will be displayed in the Main Window to better identify or remember your recordings. If you press "Cancel" all recorded data will be rejected SAM BalanceLab System installation Quick Start Guide page 10...
- Page 12 A double click on one file will open it. You can add files by "drag and drop" them to this box. Files can be added by copying them, moving them or linking them. SAM BalanceLab System installation Quick Start Guide page 11...
- Page 13 On the right the 4 data views are visible: 1. Force data view 2. COP (center of pressure) curves for body / feet 3. Video view 4. Balance view with current force distribution and COP position SAM BalanceLab System installation Quick Start Guide page 12...
- Page 14 The marker positions are important to compare different swings and also for the data display in the report. To change the replay speed click on the following slider control: Speed can be set to 0.1x, 0.25x, 0.5x, 1x, 2x of the original speed. SAM BalanceLab System installation Quick Start Guide page 13...
- Page 15 To change the view angle click and move the mouse inside the force view. To switch between 2D and 3D view click on the topmost button in upper right corner of the force view window. SAM BalanceLab System installation Quick Start Guide page 14...
- Page 16 - the heel/toe balance for both feet separated (black lines and percentage values) The balance view is great to check weight distribution of a player against reference values given for certain positions (see report section of this document for more details). SAM BalanceLab System installation Quick Start Guide page 15...
- Page 17 The yellow rectangles allow resizing and adjusting of the object. Line color and width also can be changed. If you press the "Save overlay" button the current overlays will be saved to this record permanently. SAM BalanceLab System installation Quick Start Guide page 16...
- Page 18 The "Standard" report shows only the results for the current record, the "Standard (with descriptions)" contains one description for every data page. Please click on Standard (with descriptions)" and "OK" to open the report. After some seconds the report window will open: SAM BalanceLab System installation Quick Start Guide page 17...
- Page 19 Ideally the ellipse should be quite flat (that means not much weight shift to front or back). And the direction should be straight into ball direction. In this example the ellipse is much too high and also tilted to the outside. SAM BalanceLab System installation Quick Start Guide page 18...
- Page 20 If the report with descriptions has been selected each page will be followed by a page with descriptions for this swing event. Please try this and compare the actual player data with the reference data given on the description page. SAM BalanceLab System installation Quick Start Guide page 19...
- Page 21 Saving the report as a PDF or XPS document Send the report as email with attached PDF Print the report Zoom options for zoom up/down, full page view, double page view SAM BalanceLab System installation Quick Start Guide page 20...
