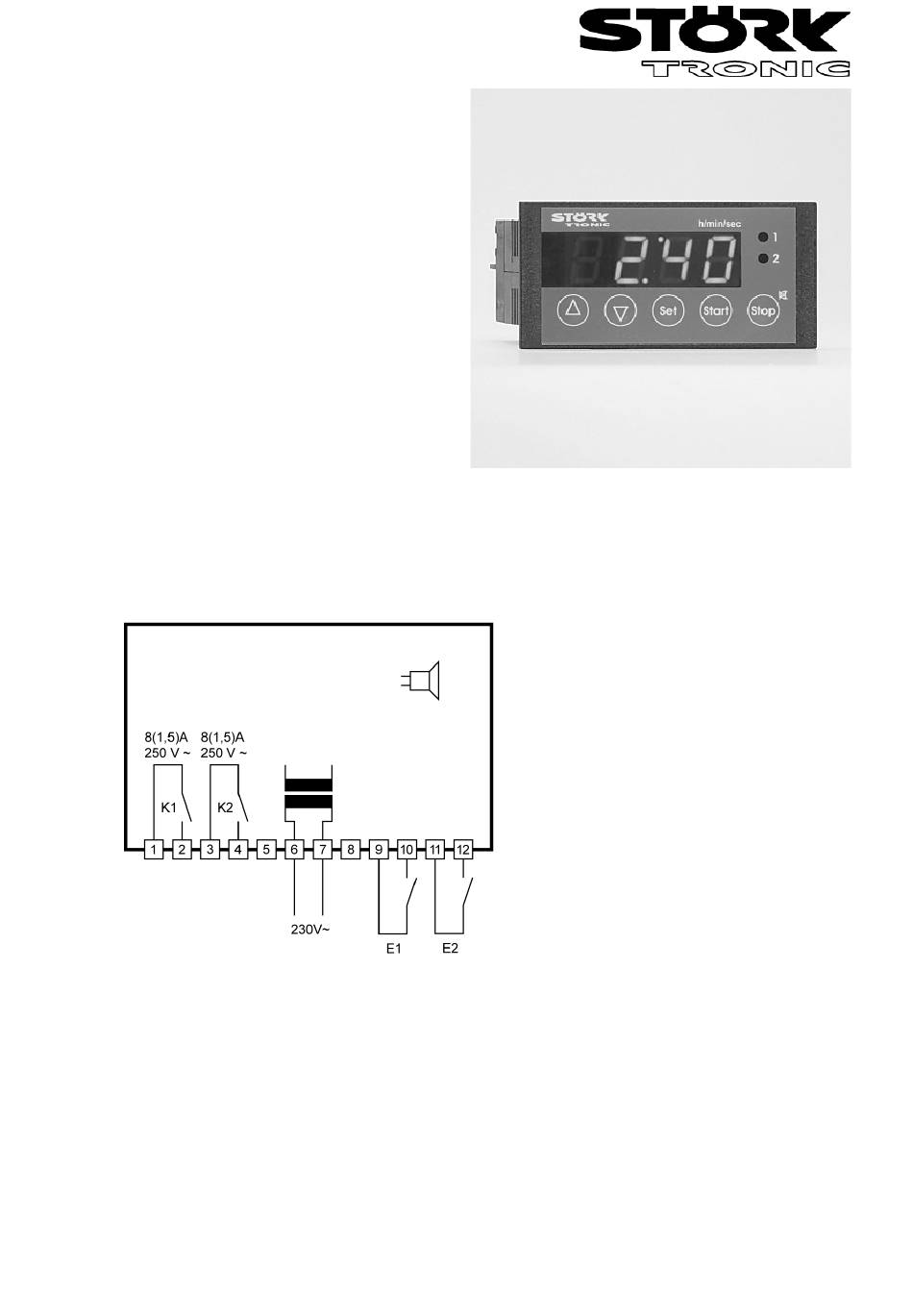

ST710-PCA.07
Timer switch
Order number 900211.002
Wiring diagram
Product description
The freely programmable timer switch has two adjustable derivative timers and two elapsing tim-
ers.
Together with the possibility of various parameters, two output contacts and two switching inputs
will allow the employment of any applications one can think of. The timer can be started and
stopped both with the front buttons and with the switching inputs.
Front size: 84mm x 42mm
Panel cut-out: 67.5mm x 31.5mm
Tigntness: Front IP65
Connector: plug and socket
Order number: 900211.002
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ST710-PCA.07 and is the answer not in the manual?

Questions and answers

Summary of Contents for Störk-Tronic ST710-PCA.07

  • Page 1 ST710-PCA.07 Timer switch Order number 900211.002 Wiring diagram Product description The freely programmable timer switch has two adjustable derivative timers and two elapsing tim- ers. Together with the possibility of various parameters, two output contacts and two switching inputs will allow the employment of any applications one can think of. The timer can be started and stopped both with the front buttons and with the switching inputs.
  • Page 2 Order number: 900211.002 Page 2...
  • Page 3 SOFTWARE .07 Adjustment options Key 1: UP By pressing this key together with the SET key you can increase the parameter or pa- rameter value or scroll the parameter list. Key 2: DOWN By pressing this key together with the SET key you can decrease the parameter or pa- rameter value or scroll the parameter list.

  • Page 4: Function Description

    Function Description The timer is always equipped with two output contacts and a buzzer. Derivative Operating Derivative Operating time TA1 time t1 time TA2 time P15 START K1 on K1 off K2 on Buzzer on K2 off Buzzer off The entire process consists of the following successive phases: - Derivative time TA1 for relay K1 (relay K1 is still inactive) - Active phase t1 for relay K1 - Derivative time TA2 for relay K2 (the relay K2 is still inactive)
  • Page 5 First control level: Adjusting the operating time By pressing th SET-key the operating time t1 is indicated. By additionally pressing the UP- or DOWN-key the time can be set. Para- Function Adjustable range Standard Customer meter setting setting Operating time (setpoint) K1 see P1 1:11 hrs Second control level (P-parameter):...

  • Page 6: Parameter Description

    Para- Function Adjustable range Standard Customer meter setting setting Operating range K2 0: 0...99.9 sec. 1: 0...99 min. 59 sec. Operating time K2 0... see P14 2 sec. Special functions 0: Normal function 1: both relays as K1, K2 inactive during timer 2: both relays as K2, K1 inactive during timer...

  • Page 7: Status And Error Messages

    P15: Operating time K2 This parameter sets the operating time for K2 P16: Special functions For special use cases it is possible to activate both relays during the operating time t1 (then inactive during P15) or vice versa. Please note that the buzzer is linked to the final sequence stop, i.e. to P15. If P16 = 1 it will sound regardless of the output K2.
  • Page 8 Technical data of ST710-PCA.07 Inputs external contact, potential-free, timer start function external contact, potential-free, timer stop function Outputs Relay 8(1.5)A 250V, normally-open contact Relay 8(1.5)A 250V, normally-open contact Installed buzzer, ca. 85dB Display One 4-digit LED-Display, height 13mm, for timer display, colour red...
