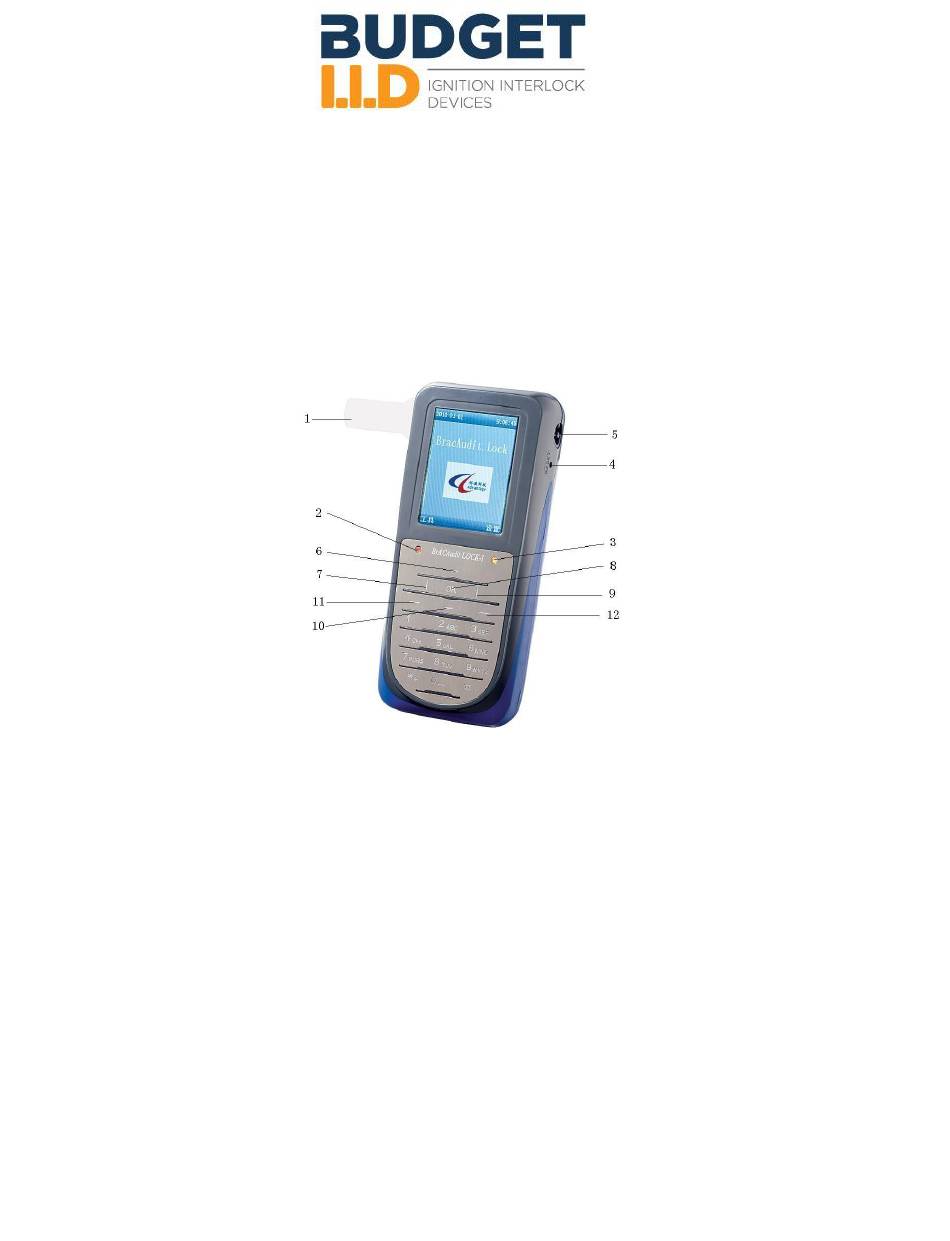

1. Mouthpiece

2. Charge Indicator

3. Communication Indicator

4. Reset Button

5. Air Inlet

6. Up Button

Taking a test:

When a test is required, turn the key to the "On" position and then the handset will instruct the user through the

process. The entire process has three steps: device preparation, blow and data analysis / test results.

Note: If the key is in the on position for listening to radio etc... device will prompt for a test.

BrAC Audit Lock-1

Instruction User

Manual

7. Left Button

8. OK Button

9. Right Button

10. Down Button

11. Left Menu Button

12. Right Menu Button

Table of Contents

Need help?

Do you have a question about the BrAC Audit Lock-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ignition Interlock Devices BrAC Audit Lock-1

Page 1 BrAC Audit Lock-1 Instruction User Manual 1. Mouthpiece 7. Left Button 2. Charge Indicator 8. OK Button 3. Communication Indicator 9. Right Button 4. Reset Button 10. Down Button 5. Air Inlet 11. Left Menu Button 6. Up Button 12. Right Menu Button Taking a test: When a test is required, turn the key to the “On”...
Page 2 Device Preparation: The handset needs to be warm up if the surrounding temperature is under 36 Below are examples of what a device °F. will display until it reaches the required operating temperature. Figure 1: Device preparation The warm up time is correlated with the temperature. The lower the temperature, a longer time is needed. The “zero clearance”...
Page 3 The device is pressure sensitive. If the device does not detect the desirable amount of pressure ( due to excess temperature, pressure variance due to an incorrect blow) a “Non-human breath! Test Failed!” caption will display on the units screen. This will not result in a violation, but the operator will have to retest until test is accepted.
Page 4 2. Data analysis and test results: After taking a test, the device will automatically enter the data analysis phase. This phase will last for a few seconds. During this time, the device will not respond with any user operations. The test result will display the BAC % along with a “Pass” or “Fail”. A passed test is labeled in green, while the failed test is labeled in red.
Page 5 If the rolling retest is failed or the driver refuses to take the test in the 3 minute time period, an indication will be displayed on the screen, the alarm lamp will blink and it will be recorded in the user’s log. The screen will also display a message indicating to the user the device will go into a block state in 5 days.
Page 6 Sample-Free Restart Process: When the vehicle is shut off after being started, a sample-free restart shall be allowed for 3 minutes by default. If the device is shutdown when it is awaiting a rolling retest, the sample-free restart shall not be allowed. In this case, the device would continue the rolling retest process if the vehicle is restarted within the time specified for the stall time.
Page 7 Servicing the Vehicle: The device is designed to be convenient, easy to use and safe. The engineering department is continuously developing features to make the system more convenient. When your vehicle needs servicing, it will be necessary to take a test whenever the engine is started during the service (remember the five and three minute extendible times).
