Precision Products PLR1836 Assembly Instructions

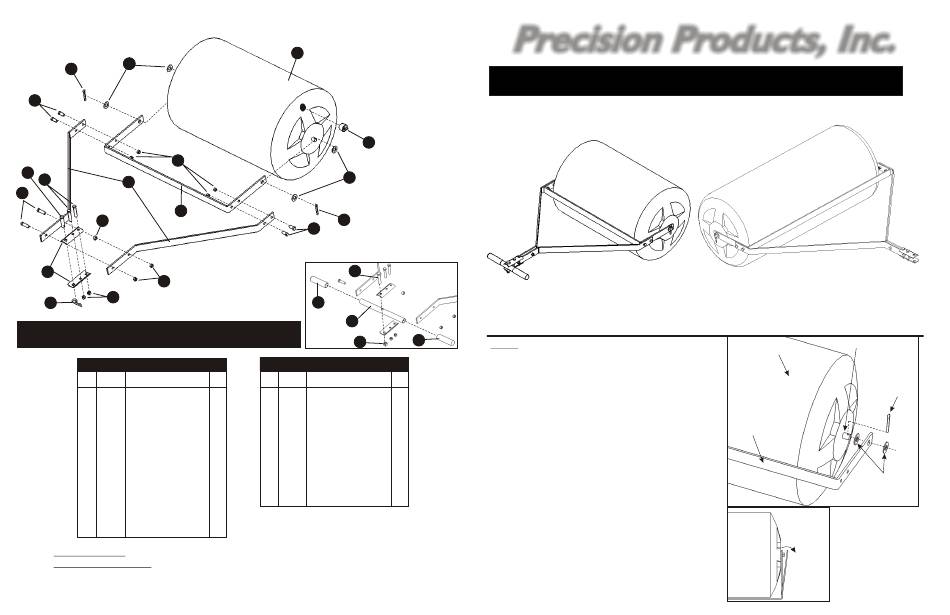

PARTS LIST FOR LAWN ROLLERS:

3 3
4
6
5
11
9
8
12
7
10
13
5
5
14
PLEASE DO NOT RETURN THIS MERCHANDISE TO THE STORE. CALL US AND WE
WILL TAKE CARE OF ANY PROBLEM YOU MIGHT HAVE WITH THIS PRODUCT.
Phone (800) 225 - 5891 EXT. #204
PLR1824 Parts List
Ref Parts Description
No No
1 3263 Roller Body
2 1956 Expansion Plug
3 1646 5/8" Flat Washer
4 2576 3/16" Cotter Pin
5 3039 3/8" Lock Nut
6 1974 3/8" x 1" Hex Head Bolt
7 3264GY Center Brace
8 3265GY Hitch Side Bar
9 3255 3/8" x 2-1/4" Hex Head Bolt
10 3254 3/8" x 3/8" Spacer
11 3256 Clevis Pin 1/2" x 2-1/4"
12 1806 3/8" x 1-1/2" Hex Head Bolt
13 3257GY Clevis Plate
14 1042 #14 Hitch Pin Clip
15 3042 1" Handle Grip
16 3268 1/2" x 2-1/2" Hex Head Bolt
17 3266 Handle Tube
18 2311 1/2" Lock Nut
HOW TO ORDER
REPLACEMENT PARTS: Send To: Parts Division
When ordering parts always
give model number, part
number and part description.
PLR1824
PLR1836
1
TIP: Many of these
hardware parts can be
purchased at your local
hardware store.
2
3
4
6
Handle Components – PLR1824 ONLY!
16
15
17
18
PLR1836 Parts List
Qty Ref Parts Description
No No
1 1 3250 Roller Body
1 2 1956 Expansion Plug
4 3 1646 5/8" Flat Washer
2 4 2576 3/16" Cotter Pin
8 5 3039 3/8" Lock Nut
4 6 1974 3/8" x 1" Hex Head Bolt
1 7 3251GY Center Brace
2 8 3252GY Hitch Side Bar
2 9 3255 3/8" x 2-1/4" Hex Head Bolt
1 10 3254 3/8" x 3/8" Spacer
1 11 3256 Clevis Pin 1/2" x 2-1/4"
2 12 1806 3/8" x 1-1/2" Hex Head Bolt
2 13 3257GY Clevis Plate
1 14 1042 #14 Hitch Pin Clip
2
1
1
1
Phone (800) 225-5891
(217) 735-1590 Ext. 204
316 Limit Street
FAX (217) 735-2435
Lincoln, IL 62656
Precision Products, Inc. Precision Products, Inc.
Precision Pro Plastic Lawn Roller
PLR1824

Tools Required for Assembly:

1- Pair of Pliers
2 - 9/16" Wrenches
2 - 3/4" Wrenches
15

STEP 1

Place a 5/8" Flat Washer (3) over the
axle on the Roller Body (1). Do this for
Qty
both ends of the Roller Body. Fig. 1
1
1
Next, place one end of the Center Brace (7)
4
over one side of the axle then the opposite
2
side. NOTE: you will have to pull (spread out)
8
4
on one end of the Center Brace to get it to go
1
over the axle. Fig. 2
2
2
Place another 5/8" Flat Washer (3) over
1
1 the axle on the Roller Body (outside the
2
Center Brace) on each end. Fig. 1
2
1
Insert a 3/16" Cotter Pin(4) into the hole
on the axle and spread the legs of the pin
to secure into place. Repeat this procedure
for the other side of the axle. Fig. 1
PLR1836
Figure 1
Roller Body Axle
Roller Body
3/16" Cotter
Pin
Center
Brace
5/8" Flat Washers
Figure 2
Pull
(spread out)
Center
Brace
3258
