Production Basics 8632 Assembly Manual

FLAT SCREEN MONITOR ARM AND
ADD-ON KEYBOARD TRAY
Item Numbers 8632, 8634 + 8633
Step 1
Step 2
Step 3
Production Basics, Inc. Massachusetts, USA
ASSEMBLY VIDEOS AVAILABLE ON-LINE http://video.pbasics.com
1603A863
A S S E M B L Y M A N U A L
800.318.2770 617.926.8100
A C C E S S O R I E S
P A R T S A N D H A R D W A R E
Keyboard Tray Base
Tray Extender
Mouse Pad
8-32 bolts
8-32 nuts
M4 x 14mm
Allen Wrench
Other Items Needed (not included)
Flat Screen Monitor Arm
• Note: Monitor Arm and Add-on Keyboard Tray
sold separately.

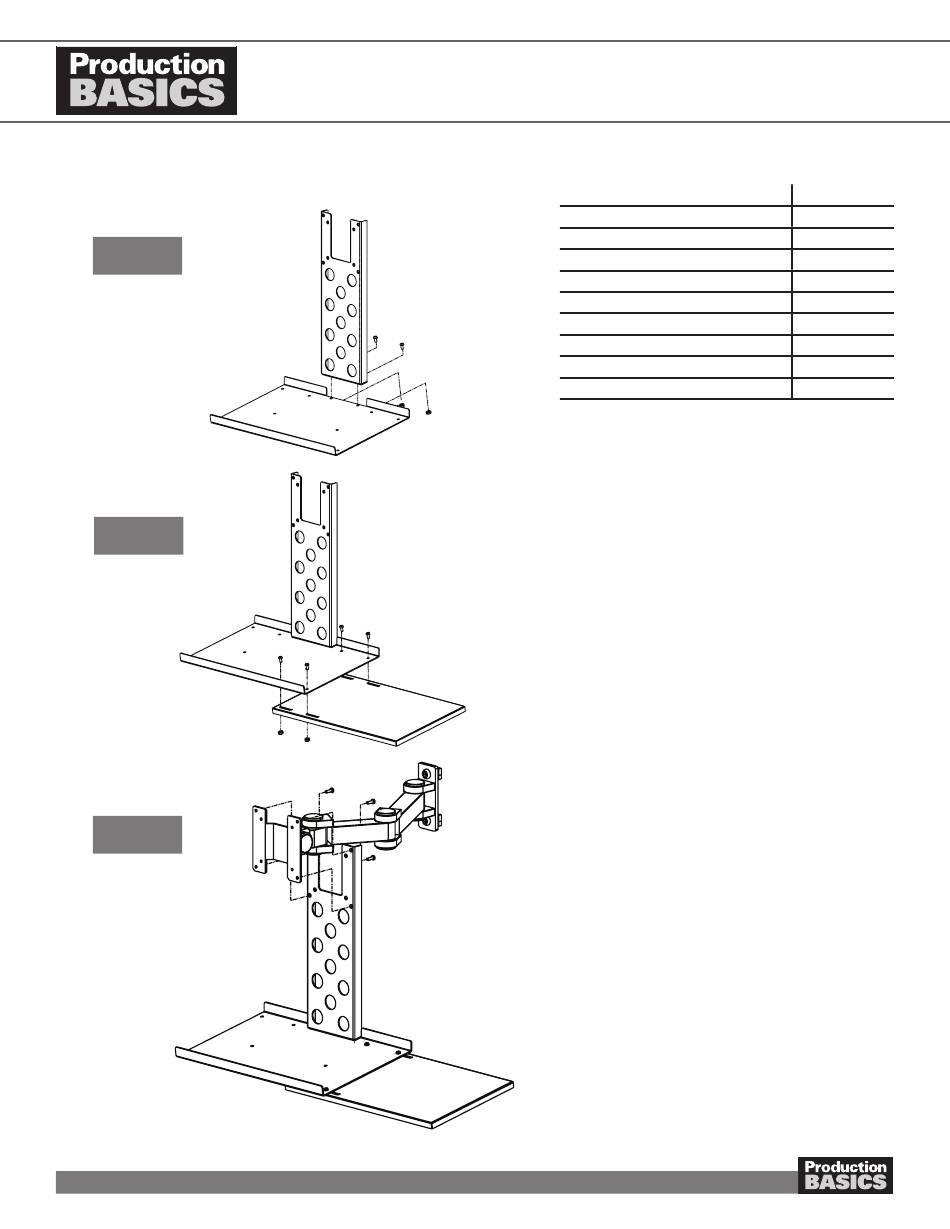

1. Attach Keyboard Tray Base to Tray Extender with two (2)
8-32 bolts and nuts.
2. Attach Mouse Pad to Keyboard Tray Base using four (4)
8-32 bolts and nuts. Mouse Pad can be positioned on
right, left or center front of Tray Base. Use adjustment
slots for proper sizing.
3. Install full assembly to the back of your Flat Screen
Monitor Arm (sold seperately), through the mounting plate
and then through the monitor. The Flat Screen Monitor
Arm mounting plate should be sandwiched between the
Add-on Keyboard Tray assembly and your monitor. Use
the bolts that came with your Flat Screen Monitor Arm.
Fax: 617.926.8010 www.pbasics.com
Q U A N T I T Y
1
1
1
6
6
4
1
1
