Summary of Contents for TCAT A97
- Page 1 Ambarella Customized for Special Cars • Impact Car Black Box TCAT WIFI VIDEO DRIVING RECORDER TCAT WIFI VIDEO DRIVING RECORDER Operating lnstruction Manual...

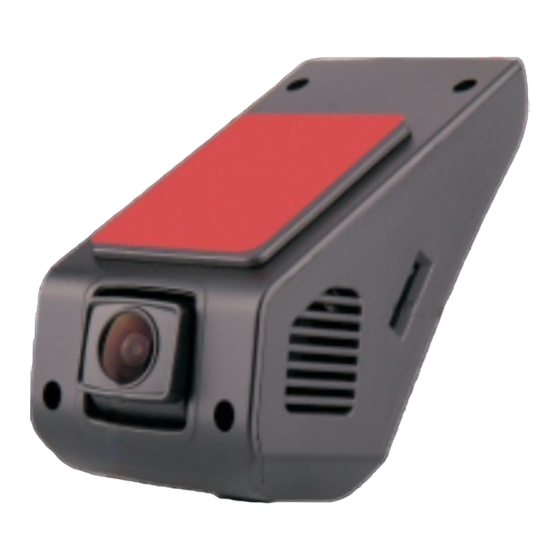

- Page 2 , not +24V power supply systems such as buses, trucks and other commercial vehicles. Specifications Functions Up to 1290X1080P and 30FPS continuous recording and TCAT Driving Video Recorder –A97 HD Recording without any gaps in recording. Product Specifications Operating Voltage...
-
Page 3: Product Instructions
Product instructions Buttons Instructions Light indications and Button Definitions Speaker LCD screen Down Power Menu Indicator Light 1.Power Switch：Short press to start /stop recording. Long press to power off. Short press to power on when in the Power Off mode. It is the Enter key when it in the Menu SOS lock Reset mode, it can start playing or stop playing in the Playback mode. -
Page 4: Led Indicators
Driving Recorder Settings LED indicators When the recording is stopped, press the menu button to enter the local setting menu; press Recorder status is indicated by red or blue LED light. again to exit the menu and it will automatically start recording. Red light ON : Power is ON Red Light OFF: No power Red light Flashing : SD card not inserted or damaged. - Page 5 Off: Do not lock any collision / event files Video Quality: Set the video quality (Bit rate) and recorded file size to Low, Medium or High Low, Medium and High: Adjust the Sensitivity of the G-sensor Video Clip : Set the length of each recorded video clip, 1 Min, 3 Mins or 5 Mins. Parking Mode: Turn the Parking Mode On or OFF.
-
Page 6: Function Instructions
Function Instructions Storage location of Normal recording video Files Recording Function All the normal recording video files will be stored in the DCIM folder under the microSD card root directory. The recording function will automatically start when the vehicle is started. Turn on/off the In order to minimize lost recording gaps in between video files, the recorder uses recording function by pressing button in the mobile APP. -
Page 7: Android App
Install the mobile APP Turn on WIFI The WIFI will automatically turn ON when you start the car. Long press the camera button Kindly scan below QR code to get the mobile app. to turn ON/OFF the WIFI module. When WIFI is ON, the recorder will act as a WIFI hotspot . The WIFI SSID will be RS-DVR-(xxxxx). - Page 8 Mobile APP Connection How to use the Mobile APP. After the WIFI is connected, please start the installed APP TCAT DVR A97 1.Start the TCAT DVR A97 on your mobile device. to connect with the real-time control interface of the device.
- Page 9 Power-off Delay: Set the delay to switch off the recorder after Engine is switched off. (No delay, Driver Fatigue notification: Set the fatigue driving reminder to turn on or off.After recording for 4 10 seconds, 30 seconds or 1 minute) continuous hours, the recorder will prompt the driver to take a break from driving.
- Page 10 Files maybe lost or damaged video or audio heard upon insertion. when using non-genuine (imitation cards). TCAT is not responsible for any case caused by ④Delete the old unused files on the memory card to clear up the memory space.
-
Page 11: Additional Information
This product is used for video and audio recording. The recorded media shall be Flashing of indicator light on the recorder: used ONLY as an additional reference in any case of accidents etc. TCAT shall not 1. The blue light starts flashing when the recording starts. This indicates normal be held liable or responsible in any matter related to the use of the recorder in any operation status.
