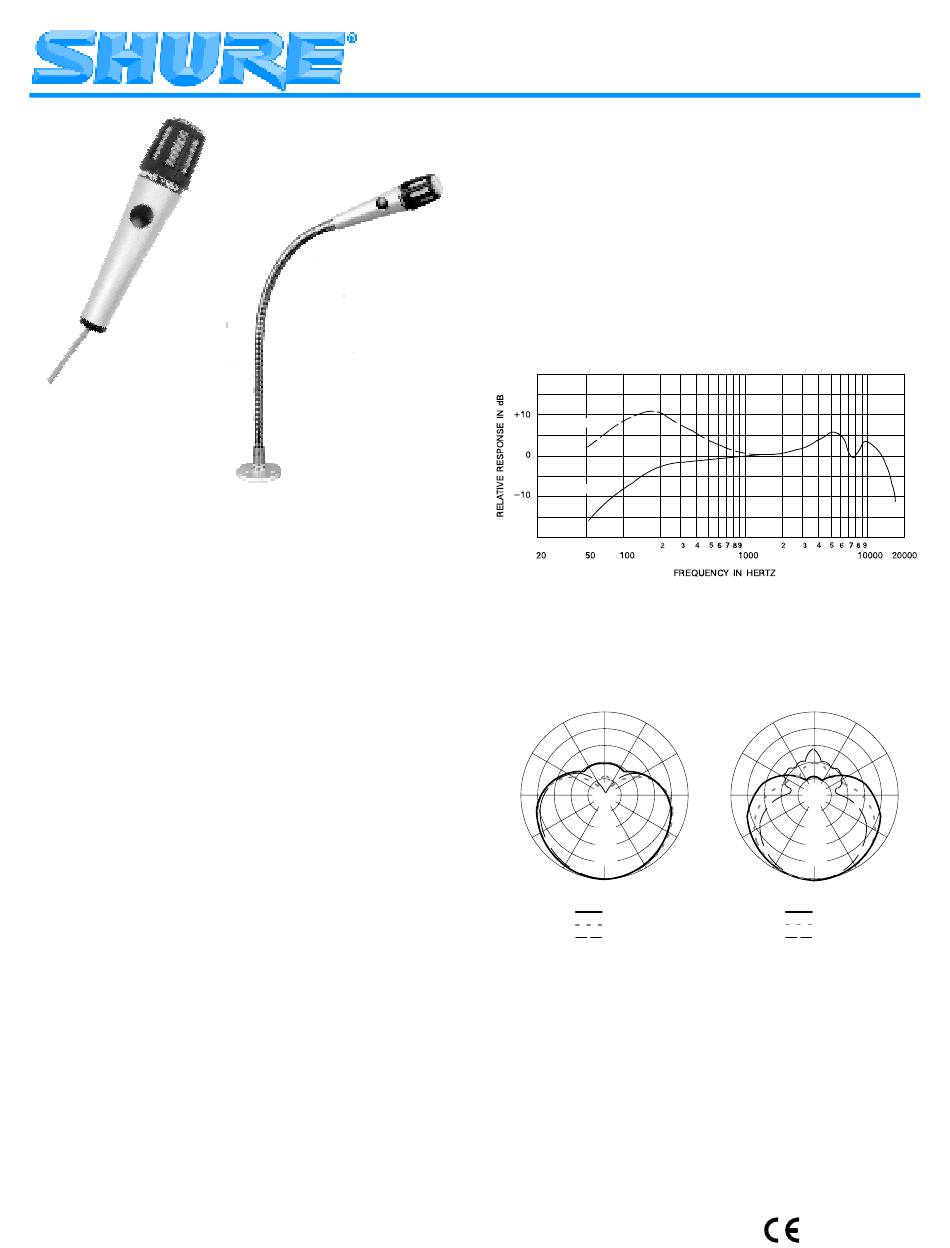

Shure 515SBGX User Manual

515SBGX
GENERAL
The Shure Models
515SBG-18XF microphones are low-impedance dynamic mi-
crophones designed to be mounted on flexible goosenecks or
fixed pipes. Optimized frequency response and a unidirectional
(cardioid) pickup pattern makes them ideal for language labs,
paging applications, and base station communications. They
are also recommended for use as talkback or cuing micro-
phones in TV, film, and recording studios. Because of their low
impedance, these microphones retain their level and response
characteristics even when long lengths of cable are used.
All three models are supplied with a push-to-talk button and
a four-conductor cable (two conductors shielded).
Features
•
Frequency response optimized for announcing, narration,
and paging applications
•
Cardioid pickup pattern symmetrical about axis
•
Neodymium magnet for high signal-to-noise ratio
•
Shock-mounted cartridge for quiet operation and low
stand/handling noise
•
Tough diecast locking grille and handle
•
Built-in push-to-talk button controls microphone circuit and
relay or control circuit
•
45.7 cm (18 in.) gooseneck and mounting flange supplied
(515SBG-18X and 515SBG-18XF only)
2002, Shure Incorporated
27D2974 (BJ)
515SBG–18X
515SBGX, 515SBG-18X,
Model 515SBGX, 515SBG-18X, and
VARIATIONS
MODEL 515SBGX: Does not include gooseneck or mounting
flange
MODEL 515SBG-18X: Includes gooseneck and 76.2 mm (3 in.)
diameter mounting flange
MODEL 515SBG-18XF: Includes gooseneck and 44.4 mm
(1–3/4 in.) diameter mounting flange
SPECIFICATIONS
Type
Dynamic (moving coil)
Frequency Response
80 to 15,000 Hz (see Figure 1)
3
1 cm ( / in.)
8
0.6 m (2 ft)
and
TYPICAL FREQUENCY RESPONSE
Polar Pattern
Cardioid (unidirectional). Effective rejection of sound at rear of
microphone is uniform at all frequencies, while front pickup
characteristics are uniform about axis (see Figure 2).
180
o
150
o
120
o
90
–20 dB
–15 dB
o
60
–10 dB
–5 dB
o
30
0
Impedance
150 Ω rated (180 Ω actual)
Output Level (at 1,000 Hz)
Open Circuit Voltage: –57 dBV/Pa* (1.4 mV)
*1 Pa = 94 dB SPL
Phasing
Positive pressure on diaphragm produces positive voltage on
RED cable relative to BLACK cable lead
Switch
Built-in, leaf-type, non-locking, push-to-talk
515SBG-18XF User Guide
FIGURE 1
o
o o
150 150
o
120
o
120
o
90 o
90
o
60
o
60
o
o
30
30
250 Hz
500 Hz
1000 Hz
TYPICAL POLAR PATTERN
FIGURE 2
o
180
o
150
o
120
o
90
–20 dB
–15 dB
o
60
–10 dB
–5 dB
o
30
0
2500 Hz
6400 Hz
10000 Hz
Printed in U.S.A.
