Summary of Contents for Humboldt Redwood Napa

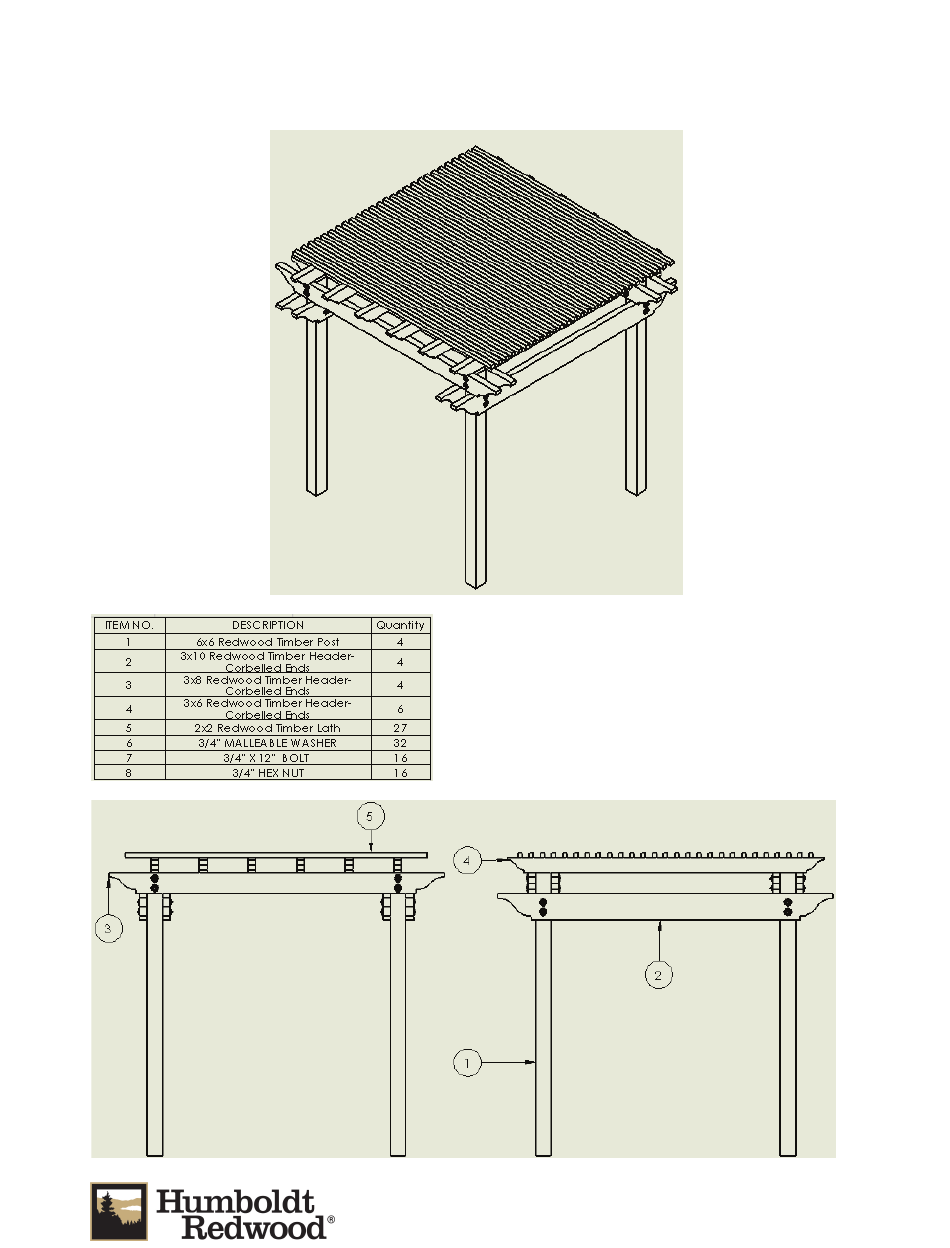

- Page 1 Napa Pergola Assembly Instructions Napa Pergola Assembly Instructions...
- Page 2 List of Tools required: 2 People Drill 7/8” x 8” Drill Bit 15/16” Driver bit or wrench(s) Nails or Woodscrews (Galvanized) Hammer Framing Square Bubble Level Measuring Tape Pencil (8) 4ft+ Long Scrap 2x4 for use as temporary bracing. 1) Layout Post Anchors On Level ground mark location of the 4x included post anchors.
- Page 3 3) Assemble Posts and 3x10 Headers With two 6x6 Post [1] laid flat on the ground measure 7 ½” from the top edge and mark for the top of the 3x10 header. Center the pre-drilled holes of 3x10 Header [2] upon post. Ensure equal 92 ½”...
- Page 4 4) Hoist Assembled Posts and Headers into Anchors Prepare four scrap 2x4 to temporarily brace the posts after being hoisted into place. Hoist one post and header structure upright and place bottom end of posts into anchors. Use a level to ensure that posts are plumb and secure into anchors with choice of hardware. Consult Simpson installation instructions for proper procedure.
- Page 5 5) Assemble 3x8 Headers Place 3x8 Header [3] across top of 3x10 Headers [2]. Center pre-drilled holes upon post and mark location. Drill holes through posts using 7/8” drill bit. Assemble two 3x8 Headers on both sides of post using provided hardware Repeat for remaining two 3x8 headers on opposite side...
- Page 6 6) Assemble 3x6 Headers Measure 15 ” from end of 3x8 Header and locate outside edge of 3x6 Header [4]. Hang over the edge 7 ¼” on each side to center the header. Place remaining five 3x6 Headers along length with 14 ”...
- Page 7 7) Assemble Lath Measure 3 ¾” from end of 3x6 Header and locate outside edge of 2x2 Lath [5].Hang over the edge 9 ” on each side to center the lath. Place remaining twenty six pieces of 2x2 Lath along length with 2 ½”...
