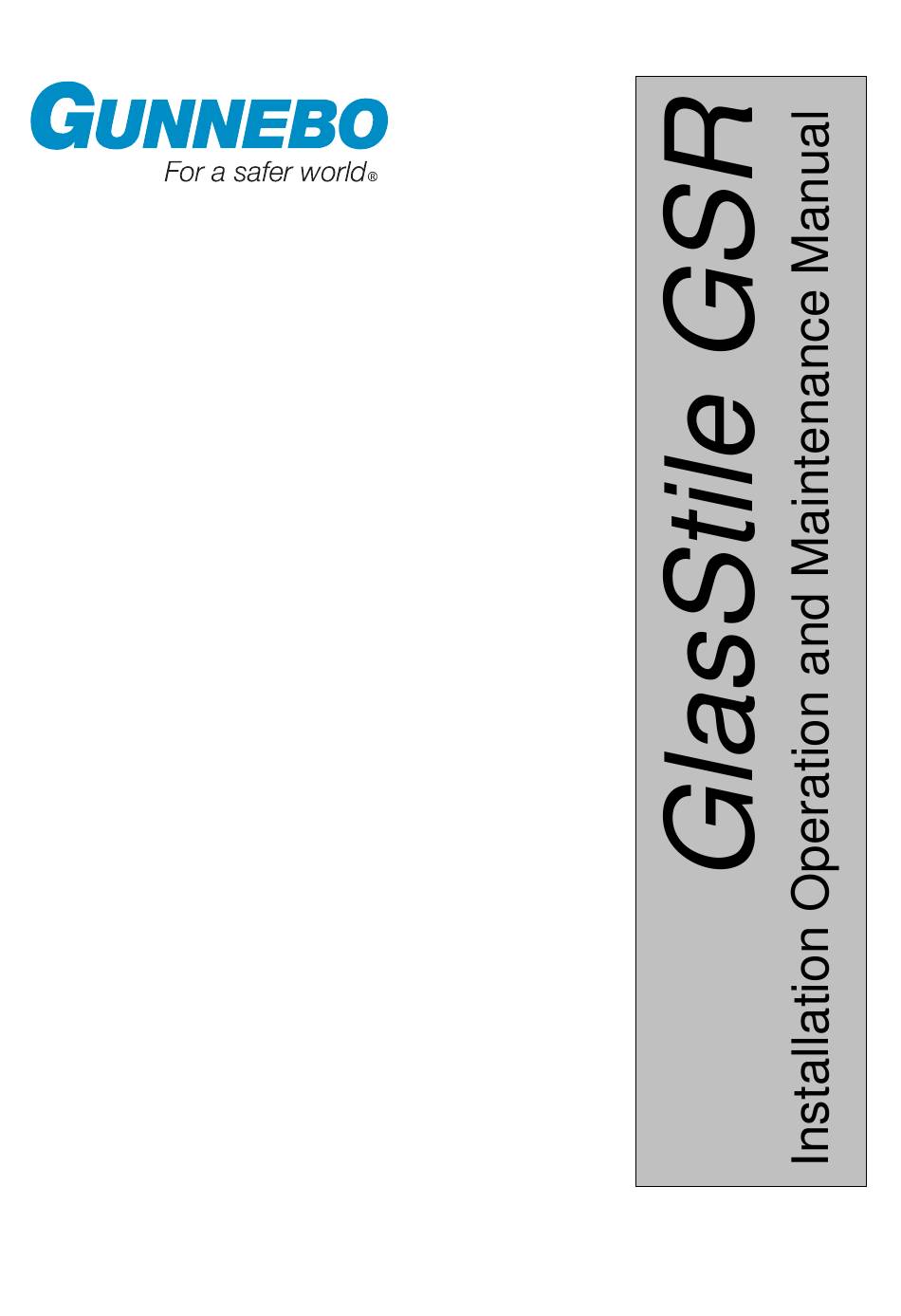

Gunnebo GlasStile GSR Installation, Operation And Maintenance Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

.............................

CCEC/ OM Manual GlasStile GSR 1.6 EN

07.2009

Table of Contents

Need help?

Do you have a question about the GlasStile GSR and is the answer not in the manual?

Questions and answers

Summary of Contents for Gunnebo GlasStile GSR

Page 1 ......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 2 ......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 3: Table Of Contents
Card Reader Control - Push to Go ..............12  Reset ........................ 12  Unauthorised passage ..................12  Blocking or forcing GlasStile GSR during rotation ..........12  Power Failure ....................12  Fire Alarm......................12 ........................13 ECTION...
Page 4 ............................. 35 ECTION AINTENANCE  General Care ....................35  Trouble Shooting ....................37 ............................39 ECTION PARE ARTS  Recommended Spare Parts ................39 ....................... 40 ECTION ECLARATION OF CONFORMITY ......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 5: Section 1 Introduction
Turnsupport.entrancecontrol@gunnebo.com Proprietary Notices All data appearing herein, is of a proprietary nature, with exclusive title to it held by Gunnebo. The possession of this Manual and the use of the information are therefore restricted only to those persons duly authorised by Gunnebo.
Page 6: Rotating Machinery
Changes No hardware or software changes may be made without authority from Gunnebo who will be responsible for ensuring that the proposed change is acceptable in all safety aspects. Only personnel authorised by Gunnebo may make changes. Any maintenance or modification of Emergency Stop and Guarding Circuitry must be followed by safety checks on the whole hardwired Emergency Stop and Guarding Circuitry.
Page 7: Good Practices
Misuse of Cleaning Fluids Current Controls Compliance with COSSH regulations Rating 2: General Installation Who is at Risk Site Personnel Hazard Objects/Tools in Installation area Current Controls Trained Installation Engineers Rating 4: General Maintenance ......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 8: Ce - Marking
Incorrect handling techniques Current Controls Protective Equipment must be worn. CE - Marking The Gunnebo GlasStile GSR is CE marked, developed and manufactured and tested according to the EU‟s Machinery, Low-Voltage and EMC-Directives......CCEC/ OM Manual GlasStile GSR 1.6 EN...
Page 9: Section 2 Product Description
The Gunnebo GlasStile GSR is a revolving entrance gate with glazed panels. The GlasStile GSR rotates clockwise or counter-clockwise 120 before being locked by an electro-magnetic brake. The GlasStile GSR is activated in each direction by impulses to the driving electronics unit from the reception or impulse unit (e.g. card reader or pushbutton).
Page 10: Technical Specification
Power Supply Voltage: 110/230 VAC 50/60Hz Power rating: 250 W, fuse 1.0 A Note - Class C mains circuit breaker is required. Other dimensions and materials are available upon request to Gunnebo......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 11: Section 3 Instructions For Use
There are two reception inputs, one each for PASS LEFT and PASS RIGHT directions. The GlasStile GSR is passable for as long as the contact remains closed. On contact opening the gate returns to its home position, where the electro-mechanical brake locks the wing back in the barrier position.
Page 12: Operating Modes
GlasStile GSR is first started. Fire Alarm The GlasStile GSR has a facility for an external fire alarm input. The fire alarm output should be a normally closed voltage free (0V) pair. When this pair is open the unit will freewheel in both directions, this continues until the input is re-closed.
Page 13: Section 4 Technical Information
Integrated design makes installation simple with a minimum of intrusion on the existing environment. This concept allows architects and designers the ability to design a security system that fits their requirements for any situation. The GlasStile GSR is often installed with the addition of a GlasStile GSS to provide disabled access......
Page 14: Standard Dimensions
Fig 4.1 – GLSR 1350 with Type A Casework Motor unit mounted inside rotor 10 mm toughened glass IMPORTANT FOR ALL CASEWORK, DO NOT DRILL FIXING HOLES PRIOR TO GLSR DELIVERY TO SITE AND LOCATION CONFIRMATION AS BELOW ......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 15 10 mm toughened glass Motor unit mounted inside rotor 10 mm toughened glass IMPORTANT FOR ALL CASEWORK, DO NOT DRILL FIXING HOLES PRIOR TO GLSR DELIVERY TO SITE AND LOCATION CONFIRMATION AS BELOW ......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 16 Fig 4.3 – GLSR 1350 with Type C Casework Floor saddle Motor mounted inside rotor 10 mm toughened glass IMPORTANT FOR ALL CASEWORK, DO NOT DRILL FIXING HOLES PRIOR TO GLSR DELIVERY TO SITE AND LOCATION CONFIRMATION AS BELOW ......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 17 63mm dia. Stainless Steel Uprights 10mm clear toughened Glass Wings Motorised Rotor Column IMPORTANT FOR ALL CASEWORK, DO NOT DRILL FIXING HOLES PRIOR TO GLSR DELIVERY TO SITE AND LOCATION CONFIRMATION AS BELOW ......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 18 50mm dia. Stainless Steel Handrail 10mm clear toughened Glass Wings Motorised Rotor Column IMPORTANT FOR ALL CASEWORK, DO NOT DRILL FIXING HOLES PRIOR TO GLSR DELIVERY TO SITE AND LOCATION CONFIRMATION AS BELOW ......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 19 Card Reader integration into the Handrail (Option) 10mm clear toughened Glass Wings Motorised Rotor Column IMPORTANT FOR ALL CASEWORK, DO NOT DRILL FIXING HOLES PRIOR TO GLSR DELIVERY TO SITE AND LOCATION CONFIRMATION AS BELOW ......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 20: Component Location
Component Location Fig 4.7 – Main Component Identification ......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 21: Section 5 Installation
0.5mm sq. should be laid and a 1.5m tail left. (Screened cables are NOT normally required) For units that are to be controlled by Card Access or similar it is recommended that Gunnebo Technical Personnel be advised prior to starting the installation routines.
Page 22: Installation Routines
Insert the glazed panel making sure that the plastic insulator, packing strip and the plastic spacer sit between the glass and the metal surrounds to avoid the risk of the glass cracking, see Fig.5.2, repeating for each wing......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 23 Fig 5.2 – Glazed Panel Fitting Detail 8. Using a spirit level adjust the glass so that the top is horizontal. 9. Rotate the gate manually to check that it rotates freely. Fig 5.3 Cladding Detail ......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 24 Using the Interlocking Tabs to hold both Cladding Plates in position, fit the Retaining Strip so that it locates on the Top Retaining Screw in the Rotor. Fit the M4x8 button screw at the bottom of the Retaining Strip. Repeat for remaining two Retaining Strips......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 25 Remove the tape from the flange covers. Position the fixing flange cover rings, securing with silicone adhesive to the fixing flange to prevent rattle and then lift in to position and secure the curved guide rail......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 26 Adjust using shims if necessary. D12. Fit the Patch Fittings, stool/saddle assembly and then the glass panels. Ensure that the shims in the stool/saddle assembly are correctly fitted to support the Glass Panels......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 27 Fig 5.5 Glass Side Support Fig 5.6 Glass Floor Support ......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 28 The power to the logic board, motor and brake is supplied through a Toroidal transformer specification below. Transformer wiring differences between 230Vac and 110Vac Suitable cables for connecting to the mains power supply and external signals such as impulse units are: ......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 29 To switch of the power locally in the unit you can simply unclip the glass fuse breaker as shown in the image below Glass Fuse Holder 5 x 20 LBC 2A ......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 30 4. Make all required connections & ensure all cable contained is within the centre column. Load-relieving clamps on the adjustment plate shall secure the cables as follows: Fig 5.7 - Electrical Connections Fig 5.7a – Cable fixing locations ......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 31: Customer Connections
Note: - The GlasStile should always have an independent fire signal. If an echo signal is used the unit will not function correctly. P7 Motor Connections Description Red positive Black Negative ......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 32: Programming
To program the GlasStile GSR, the cladding must be removed. The Hand Held Programmer is then connected to the serial port on the Control PCB. The programmer allows five variables to be set to a range of different values.
Page 33: Program Options
Panel 3 (Default) Programming the GlasStile GSR To enter programming mode the GlasStile GSR must be switched on and in a locked position. The Hand Held Programmer must be connected to P9 on the PCB. Before any new settings are made it is important that the present settings are defaulted.
Page 34: Testing After Installation
Testing after Installation When installation is completed, test the system by switching off/on. GlasStile GSR will now search for a zero position (INDEX 0). Do not interfere with the gates until this has been achieved and the brake has been activated in the home position.
Page 35: Section 6 Maintenance
Section 6 Maintenance Maintenance General Care The GlasStile GSR Entrance Gate should be cleaned and greased at regular intervals, using the following approved materials. Routine Cleaning, all finishes Cleaning agent. Soap or mild detergent water. Action: Sponge rinse with clean water, wipe dry as necessary...
Page 36 POWER to be ON.  Loosen the three adjustment screw locking nuts.  Adjust the screws Clockwise to their lowest position and then back off a quarter to half a turn......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 37: Trouble Shooting
 Bearing for correct alignment. Loosen and re-tighten bearing  Transmission to the Optical Check connections and Unit replace if unserviceable  Pulley Belt for tension Adjust & replace if unserviceable ......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 38 ......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 39: Section 7 Spare Parts
Section 7 Spare Parts Spare Parts Recommended Spare Parts Quantities listed are per GlasStile GSR over a 24-month period. Table 7.1 – Recommended Spare Parts Code Description SM-BO-GS-0001 Motor/Gearbox G42x40 40VDC SE-FU-GS-0001 Fuse Q/B 20mm 2.A SM-TR-GS-0001 Transformer Toroidal SM-CB-GS-0001 Timing Belt (2.5 x 80T)
Page 40: Section 8 Declaration Of Conformity
Section 8 Declaration of conformity Declaration of conformity ......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 41 Notes ......CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009...
Page 42 Gunnebo AB, Box 5181, SE-402 26 Goteborg, SWEDEN. Tel +46-31 83 68 00, Fax +46-31 83 68 10 www.gunnebo.com Note: In pursuit of its policy of continuous refinement and improvement, Gunnebo Entrance Control Ltd reserves the right to modify design and details......
