Summary of Contents for PROPOINT 8676934
Page 1

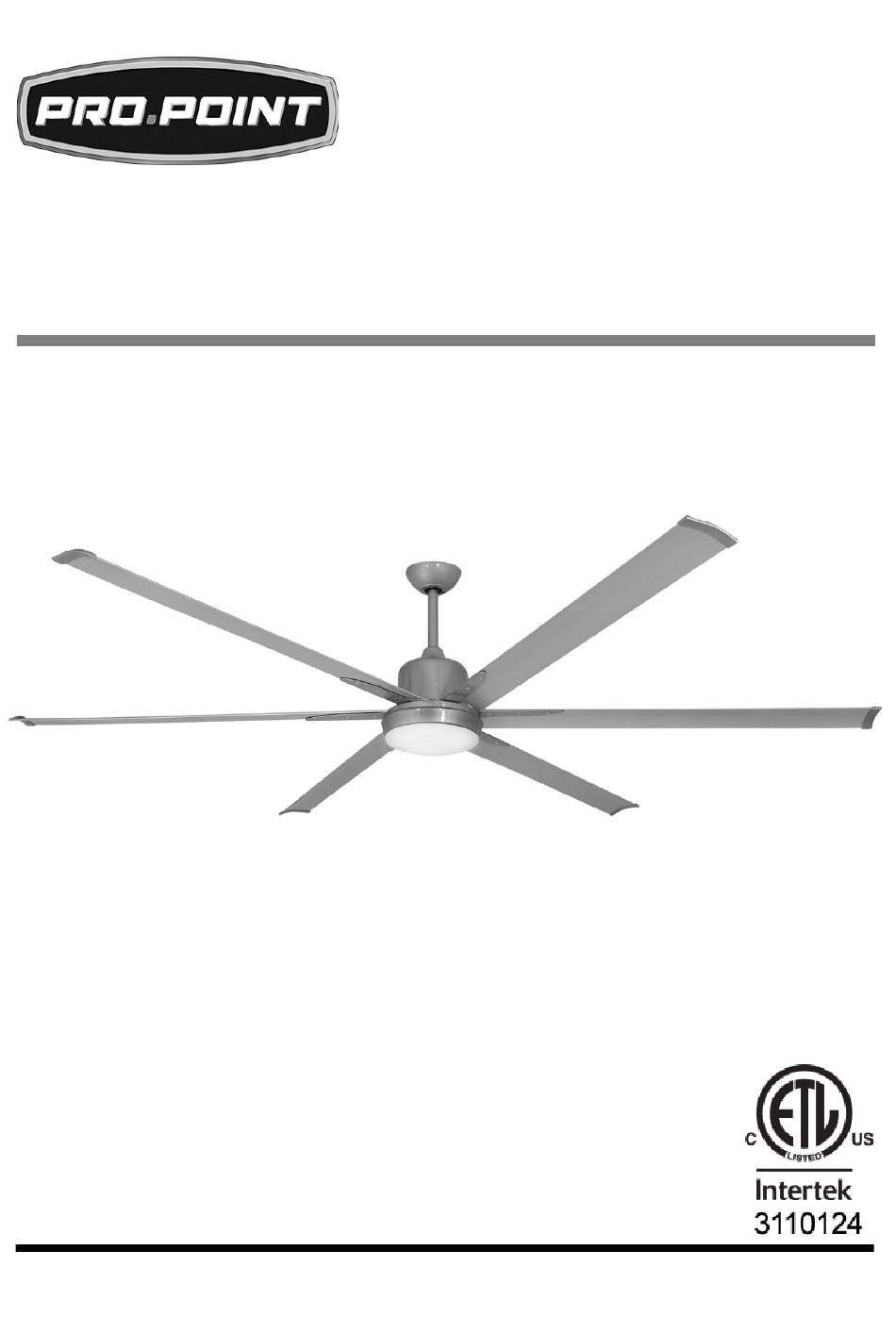

V1.2 8676934 84 IN. INDUSTRIAL CEILING FAN USER MANUAL Please read and understand all instructions before use. Retain this manual for future reference.
8676934 84 IN. INDUSTRIAL CEILING FAN V1.2 84 IN. INDUSTRIAL CEILING FAN SPECIFICATIONS Size 84 in.(213.36 cm) Downrod Length 9 in. (22.86 cm) Downrod Diameter 3/4 in. (1.90 cm) Construction Aluminum Blades Number of Speeds 6 Speed Reversible Voltage Rating...
V1.2 84 IN. INDUSTRIAL CEILING FAN 8676934 DANGER! This notice indicates an immediate and specific hazard that will result in severe personal injury or death if the proper precautions are not taken. WARNING! This notice indicates a specific hazard or unsafe practice that could result in severe personal injury or death if the proper precautions are not taken.
8676934 84 IN. INDUSTRIAL CEILING FAN V1.2 Wear gloves that provide protection based on the work materials or to reduce the effects of tool vibration. Wear protective clothing designed for the work environment and tool. 4. Non-skid footwear is recommended to maintain footing and balance in the work environment.
V1.2 84 IN. INDUSTRIAL CEILING FAN 8676934 capable of supporting 35 lb (15.87 kg) or less. Use the mounting hardware provided with the outlet box. 4. Only use UL/ETL listed light kits if installing kits that are not provided with the fan. Refer to the kit's manual for installation procedures.
8676934 84 IN. INDUSTRIAL CEILING FAN V1.2 Do not expose the tool to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Do not alter any parts of the tool or accessories. All parts and accessories are designed with built-in safety features that may be compromised if altered.
Page 7
V1.2 84 IN. INDUSTRIAL CEILING FAN 8676934 Attach the mounting bracket (#1) to the outlet box (not included) using the appropriate hardware. See Fig. 1. Remove the cross pin (Fig. 2-1) and cotter pin (Fig. 2-2) Fig. 2 Fig. 1 from the downrod (Fig.
8676934 84 IN. INDUSTRIAL CEILING FAN V1.2 Feed the motor lead wires (Fig. 5-1) through the downrod. Insert the downrod assembly into the yoke (Fig. 5-2). Insert the cross pin (Fig. 5-3) from Step 2 through the yoke and downrod. Secure with the cotter pin (Fig. 5-4) from Step 2.
V1.2 84 IN. INDUSTRIAL CEILING FAN 8676934 2.1 Connect the white wire from the house to the white wire from the fan. 2.2 Connect the black wire from the house to the black wire from the fan. 2.3 Connect the ground wire from the house to the green wires from the downrod and the mounting bracket.
8676934 84 IN. INDUSTRIAL CEILING FAN V1.2 INSTALLING THE BLADES Attach the blades (#6) to the fan assembly (#5) using the flat washers (#11) and the blade screws (#15). Fig. 10 INSTALLING THE LIGHT KIT Fig. 11 Fig. 12 Fig. 13 Install the bulbs (#7) to the medium base sockets (Fig.
V1.2 84 IN. INDUSTRIAL CEILING FAN 8676934 SETTING THE REMOTE AUTOMATIC SETUP The fan comes with a learning remote for easy setup. Remove the battery cover (Fig. 14-1). Install the provided 12V 23AE battery (Fig. 14-4). Switch the circuit breakers on.
Page 12
8676934 84 IN. INDUSTRIAL CEILING FAN V1.2 Press the SET button (Fig. 15-1) for 3 to 5 seconds. The fan will start its programming cycle and do the following: 6.1 Rotate clockwise for 2-1/2 minutes. 6.2 Stop. 6.3 Rotate counterclockwise for 2-1/2 minutes.
V1.2 84 IN. INDUSTRIAL CEILING FAN 8676934 Once the second fan’s remote has been programmed, switch off the circuit breakers. Reconnect the black wires on the first fan and secure using the wire connector. Switch on the circuit breakers. Each fan should respond to its own remote.
Page 14
8676934 84 IN. INDUSTRIAL CEILING FAN V1.2 CLEANING Wipe the surface with a clean, moist cloth. Do not use solvents. DISPOSAL Recycle a tool damaged beyond repair at the appropriate facility. TROUBLESHOOTING Visit a Princess Auto Ltd. location for a solution if the tool does not function properly or parts are missing.
8676934 84 IN. INDUSTRIAL CEILING FAN V1.2 PARTS LIST DESCRIPTION Mounting Bracket Downrod Canopy Yoke Cover Fan Assembly Extruded Aluminium Blades 13W CFL Bulb Glass Shade Bottom Plate Remote Flat Washer for Mounting Plate Flat Washer for Blades Spring Washer...
Page 17
V 1,2 8676934 VENTILATEUR DE PLAFOND DE 84 PO DE QUALITÉ INDUSTRIELLE MANUEL D'UTILISATEUR Vous devez lire et comprendre toutes les instructions avant d'utiliser l'appareil. Conservez ce manuel afin de pouvoir le consulter plus tard.
8676934 VENTILATEUR DE PLAFOND DE 84 PO V 1,2 DE QUALITÉ INDUSTRIELLE VENTILATEUR DE PLAFOND DE 84 PO DE QUALITÉ INDUSTRIELLE SPÉCIFICATIONS Taille 213,36 cm (84 po) Longueur de la tige de descente 22,86 cm (9 po) Diamètre de la tige de descente...
V 1,2 VENTILATEUR DE PLAFOND DE 84 PO 8676934 DE QUALITÉ INDUSTRIELLE DÉFINITIONS DE DANGER Veuillez-vous familiariser avec les avis de danger qui sont présentés dans ce manuel. Un avis est une alerte indiquant qu'il existe un risque de dommage à la propriété, de blessure ou de décès si on ne respecte pas certaines instructions.
8676934 VENTILATEUR DE PLAFOND DE 84 PO V 1,2 DE QUALITÉ INDUSTRIELLE SÉCURITÉ PERSONNELLE AVERTISSEMENT ! Portez de l'équipement de protection personnelle homologué par l'Association canadienne de normalisation (CSA) ou l'American National Standards Institute (ANSI). ÉQUIPEMENT DE PROTECTION PERSONNELLE Portez toujours des lunettes antiprojections qui offrent une protection frontale et latérale pour les yeux.
V 1,2 VENTILATEUR DE PLAFOND DE 84 PO 8676934 DE QUALITÉ INDUSTRIELLE CONSIGNES DE SÉCURITÉ SPÉCIFIQUES DANGER ! Ne permettez PAS au confort ou à votre familiarisation avec l'outil (obtenus après un emploi répété) de se substituer à une adhésion stricte aux règles de sécurité de l'outil.
Page 22
8676934 VENTILATEUR DE PLAFOND DE 84 PO V 1,2 DE QUALITÉ INDUSTRIELLE Ne fixez pas les pales du ventilateur avant de fixer le carter du moteur de ventilateur. Si vous installez plus d’un ventilateur de plafond, évitez de mélanger les pales.
V 1,2 VENTILATEUR DE PLAFOND DE 84 PO 8676934 DE QUALITÉ INDUSTRIELLE Ne modifiez aucune partie de l'outil ou des accessoires. Toutes les pièces et tous les accessoires sont conçus avec des dispositifs de sécurité intégrés qui seront compromis s'ils sont modifiés.
Page 24
8676934 VENTILATEUR DE PLAFOND DE 84 PO V 1,2 DE QUALITÉ INDUSTRIELLE SUSPENSION DU SYSTÈME AVERTISSEMENT ! Avant de commencer, fermez les disjoncteurs correspondants sur le panneau électrique afin de prévenir les chocs électriques. AVERTISSEMENT ! Utilisez une boîte à prises capable de soutenir un poids maximal de 15,87 kg (35 lb) pour empêcher...
Page 25
V 1,2 VENTILATEUR DE PLAFOND DE 84 PO 8676934 DE QUALITÉ INDUSTRIELLE 4. Insérez le couvercle de chape (fig. 4-1), l’anneau décoratif et la monture (fig. 4-2) sur la tige de descente. fig. 4 fig. 5 fig. 6 Insérez les fils de connexion du moteur (fig. 5-1) dans la tige de descente.
Page 26
8676934 VENTILATEUR DE PLAFOND DE 84 PO V 1,2 DE QUALITÉ INDUSTRIELLE RACCORDER LES FILS Assemblez la vis à bois (n 14), la rondelle à ressort 12), la rondelle plate (n 11) et le câble de sécurité de la manière décrite à...
Page 27
V 1,2 VENTILATEUR DE PLAFOND DE 84 PO 8676934 DE QUALITÉ INDUSTRIELLE 2.4 Reliez les extrémités au moyen des connecteurs (#18) prévus à cet effet. 2.5 Enfoncez les fils doucement à l’intérieur de la boîte de jonction en vous assurant d’orienter les connecteurs vers...
8676934 VENTILATEUR DE PLAFOND DE 84 PO V 1,2 DE QUALITÉ INDUSTRIELLE INSTALLATION DE LA TROUSSE D’ÉCLAIRAGE fig. 11 fig. 12 fig. 13 Installez les ampoules (n 7) dans les douilles de base moyennes (fig. 11-1). Fixez l’abat-jour en verre (n 8) en le vissant dans le sens horaire dans le logement de la trousse d’éclairage.
Page 29
V 1,2 VENTILATEUR DE PLAFOND DE 84 PO 8676934 DE QUALITÉ INDUSTRIELLE IMPORTANT ! Si le ventilateur ne réagit pas à la télécommande, passez à l’étape 6 du processus de montage manuel (consultez la section suivante). 5. Installation du couvercle de pile.
Page 30
8676934 VENTILATEUR DE PLAFOND DE 84 PO V 1,2 DE QUALITÉ INDUSTRIELLE ventilateur passera en mode de programmation et se comportera comme suit : 6.1 Il tournera dans le sens horaire pendant 2 1/2 minutes. 6.2 Arrêt. 6.3 Il tournera dans le sens antihoraire pendant 2 1/2 minutes.
V 1,2 VENTILATEUR DE PLAFOND DE 84 PO 8676934 DE QUALITÉ INDUSTRIELLE Abaissez la monture du premier ventilateur et débranchez les fils noirs. Fixez le connecteur au fil noir provenant du boîtier. Le premier ventilateur se souviendra de son réglage actuel.
8676934 VENTILATEUR DE PLAFOND DE 84 PO V 1,2 DE QUALITÉ INDUSTRIELLE Inspectez les composants de l'outil régulièrement. Réparez ou remplacez les composants endommagés ou usés. Employez seulement des pièce autorisées. Utilisez seulement des accessoires conçus pour être utilisés avec cet outil.
Page 33
V 1,2 VENTILATEUR DE PLAFOND DE 84 PO 8676934 DE QUALITÉ INDUSTRIELLE RÉPARTITION DES PIÈCES Visitez www.princessauto.com pour plus d'informations...
8676934 VENTILATEUR DE PLAFOND DE 84 PO V 1,2 DE QUALITÉ INDUSTRIELLE LISTE DES PIÈCES DESCRIPTION QTÉ Support de montage Tige de descente Monture Couvercle de chape Ensemble de ventilateur Pales en aluminium extrudé Ampoule LFC de 13 W Abat-jour en verre Plaque inférieure...
Page 35
V 1,2 VENTILATEUR DE PLAFOND DE 84 PO 8676934 DE QUALITÉ INDUSTRIELLE Visitez www.princessauto.com pour plus d'informations...
Page 36
8676934 VENTILATEUR DE PLAFOND DE 84 PO V 1,2 DE QUALITÉ INDUSTRIELLE En cas de questions techniques, appelez le 1-800-665-8685...
