Summary of Contents for iMettos J210S

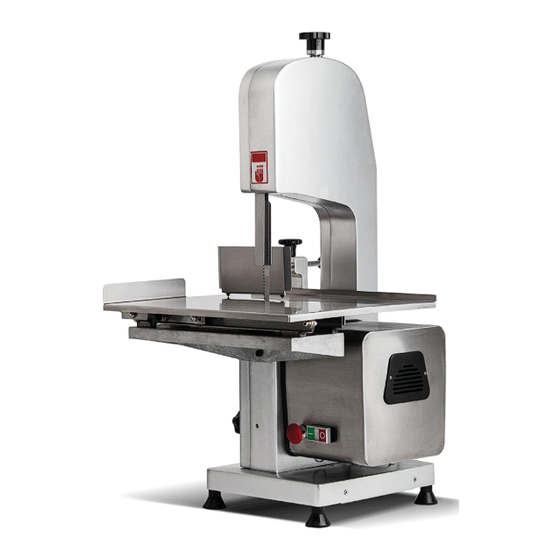

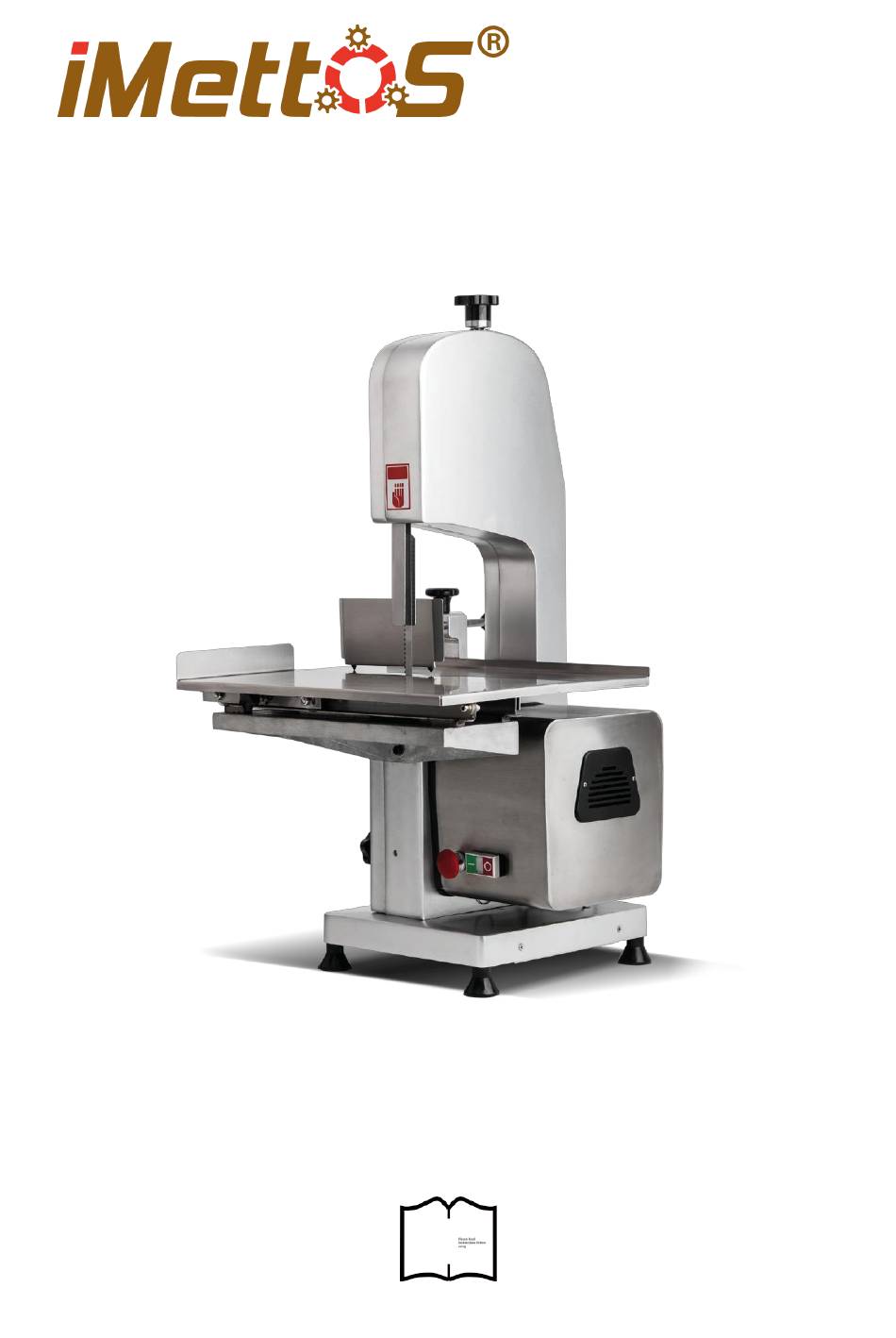

- Page 1 Bone Saw Machine Instruction Manual For Your Own Safety, Read Instruction Manual Before Operating this Equipment...
- Page 2 - 2-...
-
Page 3: Table Of Contents
CONTENTS 1. Breif Introduction & Safety Instruciton 2. Charactor 3. Components 4. Parts Explode Diagram 5. Operation 6. Cleanning 7. Parts Name Reference table 8. Technical Parameters 9. Packing List - 3-... -
Page 4: Breif Introduction & Safety Instruciton
Brief Instruction • The instruction manual shows the safety operation for user reference. • Must read the instructions carefully and correct understanding of its operation methods and various considerations, then operate or repair and maintenance • Keep this manual and placed near the machine, so that can check at any time ！ WARNING SAFTEY INSTRUCTIONS • Please wear prope working clothes、Security posture and operate correctly ！ • Before use, please check again for this machine. Please be sure to check for the worktable of activities if it will be changed in transit, if there's any loose for fastening screws, if there is a shift of motor back cover! • Please make sure to install leakage protection devices, must be connected with the earth wire! ！... -
Page 5: Charactor
Charactor 1. Too Tight protection device of band saw! 2. The motor overheating protection device. 3. Power off when door openning safety protection device. 4. 0.2 seconds for the emergency brake protection device, 10 times beyond the European Union's safety standards. (eu standards: EN60335-2-64 20th article 111) 5. Large working table, work more secure, more easily. 6. Driven wheel detachable wash, no health corner. 7. Machines can be directly spray irrigation, clearn more easily and health. Components Saw Band tensioning Knob Driven Wheel Vertical Clamping device Top Door Locker Saw band Meat Stopper Fixer Meat stopper Carrying table Saw Protecting Cover Table Slider ON / OFF Switch Bottom Door Emergency Stop Locker Meat Residue Driving Wheel Collecting Pan - 5-... -
Page 6: Parts Explode Diagram
- 6-... - Page 7 - 7-...
-
Page 8: Operation
Operation A. Loosen the meat stopper B. Confirm the cutting thickness by adjusting the distance between front and rear meat stoppers and band saw C. Start the machine DEF.Put the food on movable workting table, then Take saw guard on the right protection level, promote job boards, to bring food to the saw (The driving speed differs according to the different food, and bases on the normal running of saw band as a limition. Repeat the operation for times until the cutting operation is completed, then trun off the power supply! Never Position Fingers or thumbs in line with the cut! Cleaning A. Open the protection door B. Take out the residue pan - 8-... - Page 9 CDE. Lossen the tensioning Knob to relax the band saw then demount the saw (Wearing gloves before )。One hand press down the tensioning knob, one hand upward lift the Driven wheel out and clean F. Please use low pressure squirt gun to Notice: spray the interior minced meat, then 1) During remounting the saw band, reinstallment in order. Electrical check the tooth direction, position and parts(as exterior control make sure that the saw band shall knob,switch..) can't be directly be close to the backing wheel face of sprayed by squirt gun. lower clamping device(The position of backing wheel has been preset at delivery) 2) Rotate top wheel with hand and make sure that it runs smoothly and the saw teeth stand out on the wheel (if necessary, it can be realized to adjust the regulating device ont the top wheel) - 9-...
-
Page 10: Parts Name Reference Table
Parts Description Parts Description Parts Description Bottom Locking Block Meat Stopper Bottom Door locker seat Motor Saw Protecting Cover Carrying Plate Top Locking Block Carrying Plate Seat Top Door locker seat Movable working table Door Right Slide Rail Driven wheel Cover The right wheel Frame Driven wheel Locking Block Driven wheel Bearing（6004） Locking handle Sealing ring Locking bolt Driven wheel axle Roller shaft Driven wheel stand Roller axle（627） Driven slide carriage Roller Adjusting nut Rail carriage frame Spring seat Left Slide Rail Spring Left Roller frame Tensioning Knob Meat Scrapping Plate tensioning nut Meat Scrapping seat tensioning shaft screw Meat Scrapping Plate Frame bolt... -
Page 11: Technical Parameters
Tech. Parameter Name Meat Bone Saw Model J210S/ J210 Machine Size 550×500×920mm Packing Size 585×585×980mm Band Saw Thickness 0.5mm Band Saw Length 1650mm Band Saw width 16mm Power Supply ~110V/220V / 50/60 Hz Power 750W Cutting Thickness 5 ～ 155mm Working table Size 505×415mm... -
Page 12: Packing List
Name Meat Bone Saw Model J320S/ J320 Machine Size 500×470×1200mm Packing Size 670×630×1270mm Band Saw Thickness 0.5mm Band Saw Length 2040mm Band Saw width 16mm Power Supply ~110V/220V / 50/60 Hz Power 1100W Cutting Thickness 5 ～ 200mm Working table Size 530×430mm Movable working table Range 300mm... - Page 13 Limited www.imettos.co.uk...
