Summary of Contents for EverExceed Smart IT Cabin SC3000

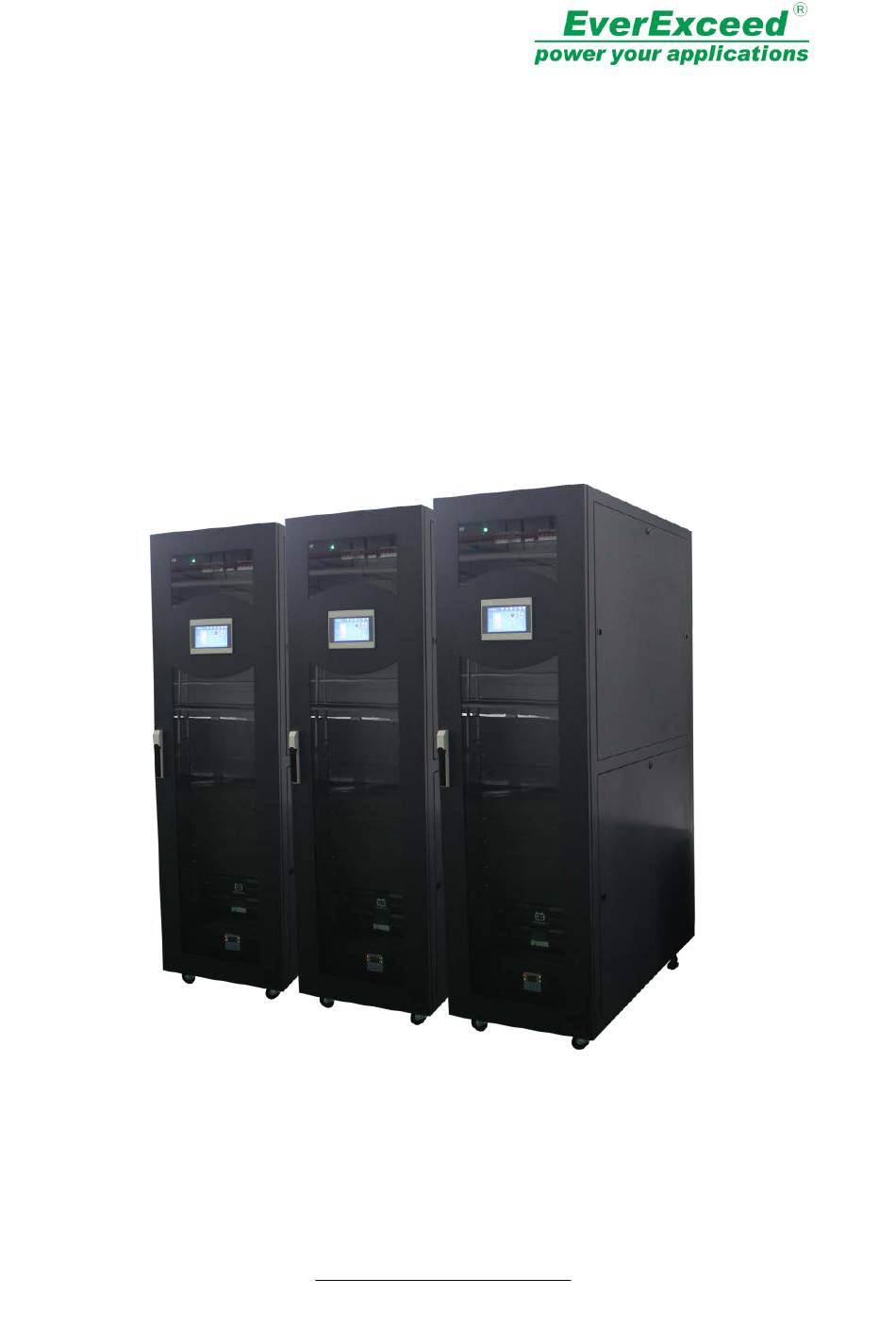

- Page 1 EverExceed Smart IT Cabin Solution User Manual EverExceed Industrial Co., Ltd. www.everexceed.com...
-
Page 2: Table Of Contents
EverExceed Smart IT Cabin Solution User Manual CONTENT Chapter 1 Overview………………………………………………………..…..……1 1.1 (Model Description)………………………………………………..…...…….1 1.2 Features………………………………………………………………...……. 2 1.3 Functional Components………………………………………….….…..…. 2 1.4 Operational Environment…………………………………………….……...3 Chapter 2 Preliminary Before Installation…………………………………….…. 4 2.1 Conveying, Unpacking and Inspection………………………………….…4 2.2 AC installing……………………………………………………………..……7 2.2.1 Instructions……………………………………………………….………8 2.2.2 Outside machine wiring diagram(Figure 2-4)………………..….……... - Page 3 EverExceed Smart IT Cabin Solution User Manual 4.2.5 Setting………………………………………………………………..…..18 4.2.6 LOG………………………………………………………………………22 4.3 Remote control………………………………………………………………24 Chapter 5 Maintenance…………………………………………………..………29 5.1 SAFETY INSTRUCTION…………………………………………………...29 5.2 AC System Maintenance…………………………………………………..29 5.3 UPS Power Distribution System Maintenance…………………………..31 5.4 Trouble shooting…………………………………………………………….31 www.everexceed.com Ⅱ...
-
Page 4: Chapter 1 Overview
Standard design, standard field installation, no need of raised floor and integrated delivery shorten the delivery period to great extent. The monitoring management with all range of EverExceed products, plug and play; it also provides energy consumption analysis. All these added valves can hardly be realized by separated purchase. -
Page 5: Features
Quick delivery and secure brand: settled at one go, built in one hour, started up during one day, all in EverExceed brand trust with no worry. 1.3 Functional Components The Smart IT Cabin mainly contains rack supporting system, power supply and distribution system;... -
Page 6: Operational Environment
EverExceed Smart IT Cabin Solution User Manual System type Component Main function Feature Used to store the 19”rack mount hardware equipment The whole cabinet system is totally Rack which complies with the enclosed when operating, to keep the supporting industry-standard(EIA-310-... -
Page 7: Chapter 2 Preliminary Before Installation
EverExceed Smart IT Cabin Solution User Manual to the wall or other obstacles is larger than 1.0m Ambient 0-40℃ Temperature 30%RH-95%RH(when the whole unit is operating in high temperature Ambient and high humidity environment, condensing water may appear on the... - Page 8 EverExceed Smart IT Cabin Solution User Manual preferable roads to avoid excess bumping. The component with package is shown in Figure 2-1. See table 2-1 for its ranges of dimensions and weight. Figure 2-1 Component with package Table 2-1 Range of dimensions and weight Range of dimension（mm）...
- Page 9 EverExceed Smart IT Cabin Solution User Manual Move the equipment to the nearest place to the final installing site, and then unpack it. The unpacking procedures are as follows: 1. Remove the packing materials Move the equipment of assembled package to an open, firm and level ground.
-
Page 10: Ac Installing
. During actual engineering installation, you need to estimate the weight-bearing capacity of the floor according to the total weight including the installed equipments. If you can not estimate the weight-bearing capacity, please consult the local EverExceed agent or EverExceed customer service office. 2.2 AC Installing 2.2.1 Instructions... -
Page 11: Outside Machine Wiring Diagram(Figure 2-4)
EverExceed Smart IT Cabin Solution User Manual 2.2.2 Outside machine wiring diagram (Figure 2-4) Figure 2-4 wiring diagram(detail in CAD drawing) 2.2.3 Connecting Copper Pipes 1. General Principles 1) Use copper pipes with quick thread connector to connect the indoor unit and the outdoor unit. -
Page 12: Chapter 3: Operation Instructions
EverExceed Smart IT Cabin Solution User Manual 3) Lubricate the male thread with refrigerant oil. 4) Thread the coupling halves together by hand to ensure that the threads mate properly. 5) Tighten the coupling body’s hexagon nut and union valve until a definite resistance is felt. -
Page 13: Startup
EverExceed Smart IT Cabin Solution User Manual 3.2 Startup The startup procedures are as follows: 1. Close the external input power switch. 2. Close the input air breaker downstream the UPS. 3. Close the main input air breaker on the MSC-PMU, SPD module air breaker, UPS input air breaker, AC input power air breaker, UPS output air breaker, lighting &... -
Page 14: Chapter 4 Operation On Display Panel
EverExceed Smart IT Cabin Solution User Manual 7. Check that all the equipment is powered off, and close all the doors of the cabinet. Chapter 4 Operation on Display Panel 4.1 The Smart IT Cabin Home page The Smart IT Cabin Homepage is shown in Figure 4-1. -
Page 15: Menu Items
EverExceed Smart IT Cabin Solution User Manual Figure 4-2 System menu structure of Smart IT Cabin 4.2 Menu items 4.2.1 Main information of Smart IT Cabin On the display screen, click the System menu at the upper part, the system page will appear, displaying air flow status, cabinet cold aisle temperature, hot aisle temperature, AC status and UPS status, as shown in Figure 4-3. -
Page 16: Environment
EverExceed Smart IT Cabin Solution User Manual The system page is divided into four parts, the left part displays air flow cycle mode of Smart IT Cabin, front door temperature and rear door temperature; the upper right part displays thermal management mode inside the system, including AC on/off status and emergency fan on/off status. - Page 17 EverExceed Smart IT Cabin Solution User Manual Figure 4-5 Environment temperature (setting) Figure 4-6 Example of setting valve The default valves of temperature alarm are as follows: The alarm upper limit of front door temperature sensor is 35°C, and the alarm lower limit is 0°C;...
-
Page 18: Power
EverExceed Smart IT Cabin Solution User Manual 4.2.3 Power Click the Power menu at the upper part of the page, the status page will appear, as shown in Figure 4-7. Figure 4-7 Power Status Page(1) Figure 4-8 Power Status Page(2) Click the setting submenu in the left part, the setting page appears, as shown in Figure 4-9. - Page 19 EverExceed Smart IT Cabin Solution User Manual Figure 4-9 Power Setting Page Click the control submenu in the left part, the control page appears, as shown in Figure 4-10. You can realize on/off control over each place of the PDU through clicking the OFF/ON icon.
-
Page 20: Thermal
EverExceed Smart IT Cabin Solution User Manual 4.2.4 Thermal Click the thermal menu at the upper part of the page, the status page will appear, as shown in Figure 4-11 Figure 4-11 Thermal Status Page Click the thermal submenu at the left part, the thermal page will appear, as shown in Figure 4-12. -
Page 21: Setting
EverExceed Smart IT Cabin Solution User Manual Figure 4-12 AC Management Page 4.2.5 Setting On the Smart IT cabin display panel, click the Setting menu on top of the page, six submenues appear, including Password setting, System Information, Language setting, Web setting, Alarm Telephone Setting, Message Alarm Setting Password. - Page 22 EverExceed Smart IT Cabin Solution User Manual Figure 4-13 Password Setting System Information Click the Information submenu under the Setting menu, the page shown in Figure 4-14. The system name hardware version software version and product serial number available checked on this page.
- Page 23 EverExceed Smart IT Cabin Solution User Manual Language Setting Click the Language setting submenu under the Setting menu, the page shown in Figure 4-15. Chinese, English available choice, other language available to add as option. Figure 4-15 System Information Web Setting Click the Web setting submenu under the Setting menu, the page shown in Figure 4-16.
- Page 24 EverExceed Smart IT Cabin Solution User Manual Figure 4-16 IP setting Phone number Setting Click the Alarm Telephone setting submenu under the Setting menu, the page shown in Figure 4-17. You can set 5 telephone number, enter number of the Alarm Telephone and tick on the right side to finish the process.
-
Page 25: Log
EverExceed Smart IT Cabin Solution User Manual Message Alarm Setting The Smart IT cabin support GMS standard phone card, inset the card into the message alarm module, and inset the signal receiver to realize sending the Message Alarm. Click the Message Alarm Setting submenu under the Setting menu, the page shown in Figure 4-18. - Page 26 EverExceed Smart IT Cabin Solution User Manual Figure 4-19 Alarm Information When the system has an alarm, there will be an alarm sound. If you want to turn off the alarm sound, click the Alarm button. Click the Log menu on the submenu, you can check and view current Alarm Alert, as shown in Figure 4-20.
-
Page 27: Remote Control
EverExceed Smart IT Cabin Solution User Manual Figure 4-21 Historical Alarm Page Figure 4-22 Control Page 4.3 Remote Control This system provides a new solution for remote monitoring. No matter where the equipment is located, its operation can be monitored as long as Internet is available, so the trouble or faulty can be known and solved in the first time. - Page 28 EverExceed Smart IT Cabin Solution User Manual connect local network. Moreover, the users can connect multiple devices simutaneously. The remote interface is the same as the touch screen display, as shown in figure 4-23. Figure 4-23 Remote Control 4.3.1 The way of remote control Before the remote control, you need to install Easyacess 2.0 and EsayBuilder...
- Page 29 EverExceed Smart IT Cabin Solution User Manual Figure 4-25 EasyAccess2.0 interface Step 2: Login on EasyAccess 2.0 software on your PC, enter the Domain account name and password, the page shown in Figure 4-26. Figure 4-26 Login Page Step 3: After login account successfully, the page shown in Figure 4-27. The user can manage multiple devices as shown.
- Page 30 EverExceed Smart IT Cabin Solution User Manual Figure 4-27 connect interface Step 4: After on-line, click “ ” icon to enter the remote control page, and then click the black dot as shown in Figure 4-30, you can enter the major interface to realize the remote control.
- Page 31 EverExceed Smart IT Cabin Solution User Manual Figure 4-29 connect interface Figure 4-30 connect interface 28 / 32 www.everexceed.com...
-
Page 32: Chapter 5 Maintenance
3 ． Ignoring the safety instructions will endanger personnel safety and environment. 4. Unsuitable components will lead to performance decrease or equipment shutdown, it is commended to use the components made by EverExceed. 5.2 AC System Maintenance The AC system maintenance includes electric inspection, indoor unit maintenance, and outdoor unit maintenance. - Page 33 EverExceed Smart IT Cabin Solution User Manual 1) Fan Since the fan kit operates 24 hours every day continuously, any unusual airflow obstruction must be cleared in time to avoid the damage to the cooling system and other system components caused by reduced air volume.
-
Page 34: Ups Power Distribution System Maintenance
EverExceed Smart IT Cabin Solution User Manual 5.3 UPS Power Distribution System Maintenance Checking UPS status: Clean the UPS periodically, especially the ventilation holes, to ensure free airflow inside the UPS. If necessary, clean the UPS with a vacuum cleaner. - Page 35 EverExceed Smart IT Cabin Solution User Manual Door sensor alarm The closed doors are not Check all closed doors and closed completely close them The door sensor is not Readjust the installation installed well or damaged clearance Water leakage detective...
