Summary of Contents for SCHURR SCHURR cow-brush type B00

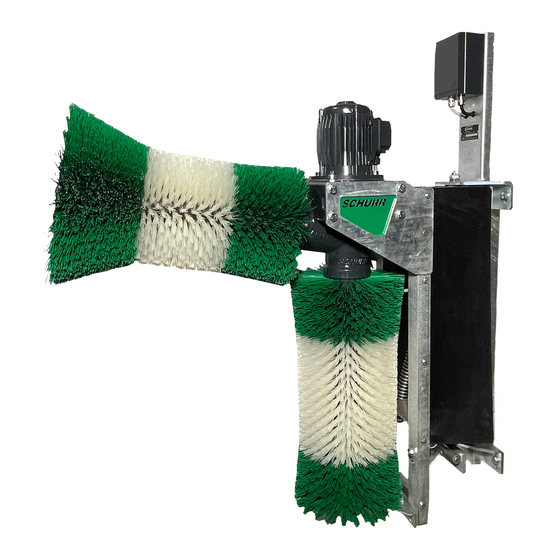

- Page 1 ENGLISH SCHURR cow-brush 2-brush-system Type B00 / Type C12 O P E R A T I N G I N S T R U C T I O N S Retain for future reference...
-
Page 2: Table Of Contents
7 Maintenance and repair ..................page 22 8 Disposal ......................page 25 9 Parts list ......................page 26 1 Identification data Model: SCHURR cow-brush type B00 (Standard-motor) SCHURR cow-brush type C12 (EC-motor) Serial number: see designation plate on device Year of manufacture:... - Page 3 SCHURR cow-brush Type B00/C12 Purpose of document These operating instructions are designed to make the person responsible for the SCHURR Cow-brush familiar with the following: mode of operation operating safety notes maintenance Operating personnel The SCHURR Cow-brush may be operated exclusively by persons who have read and understood the operating instructions and safety notes.
-
Page 4: Basic Safety Notes
to read and understand the safety chapter and warning notes in these operating instructions. Schurr-Gerätebau GmbH is available for enquiries where questions remain unanswered. 2.4 Dangers when operating the machine The machine is constructed according to state of the art technology and recognised technical safety controls. -
Page 5: Www.schurr-Geraetebau.de
SCHURR cow-brush Type B00/C12 Repair work not properly performed. Loose collars on the animals. Tail hair (tufts) too long - these should be kept short. (not longer than 10-15cm) Emergencies caused by the introduction of foreign bodies and force majeure Similarly, parts subject to wear and tear are excluded from warranty claims. -
Page 6: Www.schurr-Geraetebau.de
Symbol Erklärung Do not lift at the engine! Before opening disconnect mains. Seriel no. of the SCHURR cow-brush 2.7.2 Organisational measures All safety facilities are to be checked regularly. 2.7.3 Protective equipment Prior to every startup of the machine, all protective equipment must be properly installed and functional. -
Page 7: Www.schurr-Geraetebau.de
SCHURR cow-brush Type B00/C12 2.7.6 Safety measures in normal operation The machine is to be operated only when all safety facilities are fully functional. Before switching the machine on, ensure that no-one could be placed in danger by the machine starting up. -
Page 8: Product Description
SCHURR cow-brush Type B00/C12 3 Product description 3.1 Use according to design The machine is intended solely for the dry cleaning of cattle/milking cows. Alternative or additional use is considered to be not according to design and constitutes misuse of the system. -
Page 9: Www.schurr-Geraetebau.de
SCHURR cow-brush Type B00/C12 3.5 Technical data General data Overall machine B x D x H 310 x 1150 x 1250 mm Weight approx. 135 kg Rotation speed 60/min Brushes 410 mm/310 mm Length of brushes 650 mm/550 mm Nylon, ... -
Page 10: Www.schurr-Geraetebau.de
An electrical cable complying with the data specified in Chapter 3.5 must be provided at the installation site for the SCHURR Cow-brush. Installation of the SCHURR cow-brush to power supply may only be performed by a qualified electrician. 3.7 Configuration of the machine Normal equipment is: ... -
Page 11: Assembly And Function
SCHURR cow-brush Type B00/C12 4 Assembly and function 4.1 Mechanical assembly Fig. 3.0 View of the brush/gearbox component Designation Designation Lower clamping flange 65/25mm Upper brush 550mm long Upper shaft 40mm Lower shaft 25mm Upper clamping flange 80/40mm... -
Page 12: Www.schurr-Geraetebau.de
SCHURR cow-brush Type B00/C12 Fig. 3.1 View of the support frame component Designation Designation Plug 16 x 275mm – (lower) plug 255mm Bearing support bracket with hexagonal screws With hexagonal screw M 6 x 20 M 12 x 30 and square taper washers... -
Page 13: Www.schurr-Geraetebau.de
SCHURR cow-brush Type B00/C12 Fig. 3.2 View of wall mounting component Feb. 2017 Page 13 www.schurr-geraetebau.de... -
Page 14: Www.schurr-Geraetebau.de
SCHURR cow-brush Type B00/C12 Designation Designation Lower vertical arm Electric box with 2m cable+plug with lubricating nipple Hexagonal screw M20x100 with nuts, square taper 16x215mm plug with Allen screw M 5x35 washers and lubricating nipple Lower side arm Upper vertical arm... -
Page 15: Www.schurr-Geraetebau.de
SCHURR cow-brush Type B00/C12 Meaning of the LED‘s (SCHURR cow-brush type B00) WORK = If this LED lights up the motor is working, cow-brush will turn all the time ERROR = „protection mode“ After 10x reversing the cow-brush switches off, at this time the light is flashing red. If this LED lights up permanently, the plug (power supply) has to be removed and reinserted (RESET) DEFECT = Fault =>... -
Page 16: Www.schurr-Geraetebau.de
4.2 Functional description When an animal is in the SCHURR Cow-brush, and the brushes are turned just a little bit, they begin to rotate autmatically. The animals are cleaned by the rotating brushes, for as long as the brushes are turning. When the animal exits the SCHURR Cow-brush, the brushes are switched off after a set time by means of time relay control. -
Page 17: Commissioning
Ensure that the speed is kept low, as the device might otherwise fall off. Do not drive on downward sloping paths or ramps. Where an auxiliary apparatus cannot be used, the SCHURR Cow-brush should be carried by at least 2 persons. Feb. 2017 Page 17 www.schurr-geraetebau.de... -
Page 18: Www.schurr-Geraetebau.de
In the case where the device is attached to a pillar, support or plank wall, please consult Schurr Gerätebau GmbH for information on the dimensions necessary for suitable fastening. - Page 19 For example: fixing height from bottom to the upper screws holsteins – ca. 1530 mm-1570 mm brown – ca. 1520 mm-1550 mm Note: No guarantee or liability claims will be entertained where the SCHURR Cow-brush is not secured properly! Feb. 2017 Page 19 www.schurr-geraetebau.de...
-
Page 20: Www.schurr-Geraetebau.de
SCHURR cow-brush Type B00/C12 5.3.5 Power supply Danger! Electric voltage or current. Can lead to serious injury or death. Ensure that work with live parts and electrical connection is performed by a qualified and authorised electrician only. A qualified electrician should connect the power supply with the connecting terminal/ground clamp. -
Page 21: Operation
Call in a qualified electrician and have the defect repaired. Or request assistance from Schurr Gerätebau GmbH customer service. The SCHURR Cow-brush is running all the time, i.e. the motor is not stopping Possible cause Possible remedy Type B00 with standard motor: “adjust OFF limit”... -
Page 22: Maintenance And Repair
SCHURR cow-brush Type B00/C12 7 Maintenance and repair 7.1 Safety regulations Danger! Rotating brushes The motor is starting when the brushes are turned a little bit. It is possible for the brushes to catch a person, thereby causing injury. -
Page 23: Www.schurr-Geraetebau.de
SCHURR cow-brush Type B00/C12 7.3 Maintenance plan Work to be performed at regular intervals is listed in the maintenance plan. This work is divided into weekly monthly or operation-dependent activities. Maintenance plan Component and location Frequency What needs to be done? -
Page 24: Www.schurr-Geraetebau.de
SCHURR cow-brush Type B00/C12 7.4 Technical safety check The purpose of the technical safety check is to maintain the functionality and effectiveness of the safety equipment. The machine is equipped with facilities that ensure the safety and protection of the machine and its operating personnel. -
Page 25: Disposal
SCHURR cow-brush Type B00/C12 Changing the vertical brush: Loosen both screws (1) and turn the bearing support (5) away from the support bracket. Pull the bearing support (5) together with the plastic bearing (3) away from the shaft ... -
Page 26: Parts List
SCHURR cow-brush Type B00/C12 9 Parts list 9.1 List of individual components Designation Designation Upper brush 550mm long 16x215mm plug with Allen screw M 5x35 Upper shaft 40mm Upper vertical arm with lubricating nipples Upper protective plastic ring Upper side arm Upper clamping flange ... -
Page 27: 88524 Uttenweiler/Dentingen
The original operating instructions for the machine are in German. Dentingen, 2017 - Schurr Make sure that it’s schurr. More products from SCHURR GERÄTEBAU GMBH: www.schurr-geraetebau.de www.schurr-geraetebau.de Tel. +49 (0) 7374 / 91160 – 88524 Uttenweiler – MADE IN GERMANY– info@schurr-geraetebau.de www.facebook.com/schurrcowbrush www.youtube.com/schurrgeraetebau Feb.
