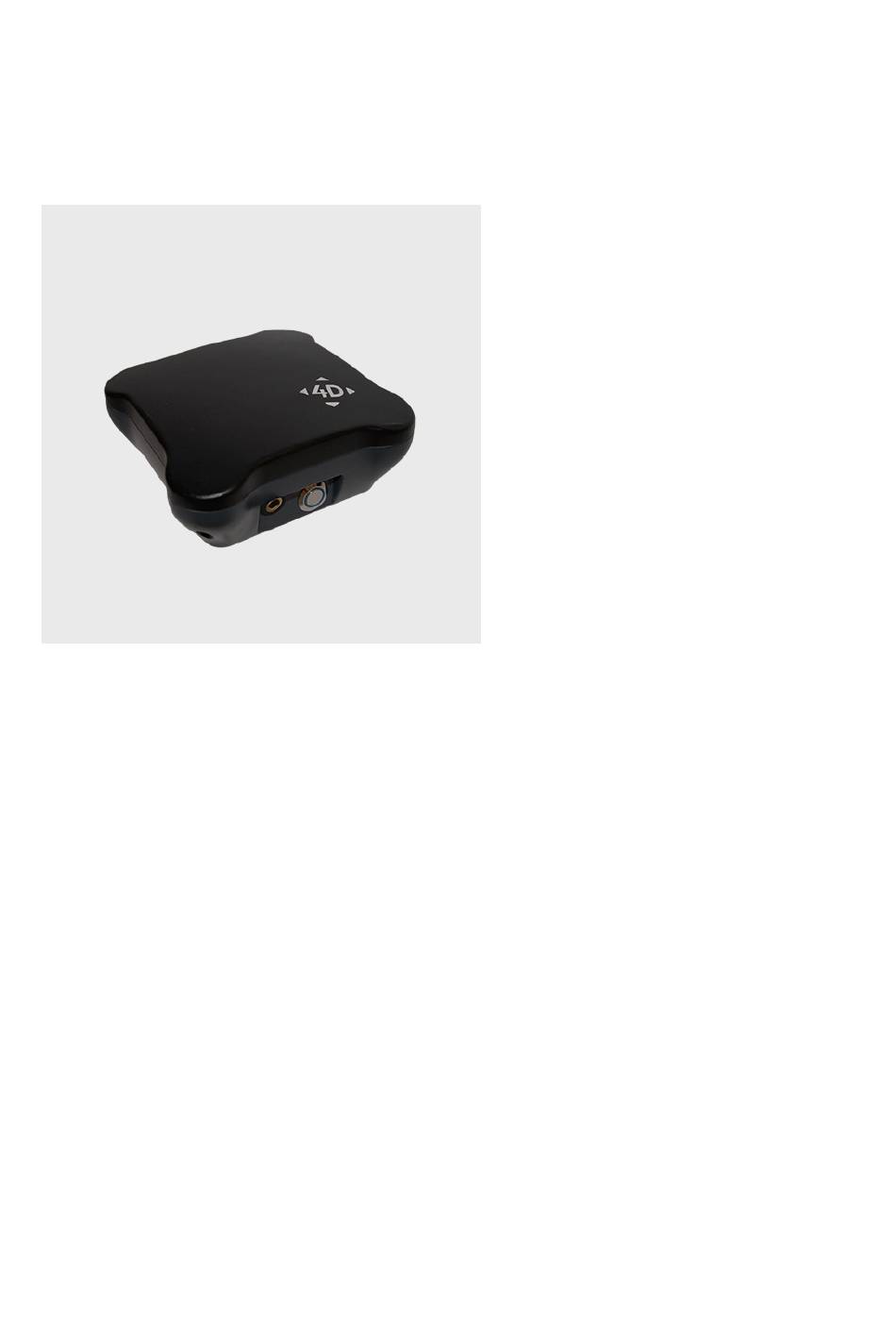

Base Station Mono
User guide
This manual provides instructions for using the REDcatch Base Station Mono. We place high value in
this documentation, but it is impractical to discuss all the possible applications of this product.
Therefore, this manual and related tutorials do not replace professional training, but should help to
prepare for training sessions and act as a reference thereafter.
Please contact your local distributor or us directly if you have need for a training session and
workflow integration at your place of work.
Do not hesitate to contact our support team directly if any questions arise on the topics described in
these documents.
REDcatch GmbH
Tschaffinis 14
6166 Fulpmes
Austria
office [at] REDcatch.at
www.REDcatch.at
+43 5225 20203
1
Advertisement
Table of Contents
Summary of Contents for REDcatch Mono
- Page 1 Base Station Mono User guide This manual provides instructions for using the REDcatch Base Station Mono. We place high value in this documentation, but it is impractical to discuss all the possible applications of this product. Therefore, this manual and related tutorials do not replace professional training, but should help to prepare for training sessions and act as a reference thereafter.
- Page 2 When using material from this document, please respect CC - BY - SA 4.0 https://creativecommons.org/licenses/by-sa/4.0/ and mention our company REDcatch GmbH, Austria and re-link our webpage.
-
Page 3: Table Of Contents
Contents Short instructions ............................ 4 Introduction ............................. 5 Use within photogrammetry workflow ....................6 Troubleshooting ............................7 Interpreting LED indicators ......................... 7 LED 1 – On/error ..........................7 LED 2 – Satellite indicator ........................ 7 Saving data ............................8 Advanced maintenance ........................... 8 Firmware updates .......................... -
Page 4: Short Instructions
Short instructions 1. Select a site for your base station that is clear of buildings and trees, has a clear view of the sky, and is in the vicinity of your project. 2. Mount the Base Station on a tripod by screwing gently onto the thread at the base of the unit. -
Page 5: Introduction
(PPK). Function The Base Station Mono records GNSS RINEX data (or corrected GNSS position data), which can be fed to postprocessing software (such as REDtoolbox) for correcting the position of a rover GNSS device. For this to be possible, the rover must also record GNSS RINEX data, and the base station data must be recorded from before the beginning of the project until after its end. -
Page 6: Use Within Photogrammetry Workflow
Use within photogrammetry workflow There are five main tasks involved in completing a photogrammetry project with the Base Station Mono and 3D ImageVector Mono (or equivalent rover GNSS device). These are shown in the image below. Preparation 1. Charge ImageVector, camera and Base Station. -
Page 7: Troubleshooting
Troubleshooting Interpreting LED indicators There are two LEDs on the front of the Base Station Mono that indicate its status. These are labelled LED 1 and LED 2 in the figure below. LED 1 – On/error This LED should stay on steadily whenever the base station is switched on. It is always useful to check that this LED is on, as sometimes you may mistakenly think you have turned on the base station. -
Page 8: Saving Data
Advanced maintenance Firmware updates You should only update the firmware after consultation with the REDcatch support team. If you need to update the firmware, you can do so through the following procedure. Read through these instructions completely before attempting the process. If you are unsure whether you need to update the firmware, or if anything in these instructions is unclear, contact REDcatch BEFORE attempting to do it yourself.
