Installation
Instructions
Read through the notes carefully before beginning as
different mounting plate positions and setups may be
required for different configurations.
IMPORTANT
CS carriages require a clean track running surface free
of any contamination or damage.
After installation but before lining, clean the full length
of the inside running surface of the track with a soft
rag to ensure no dirt, grit or aluminum swarf get into
the track. TAPE UP THE TRACK to ensure no dust or
debris enter the track during building works.
Please Note: Most of the time the carriages, SofStop
mechanism and activators can be inserted into one end
of the track after the track is mounted.
If there is no room, you will need to insert these
components before mounting the track.

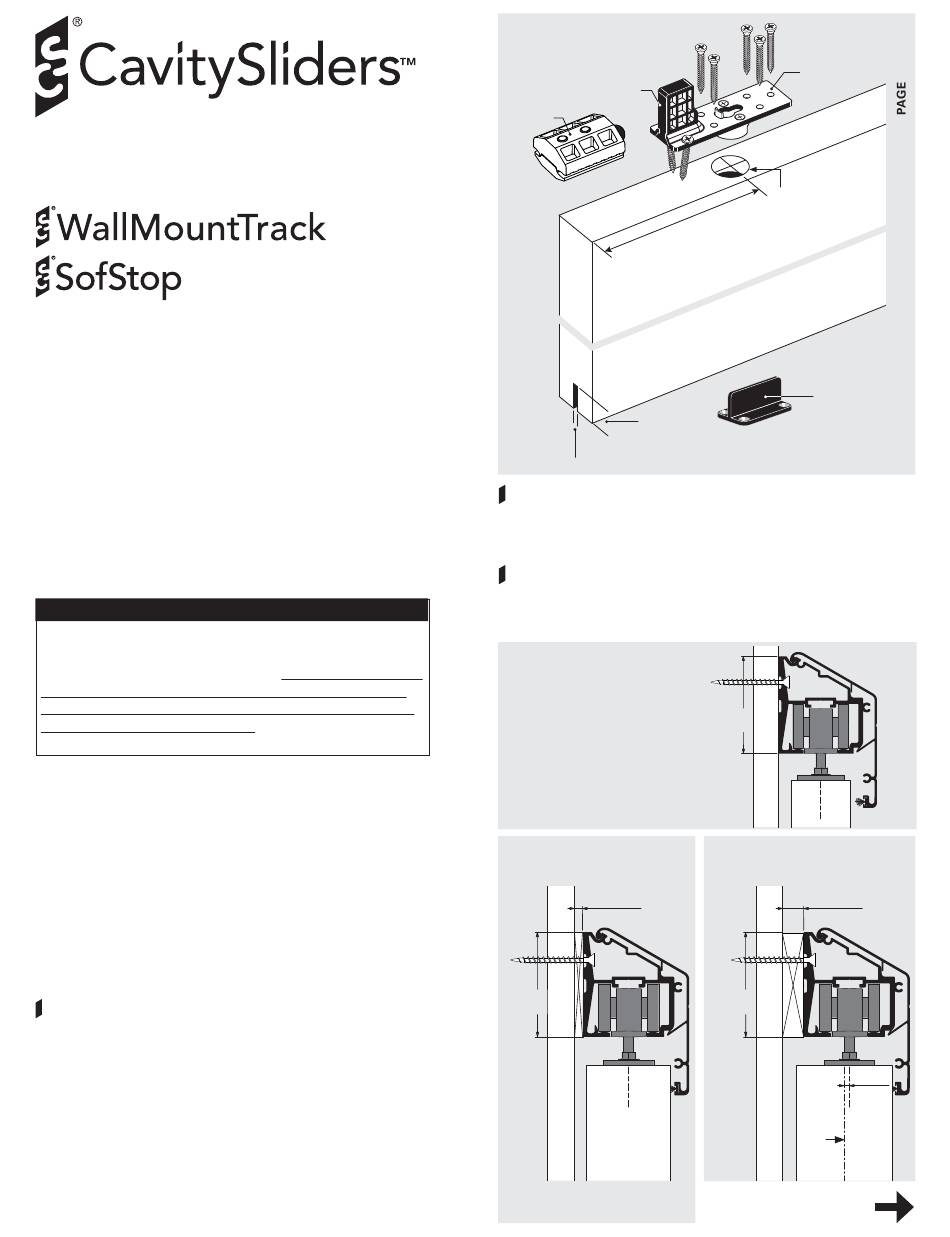

1.
Prepare the doors.
CS WallMount Track is designed to suit doors from
35-45mm thick (1-3/8" to 1-3/4") as standard.
If your doors are 2" thick, you will need to add a spacer.
If your doors are 2-1/4" thick, you will need to add a
spacer and offset the mounting plate as shown.
Drill mounting plate holes.
a) 1-3/8" & 1-3/4" thick doors.
Drill front and rear holes 150mm (6") in from the edge of
the top of your door leaf as shown (right).
Note: these mounting plates must be placed exactly in
the center of the door thickness.
b) 2" thick doors: Drill holes as above.
c) 2-1/4" thick doors: Drill holes as above, but offset
them 6.35mm (1/4") from the center of the door leaf as
shown.
Fit screws
as shown
Black
plastic
stop
Track
stop
150mm (6") to
center of boss
hole
20-21mm
(13/16")
5-5.5mm (1/4")
Groove the door.
At the bottom of the door, cut a groove to the dimension and
tolerance shown. Make it central to the door thickness and
absolutely straight.
.
Fit mounting plates
Screw the mounting plates to the front and rear top edge
of the door, making sure the black plastic stop is facing the
edge of the door.
1-3/8" & 1-3/4" thick doors
2" thick doors
6.35
spacer
mm
(1/4")
62mm
(2-7/16")
C L
© Cavity Sliders USA Inc.
Drawings are not to scale.
1
Mounting
plate
Drill ø25mm (1")
13mm (1/2")
deep
T-Guide
62mm
(2-7/16")
2-1/4" thick doors ONLY
Offset mounting plate by 1/4"
12.7
spacer
mm
(1/2")
62mm
(2-7/16")
6.35
mm
(1/4")
Center
line of
door
C L
2
Go to page
(overleaf)
