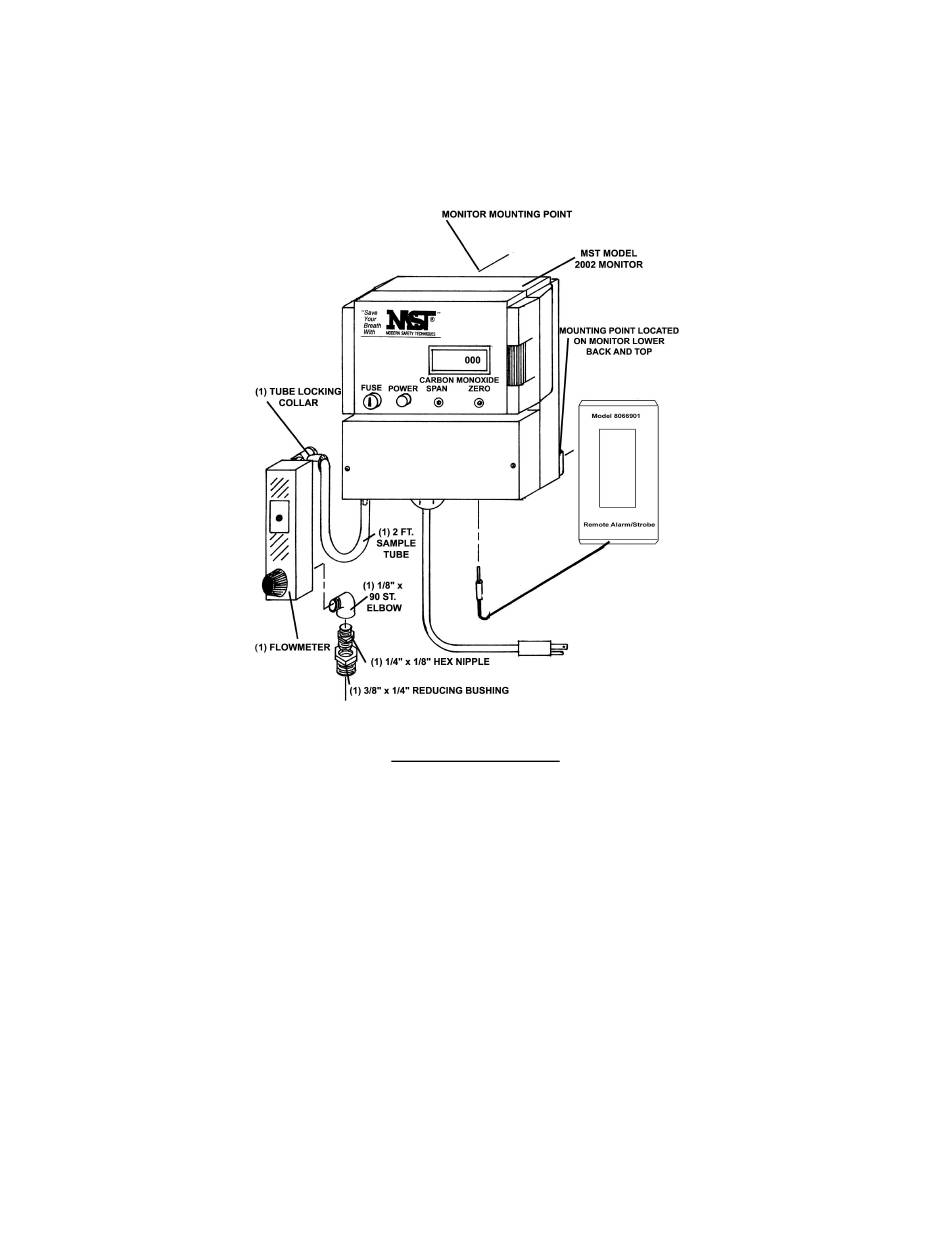

The MST, Inc. Model 2002 Carbon Monoxide (CO) Monitor is a monitoring system for gas analysis.
The monitor is housed in a NEMA 12 enclosure with a clear front panel lid. The monitor has a
digital readout, dual stage alarm relays, remote alarm jack for audible alarm and can be powered by
12 VDC, 120/240 VAC, as specified.
DIMENSIONS
WEIGHT
ENCLOSURE
DISPLAY
ACCURACY
MEASURING RANGE
POW ER SUPPLY
ALARM RELAYS
LOAD
SENSOR TYPE
RATING
MST RETROFIT PACKAGE
P.N. 8007701
SPECIFICATIONS
8" x 6.2" x 3.7" (200mm x 155mm x 92.5mm)
APP RO X. 2.2 lbs. (704 grams)
NEM A 12 rated with latching cover
11 mm LCD single line display
+/- 5% of reading
0 -19 9 PPM in 1 PPM increm ents
12 VDC, 120/240 VAC-50/60 Hz
Two, non-voltage, normally open and normally closed
contact. (W hen used on M ST B reathing Air Systems, one
relay is utilized to power remote alarm jack.
5 amp, 250 VAC
5 amp, 30 VDC
ELECTRO CHEM ICAL: Carbon Monoxide
No n-Intrinsic sa fe design, NE MA 4 rating only
Advertisement
Summary of Contents for MST 2002 Carbon Monoxide Monitor
- Page 1 MST RETROFIT PACKAGE P.N. 8007701 The MST, Inc. Model 2002 Carbon Monoxide (CO) Monitor is a monitoring system for gas analysis. The monitor is housed in a NEMA 12 enclosure with a clear front panel lid. The monitor has a digital readout, dual stage alarm relays, remote alarm jack for audible alarm and can be powered by 12 VDC, 120/240 VAC, as specified.
- Page 2 MST 2002 MONITOR OPTIONAL ACCESSORIES 80045 Replacement Electrochemical CO Sensor 8008503 Remote External Strobe with 20 Ft. Cord 80326 Y-Jack for connecting Remote External Alarm and Strobe to monitor 8039601 Air Horn Alarm System 8003101 Sma ll Calibration K it...
- Page 3 MST RETROFIT PACKAGE P.N. 8007701 MOUNTING INSTRUCTIONS...
- Page 4 MST RETROFIT PACKAGE, P.N. 8007701 OPERATION INSTRUCTIONS AFTER INSTALLED...
