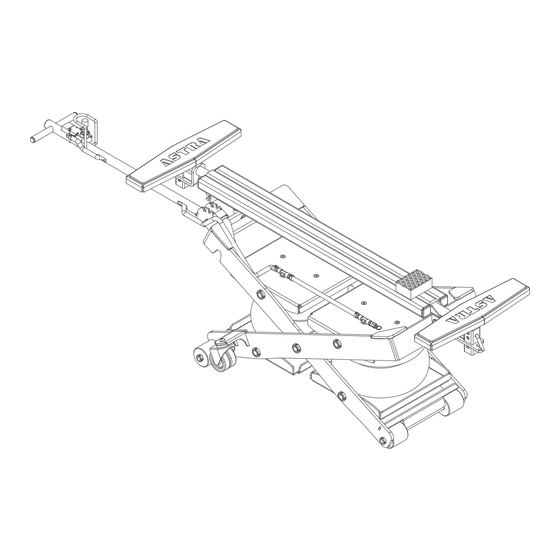

AE1001 miniLIFT CLASSIC
miniLIFT
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the miniLIFT CLASSIC and is the answer not in the manual?

Questions and answers

Summary of Contents for Astra miniLIFT CLASSIC

  • Page 1 Spray booths · Welding · Benches · Lifts CODE DESCRIPTION SERIAL NUMBER AE1001 miniLIFT CLASSIC miniLIFT User Manual...
  • Page 3: Table Of Contents

    INDEX 1 Information about this manual Page 04 1.1 Symbols of the manual Page 04 2 Intended use Page 04 3 Installation Page 05 3.1 Unpacking Page 05 3.2 Assembly Page 06 3.3 Start-up Page 07 3.4 First use Page 07 4 How it works Page 08 4.1 Installation of the pads...
  • Page 4: Information About This Manual

    1 Information about this manual For your safety, read this manual carefully before installing or using this product. 1.1 Symbols of the manual DANGER Possible risk of death, serious injury and / or material damage. CAUTION Possible risk of injury and / or material damage. NOTE Recommendations for the correct use.
  • Page 5: Installation

    3 Installation 3.1 Unpacking DANGER Incorrect transportation. Use always proper devices for this function (forklift, crane, etc) and wear protective shoes. All the parts that form the elevator are sent in a simple pallet (“Figure 01”). 1. Elevator 5. Basic pads 2.
  • Page 6: Assembly

    3.2 Assembly · Set the wheels as shown in the “Figure 02”. Figure 02 · Set the handle as shown in the “Figure 03”. Figure 03 USER MANUAL · AE1001 MINILIFT...
  • Page 7: Start-Up

    · Set the pneumatic quick connector (not supplied) as shown in the “Figure 04”. Figure 04 3.3 Start up · Connect the compressed air funnel and check the air pressure (from 6 to 9 BAR). · Check that there are no leaks in the pneumatic ducts, the actuating valve and/or the pneumatic actuators. 3.4 First use CHECKING THE LIFT / DESCENT MANEUVER ·...
  • Page 8: Installation Of The Pads

    4 How it works 4.1 Installation of the pads · Place the lifting arms into the gaps of the elevator as shown in “Figure 7”. Figure 07 · Fix the basic pads in the adaptors as showb in the “Figure 8”. Figure 08 In those vehicles where there are no “heel pads”, but you can find some other lifting points under the chassis, you can use the following optional pads (not included in the basic package).
  • Page 9: Positioning Of The Elevator

    4.2 Positioning of the elevator DANGER Use always the lift in areas with no obstructions neither inclinations. · Drive the lift by the handle and position it under the vehicle according to the desired part to be lifted (“Figure 10”). See sections 4.4, 4.5 and 4.6. ·...
  • Page 10 4.3 Positioning of the basic pads Place the basic pad behind the area of the lifting point (in the middle) as shown in the “Figure 13”. 215mm 123mm Figure 13 DANGER Place the basic supports at the same length from the platform and without exceeding the maximum as shown in the “Figure 14”.
  • Page 11 4.4 Lifting/down maneuver (front side of the vehicle) DANGER Never place the lift in the gravity point of the car. Place the supplied safety stands once the vehicle has been raised. Place the lift next to the gravity point of the car, in the front/rear part of the vehicle, as it’s showed on the “Figure 15”...
  • Page 12 4.6 Special side lifting maneuver DANGER The side lifting maneuver is only possible when the pad is placed correctly as in “Figure 18”. Please, be extremely caution careful during this operation. Place the rubber pad in the hole designed for it as shown in “Figure 18”. Figure 18 Place the lift under the vehicle.
  • Page 13: Installation Of The Safety Stands

    DANGER STOP the lifting maneuver before the car be supported directly by the lift as in “Figure 20”. Figure 20 4.7 Installation of the safety stands DANGER Safety stands do not allow the operator to work under the vehicle. Place the safety stands as shown in the “Figure 21”, and descend the lift until the stands make contact with the ground.
  • Page 14 4.8 Installation and use of the 4x4 adaptors (optionals) Place the 4x4 pads as shown in “Figure 22”. It can be combined with the basic pads and the other optional pads: Figure 22 DANGER Place the basic supports at the same length from the platform and without exceeding the maximum length as shown in the “Figure 23”.
  • Page 15: Maintenance

    5 Maintenance 5.1 Maintenance plan TYPE PERIOD TASKS Before each use. · Check the operation of the controls. · Visual inspection of damages and leaks. At 6 months. · Cleaning (see point 5.2). At 12 months. · Regular inspection (see point 5.7). At 6 years.
  • Page 16: Regular Inspection

    5.7 Regular inspection The lift must be inspected by a specialist at least once every 12 months. NOTE We recommend you to keep an exhaustive control of elevator inspections in the “inspection log” that you will find on page 24 of this manual. Here are the inspection points: Mechanic system ·...
  • Page 17: Exploded View

    6.3 Exploded view INDEX Top (Page 18) Pneumatic system (Page 19) Scissors (Page 20) Figure 25 USER MANUAL · AE1001 MINILIFT...
  • Page 18 Figure 26 USER MANUAL · AE1001 MINILIFT...
  • Page 19 Figure 27 USER MANUAL · AE1001 MINILIFT...
  • Page 20 Figure 28 USER MANUAL · AE1001 MINILIFT...
  • Page 21 Number Description Quantity Code MPTO00132 SCREW DIN912 8.8 M8X55 MPTO00074 WASHER DIN125 M8 MLA141P03 SPRING MPTO00044 NUT DIN985 M8 MLA140P01 HOSE MLA140 HANDLE MPTO00128 SCREW DIN84 M4x50 MPTO00082 1-EAR CLAMP MPTO00078 ELBOW CONECTOR FOR TUBE MPTO00077 PLUG DIN906 1/8M ZN PCSN00007 PNEUMATIC MANUAL VALVE MPTO00102...
  • Page 22 Number Description Quantity Code MLA100P06 AXIS MLA120 INT. SCISSORS MPTO00053 GUK 15X1 MPTO00120 SEEGER DIN471 D10 MLA170 HANDLE SUPPORT MPTO00010 SCREW DIN7380 M8 MLA100P04 FASTENER MLA110 EXT. SCISSORS MLA100P08 SEPARATING MLA100P03 BOLT MPTO00006 SCREW DIN7380 M10 MPME00015 ROTATING WHEEL MPTO00028 WASHER DIN125 M10 MPTO00041 NUT DIN985 M10...
  • Page 23 Spray booths · Welding · Benches · Lifts DECLARATION OF CONFORMITY (as established by the Directive 2006/42/CE) The company: APUANA, S.L. (workshop equipment manufacturer) C/ Cabrera 6 08192 SANT QUIRZE DEL VALLÈS (Barcelona) ID N.: B-60415114 The legal representative declares, under his sole responsibility, that the mobile lift: MODEL: AE1001 SERIAL NUMBER:...
  • Page 24: Inspection Log

    7 Inspection log Date Maintenance plan Result Signature USER MANUAL · AE1001 MINILIFT...
  • Page 25 Date Maintenance plan Result Signature USER MANUAL · AE1001 MINILIFT...
  • Page 26 Date Maintenance plan Result Date USER MANUAL · AE1001 MINILIFT...
