Summary of Contents for RHINO MOTION CONTROLS RMCS-2302

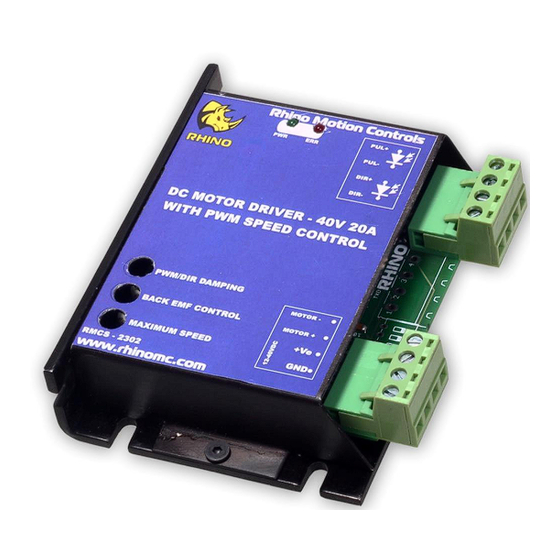

- Page 1 RHINO MOTION CONTROLS RMCS-2302 50V 20A DC motor driver w/t PWM speed control (Max. 50Vdc and 20A) Installation Manual and Datasheet http://www.rhinomc.com http://www.rhinomotioncontrols.com Page 1 High-Torque DC Motor Driver w/t PWM Interface [RMCS-230X]...
-
Page 2: Technical Specifications
Pots for tuning of Speed, Back Emf and Dampness. • LED indication for power and error states Description Thank you for purchasing RMCS-2302 50V 20A drive/controller. The Speed and Direction of the DC motor are controlled by PWM and DIRECTION digital interface. Technical Specifications Specification... - Page 3 RHINO MOTION CONTROLS RMCS-2302 50V 20A DC motor driver w/t PWM speed control (Max. 50Vdc and 20A) Power and Motor Terminal Assignments Terminal No. Terminal Name Description Power Ground or Power –Ve Terminal 1 Terminal 2 Power +Ve (12VDC to 50VDC Max wrt. GND)
- Page 4 Six-Month Warranty Rhino Motion Controls (rhinomc.com) warrants its products against defects in materials and workmanship for a period of 6 months from shipment delivery. During the warranty period, Rhino Motion Controls will either, at its option, repair or replace products which proved to be defective.
