Summary of Contents for hamilton safe 98RH Nighthead

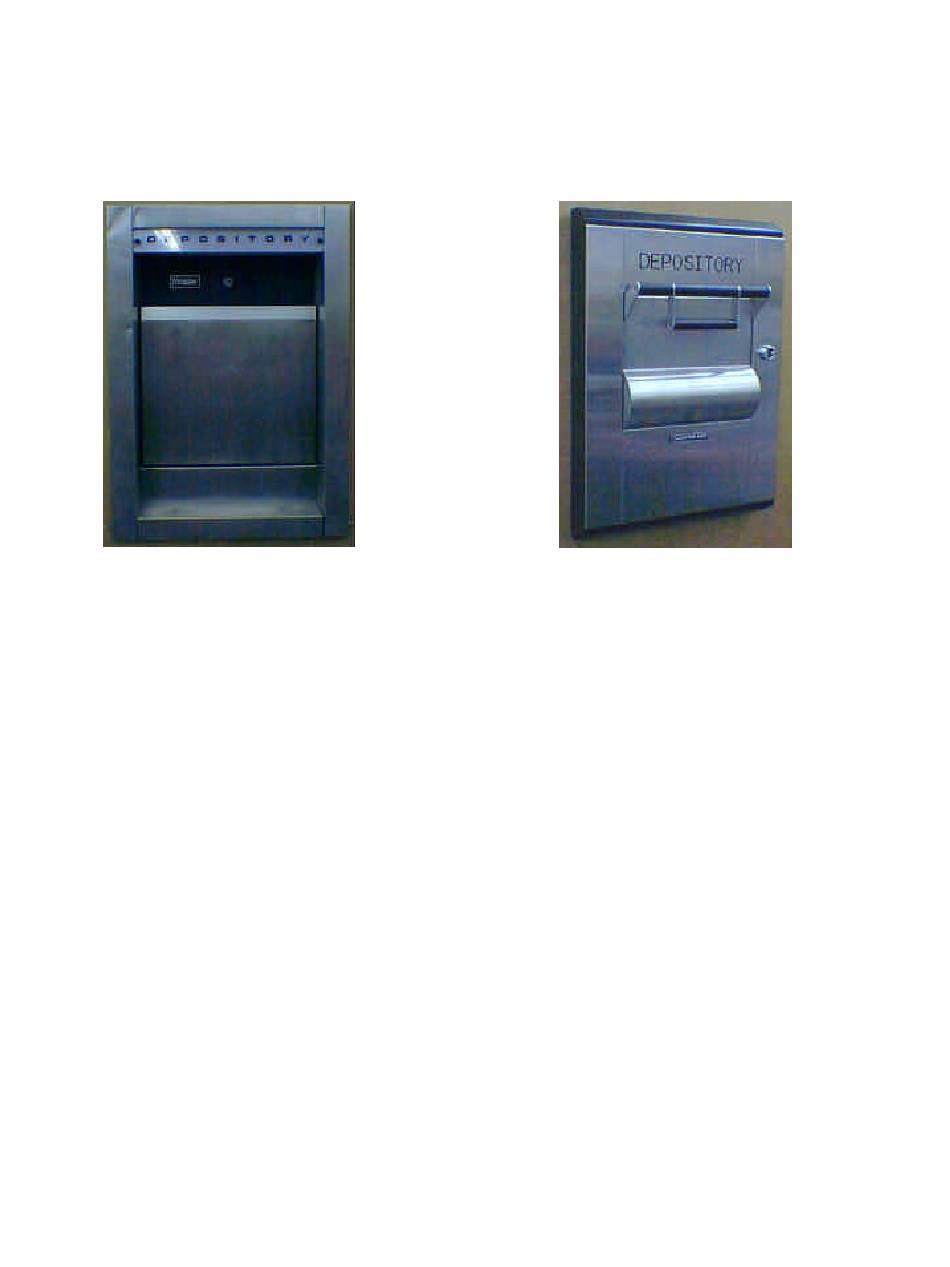

- Page 1 Hamilton Safe Company 98RH Nighthead Instruction sheet for replacing Mosler American with Hamilton 98RH. DOCUMENT NUMBER: 08-328 Mosler American Hamilton 98Rh Page 1 of 8...
- Page 2 Hamilton Safe Company Tools required: Welder, hex wrench set, saws-all (cutting torch optional), screwdrivers, 1/4" drill, hammer, punches. Step #1: With the hopper in the open position, peel the black tape at the top and both sides of the hopper to expose nine screws holding the stainless steel face to the head.
- Page 3 Hamilton Safe Company Step #3: With the hopper in the open position, exposed are eight press in caps covering socket head cap screws that hold the side bars to the housing. Drill a 1/4" hole at the top and bottom of each cap and remove the caps by driving a pin behind them or by using pliers to work them out.
- Page 4 Hamilton Safe Company Step #4: Remove the plastic gate ejector track from the left side of the housing. Step #5: Cut the cable from lock and remove spring. Remove lock, lock detent, and micro switch also. Page 4 of 8...
- Page 5 Hamilton Safe Company Step #6: Remove four screws holding the top casting in the housing and remove the casting. Pull the alarm wires through the divider plate and retain for future use. Step #7: Drill out the bottom three break-off screws from the bottom front panel. Cut the curved baffle plate from the top down into the front plate approximately one inch.
- Page 6 Hamilton Safe Company Step #8: Cut the top divider plate to the back wall and across the back wall and remove plate. Step #9: Cut the rear shock mount from the housing and grind smooth. Page 6 of 8...
- Page 7 Hamilton Safe Company Step #10: Remove the terminal strip and wire from the bottom of housing. Step #11: Place the new front plate into the housing flush with the front and weld in place. The bar welded to the new front plate should be to the top and inside when installed.
- Page 8 Hamilton Safe Company Step #13: Place the template into the housing and bolt the new mounting bars to the template. The wide bar mounts to the left and the narrow bar mounts to the right. With the template setting on the new front plate and flush with the face of the housing, weld the mounting bars to the housing sides.
