TM

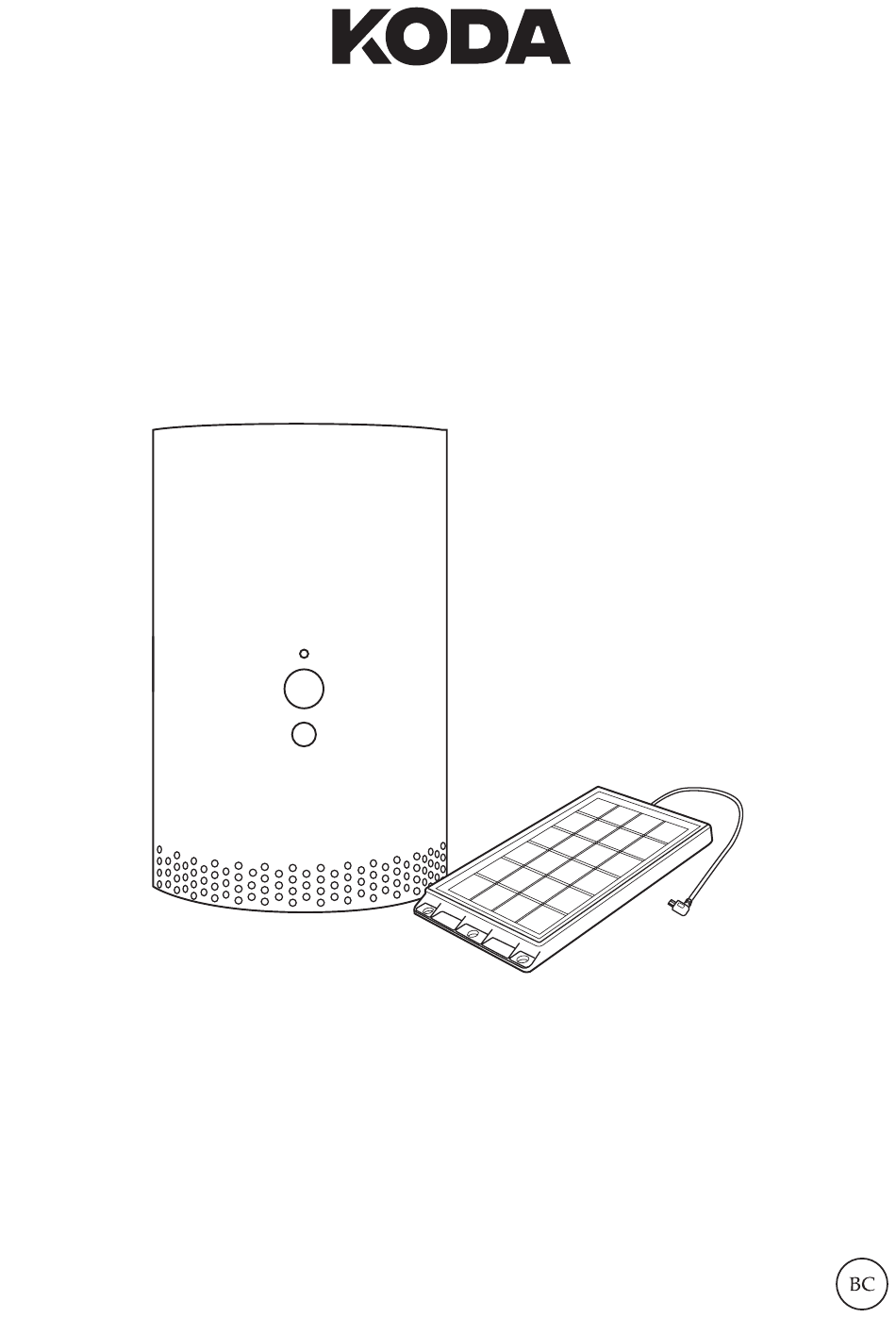

LED UMBRELLA LIGHT
WITH SOLAR CHARGER
ITM. / ART. 1281849
Model: LM56705
CARE & USE INSTRUCTIONS
IMPORTANT, RETAIN FOR
FUTURE REFERENCE: READ CAREFULLY
For questions or issues regarding the product, please contact Horizon Brands at 1-866-294-9244 (English) or send an
email to info@kodabuilt.com. Representatives are available Monday through Friday from 8 AM to 5 PM (Pacific Time).
2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, USA
www.KodaBuilt.com
Advertisement
Table of Contents
Summary of Contents for KODA LM56705
- Page 1 LED UMBRELLA LIGHT WITH SOLAR CHARGER ITM. / ART. 1281849 Model: LM56705 CARE & USE INSTRUCTIONS IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY For questions or issues regarding the product, please contact Horizon Brands at 1-866-294-9244 (English) or send an email to info@kodabuilt.com.
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS: Read this manual thoroughly before first use and keep it in a safe place for future reference. To reduce injury to persons: • Keep the LED Umbrella Light out of children’s reach; it is not a toy. • Protect the LED Umbrella Light from excessive heat. •... -
Page 3: Technical Specification
TECHNICAL SPECIFICATION: • Power Input: 5 V dc, 1A • Light Output: 250 lm Upward Beam; 250 lm Downward Beam • Battery Capacity: 4000 mAh • Color Temperature: 4000K (Bright White) • LED Life: 50,000 hrs * • Operating temperature: 0°C - 40°C / 32°F – 104°F Fits most market-style umbrellas from diameter 1.25 in - 2.25 in (31.7 - 57.1 mm) * 50,000-hour lifespan is for the LED only. -
Page 4: Before First Use
BEFORE FIRST USE: You must charge the battery prior to first use, either by Solar Charging Panel, or with Micro USB Charging Cable. Step 1: Open the Umbrella Light Step 2A: Connect to Solar Charging Step 2B: Connect to Micro USB Panel. -
Page 5: Operation
OPERATION: The light can be used as either as Umbrella Light, or as tabletop light. It is suitable for indoor or outdoor use in covered locations. However, the light should not be exposed to heavy rain or be surbmerged in water. Step 4: Open the Umbrella Light Step 5: Secure the Hanging Wire clasps to the Solar Charging Panel. - Page 6 Step 8: Turn ON the light Step 9: Adjust brightness “CLICK” Brighter Dimmer Step 10: Choose light mode Press the Light Mode Switch to choose the light mode: - Dual Beam: Both Top and Bottom Lights ON - Upward Beam: Top Light ON - Downward Beam: Bottom Light ON For use as tabletop light, you can place the light on table, and repeat Steps 8-10.
-
Page 7: Troubleshooting
TROUBLESHOOTING: ISSUE CAUSE REMEDY The light is not working The light is not switched ON Turn on the light The battery has run out Recharge the battery and then turn on the light again LED light or internal battery Dispose the product at your is at end-of-life local recycling center The light is under sleep... - Page 8 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. LED Umbrella Light LM56705 Responsible Party: Horizon Brands 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, USA Tel: 1-866-294-9244...
- Page 9 WARRANTY: HORIZON BRANDS LIMITED WARRANTY This Horizon Brands product carries a 1 year warranty against defects in workmanship and materials. This product is not guaranteed against wear or breakage due to misuse and/ or abuse. NOTE: Warranty only applies for North American customers of purchases made in North America.
- Page 10 DISCLAIMER OF WARRANTIES, INCLUDING WARRANTY OF MERCHANTABILITY AND WARRANTY OF FITNESS FOR PARTICULAR PURPOSE: EXCEPT AS SPECIFICALLY SET FORTH HEREIN, NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, IS MADE AS TO THE LED UMBRELLA LIGHT.HORIZON BRANDS AND/OR ITS AFFILIATES EXPRESSLY DISCLAIMS, WITHOUT LIMITATION, ANY STATUTORY WARRANTIES AND ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
- Page 12 Have a comment or question? Email us at info@kodabuilt.com or visit us online at www.KodaBuilt.com 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, USA | Tel: 1-866-294-9244 © 2018 Horizon Brands. All rights reserved. ML- 56705_V1...
