P a r t s I n c l u d e d :
1 - Module Selector
4 - Mounting Screws
Note: Do NOT use solid core spark plug wires with any MSD component.
The MSD Module Selectors provide the ability to switch between two or three different rpm or degree
modules. The different modules are activated when 12 volts are applied to the corresponding activa-
tion wire. The Selectors work with either a Soft Touch Rev Control or any MSD Timing Control that
uses plug-in modules.
•The 2-Step Module Selector switches between two modules.
•The 3-Step Module Selector switches between three modules.
Module 2
Module 1
Module 3
Note: If 12 volts are applied to the Red and Blue wires at the same time, Module 3
will be active.
MICRO SWITCH
PN 8820
SWITCH OR
TO LINE LOCK
OR TRANS-BRAKE
SOLENOID
M S D
I G N I T I O N

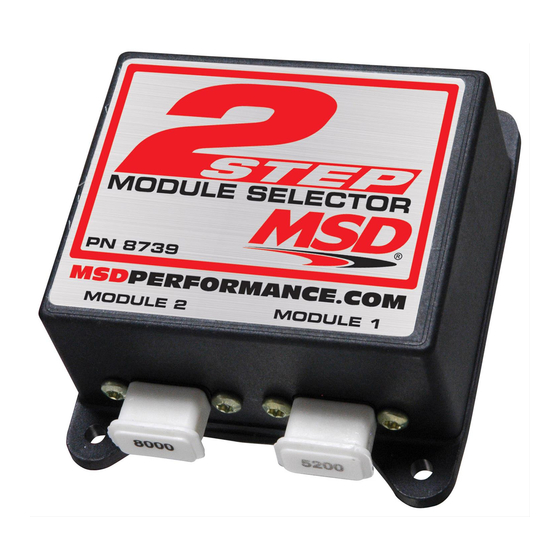

MSD Module Selectors
Two Step, PN 8739
Three Step, PN 8737

ACTIVATION WIRES

This is the default module. It is active when no voltage is present
on the other wires.
Active when 12 volts are applied to the Red Wire.
Active when 12 volts are applied to the Blue Wire. (3-Step Only)
TO MODULE SOCKET
TO 12V
RED
TO GROUND

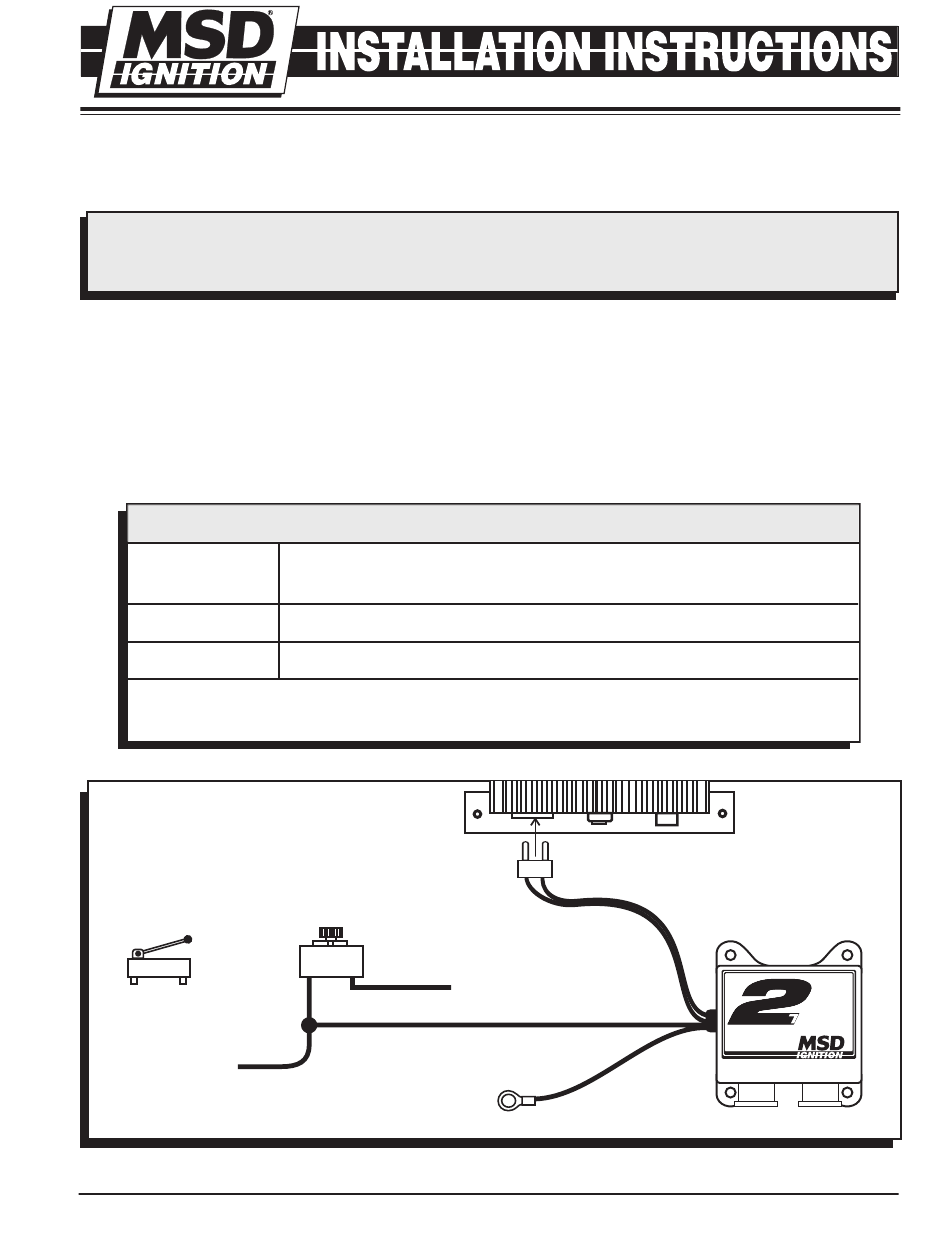

        Figure 1 Basic Two Step Module Selector Installation.
