Congratulations on your purchase of 3G high-speed wireless router. Before you begin
installing your router, please check the package contents.

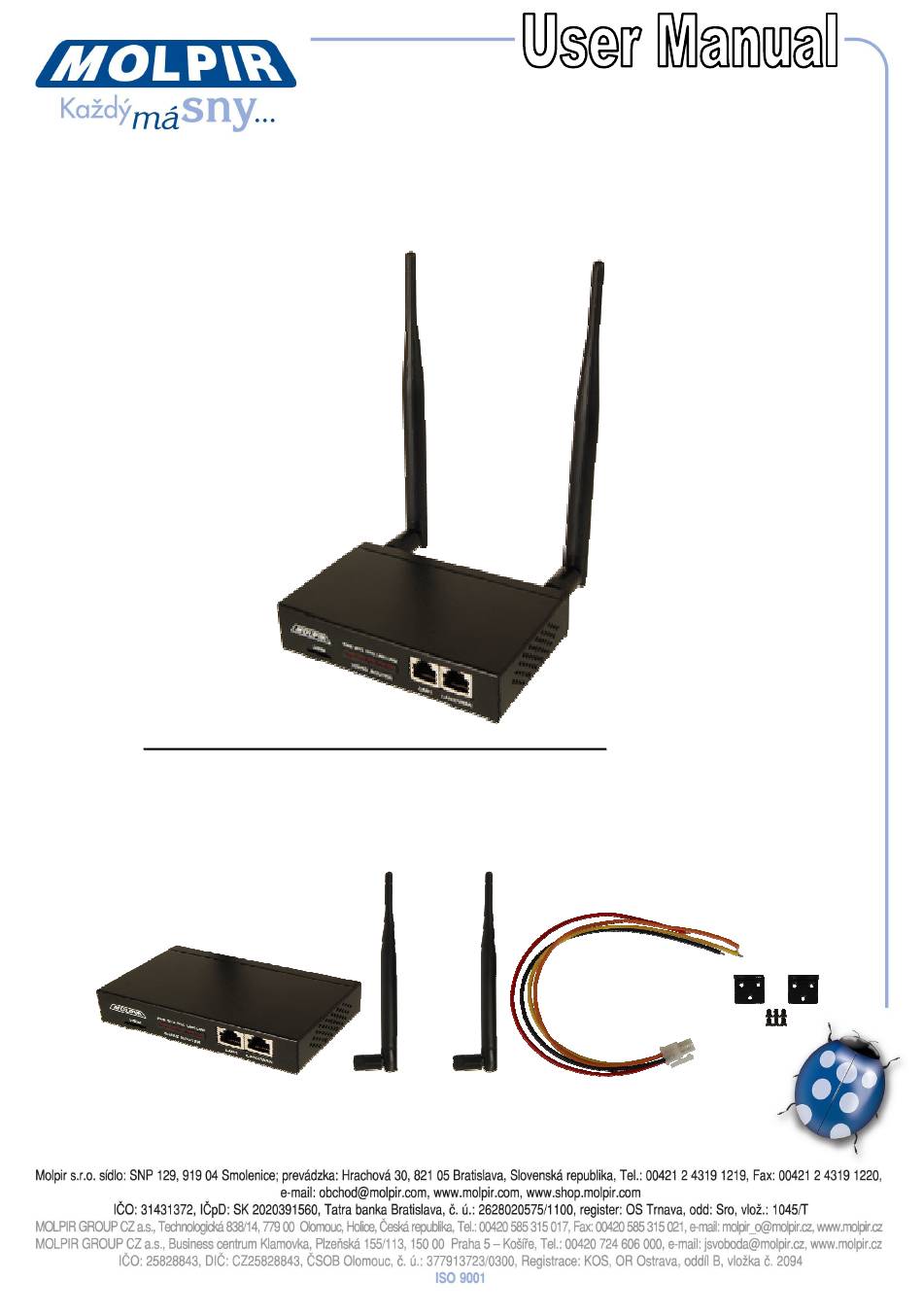

Your product package should contain the following items:
