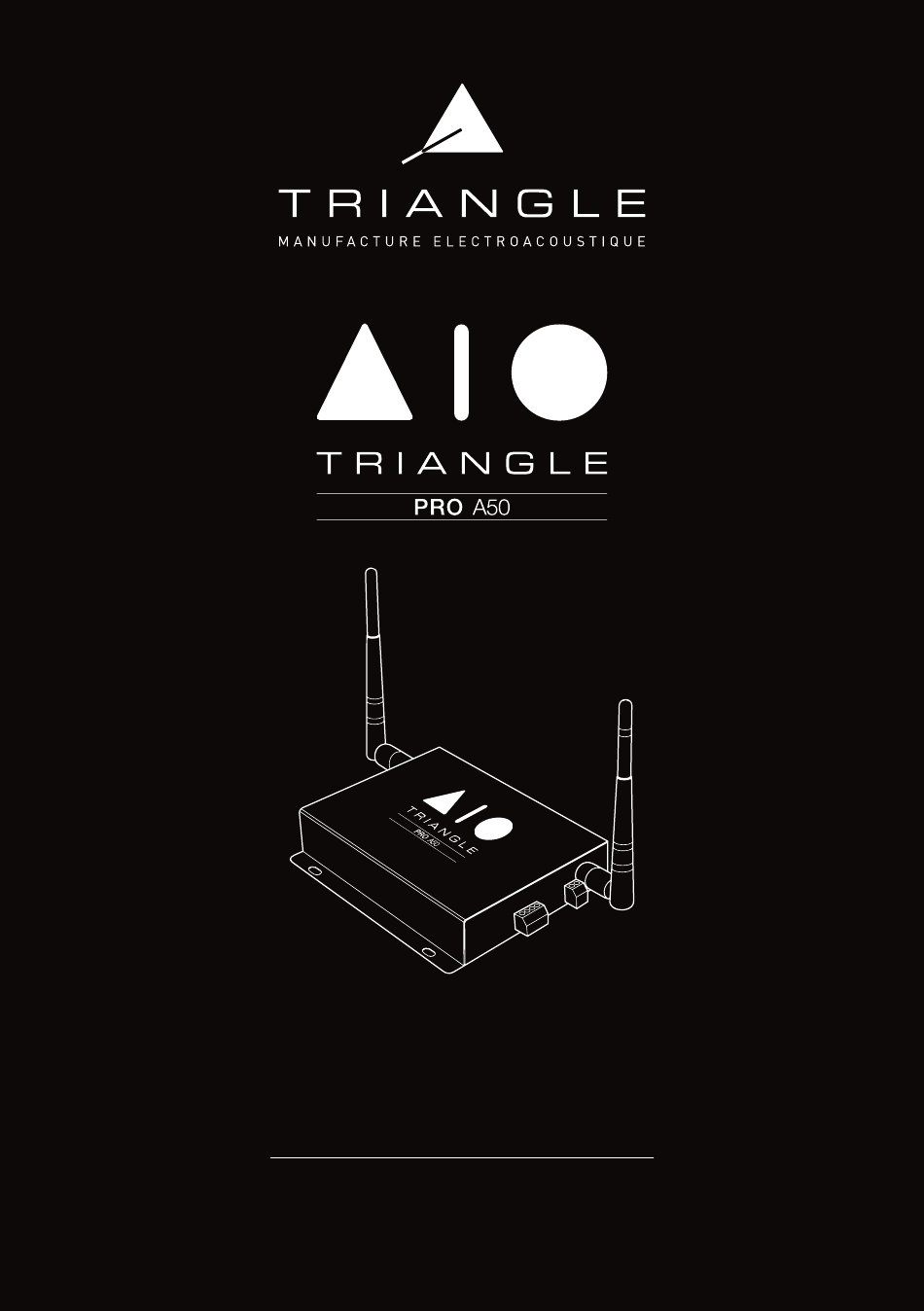

- Page 1 Mode d’emploi & Garantie Owner’s manual & Warranty TRIANGLE DISTRIBUTION FRANCE 44 rue Barreyre - CS40099 - 33300 Bordeaux FRANCE...
- Page 2 USER MANUAL ENGLISH...
-
Page 3: Installation Precautions
INSTALLATION PRECAUTIONS Before the installation Before connecting your AIO Pro A50, check the stability of the surface you want to install it on and reduce the distance between the speaker and your router as much as possible. Moving the device Always remove the power cord and disconnect the cables between all audio components when moving the device. -
Page 4: Device Description
DEVICE DESCRIPTION 1. Wifi antenna 10. Volume 2. Bluetooth antenna 11. Speaker connector 3. LAN 12. LED indicator: White-solid : Power on / Standby 4. WiFi pairing White-slow blink : USB/TF 5. USB White-quick blink : Reset 6. Optical input Green-solid : Line In Green-slow blink : Bluetooth 7. -
Page 5: How It Works
HOW IT WORKS Streaming service iOS device Android device... -
Page 6: Speaker Wiring Diagrams
INSTALLATION GUIDE Î Unpack: Verify all the accessories are included in the package. Î Place: Place this amplifier at a safe and proper location in your home. Î Connect. 1. Speaker Wiring Diagrams 4 or 8 Ohms Speaker Wire Diagram 4 or 8 Ohms Parallel Speaker Wire Diagram... -
Page 7: Connect The Speaker
2. Connect the speaker Speaker Wire Connection Î Take the speaker connector block that came with the AIO Pro A50. Î Loosen the screws before connecting the speaker wires. Î Please insert the speaker wire ends properly and tighten down each screw. - Page 8 Î Option 1: If the distance is sufficient, use the supplied power supply. Î Option 2: If the distance between the AC outlet and the AIO Pro A50 is too great, turn off the power connector and extend the cable. Locate the power connector, loosen the screws, insert the power wires, tighten each screw.
-
Page 9: How To Use
HOW TO USE Î Turn on your product using the remote control. Î Wait for your AIO Pro A50 to configure itself. Î 3 musical notes will sound when your device is ready for use. Download the app Go to your store (App Store or Google Play) and download the app TRIANGLE AIO. -
Page 10: App Overview
APP OVERVIEW Sources Playback Screen AIO devices The navigation is in 3 panels. Just swipe the screen from left to right to make them appear. -
Page 11: Playback Screen
1. Playback screen Go back to the previous screen Device on which the music is played Audio source Album cover Playlist by title Track progress bar Repeat all Repeat one Volume Shuffle play button Previous Next track track Caution: If you change the Play / Pause volume using the buttons on your mobile device, there may... - Page 12 2. List of connected AIO Add an AIO device to the network (p.31) Album cover of the track being played Settings Each speaker can play a different song. Speaker volume The default setting is in stereo (LR). It is possible to assign a speaker only to the right channel or to the left one by pressing...
- Page 13 3. Settings Renaming the speaker Favorites Setting the Auto Power-Down (the sound stops but the device remains connected) Details of the AIO Quality of the WiFi signal Setting the alarm In order to ensure that the alarm works, leave your device turned on.
- Page 14 4. Sources Search : to quickly access the music saved on your mobile device. Favorites : To quickly My playlists : access your favorite Create a playlist track on your mobile from the songs device. saved on your mobile device. TuneIn gives you access to all the digital radios.
- Page 15 Spotify: Choosing your device Listen out loud with Spotify connect 1. Connect your TRIANGLE AIO device to your WI-Fi network 2. Open up the Spotify app on your phone, tablet or laptop using the same Wi-Fi network 3. Play a song and select Devices Available 4.
- Page 16 Î Once the Bluetooth source is selected, the LED turns blinking green. The pairing will automatically start. Î Make sure you disconnect your device in case another user wants to take over. Î Go to the Bluetooth settings on your mobile device. Î Select the source: TRIANGLE AIO Pro A50.
-
Page 17: Troubleshooting
TROUBLESHOOTING If the device does not work correctly, check the points listed below. If the problem persists, the device may not operate normally. Unplug the power cord immediately and get in touch with your reseller. OBSERVATION SOLUTION Check that your mobile device is connected to the network on which you are trying to connect your AIO. -
Page 18: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS How many speakers can I AIO can group up to 5 speakers in WiFi, 10 via Ethernet, if group on the app? the quality of the connection is good enough. What happens when I get The music continues to play on your speaker without a call on my mobile phone interruption. - Page 19 AIO PRO A50 Spécifications techniques AIO Pro A50 Technical specifications Réseau sans fil IEEE 8.2.11b/g/n 2.4 GHz Ethernet Wireless network Branchements Single 10/100M RJ45 Wired connectivities Entrées audio Optique/Optical - Jack 3.5mm - USB2.0 - Bluetooth 4.0 Audio inputs (Dual mode, compatible with 2.1 + EDR, Max Speed 3M bit/s) RS232 via l’entrée jack - Bouton pour la gestion de volume -...
- Page 20 AIO PRO A50...
- Page 21 - DESIGN BY TRIANGLE IN FRANCE - ASSEMBLED IN CHINA...
