Summary of Contents for COMPANION COMPBI012

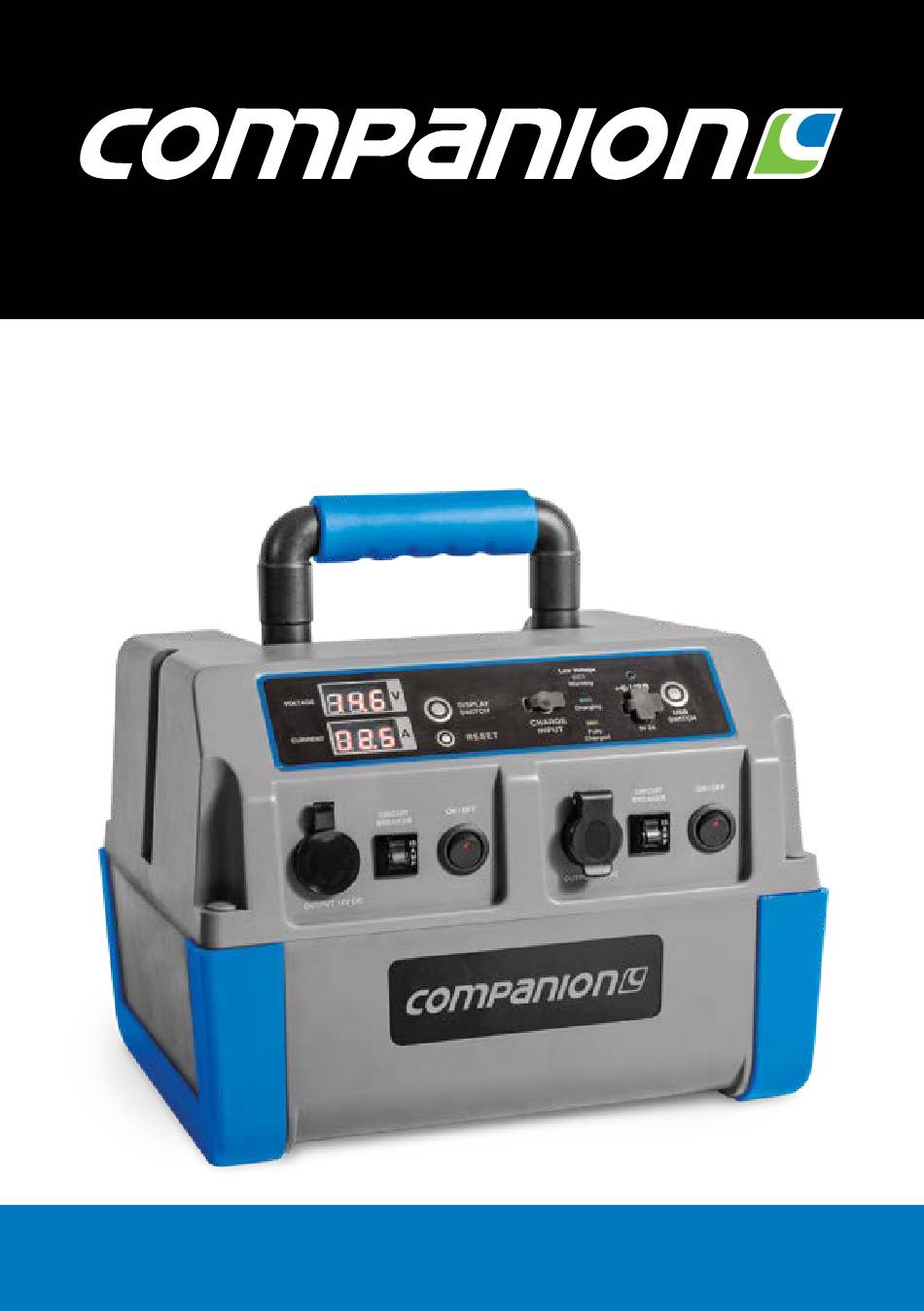

- Page 1 OWNERS MANUAL POWER PACK 44AH Part No. COMPBI012 Australia’s original Outdoor brand...
- Page 2 SAFETY • Please read, understand and follow the instruction manual before first use. • Never expose the Power Pack to rain, water, snow or excessive moisture. • When charging the Power Pack, DO NOT expose to open flame or cigarettes. FEATURES CHARGING (GREEN) LED INDICATOR CHARGE INPUT VIA AC ADAPTOR (INCLUDED)
- Page 3 OWNERS MANUAL UNDERSTANDING YOUR POWER PACK Power Pack includes: 1 x 44Ah Power Pack 1 x 6A 240V AC charging adaptor 1 x 12V DC charging lead (10A fused) 1.3m INSTRUCTIONS FOR USE Power appliances: 12V DC 12V DC 1. Simply connect the appliance’s power plug into the cigarette Merit style corresponding socket: A, B, C or D.
-
Page 4: Overload Protection
3. Press the USB switch ON when charging 5V DC appliances via the USB port. The USB (green) indicator light will illuminate. 4. Insert Anderson style plug from the appliance directly into the Anderson style plug socket on the side of the Power Pack. The digital display will show the VOLTAGE (V) of the Power Pack. -
Page 5: Digital Display
OWNERS MANUAL Digital display When the Power Pack is in use with an appliance connected, press the DISPLAY SWITCH and the digital display will show the VOLTAGE (V) of the Power Pack and the CURRENT (A) amperage used by the appliance. When you press the DISPLAY SWITCH with no appliances connected, the digital display will show the VOLTAGE (V) of the Power Pack and zero (00.0) CURRENT (A) - Page 6 Low Voltage Warning The Power Pack is equipped with a low voltage (low battery capacity) warning system that activates automatically when the Power Pack voltage decreases to a low voltage level. WHEN THE POWER PACK IS IN USE and the voltage decreases to 10.5V, the unit will automatically switch OFF and the Low Voltage Warning indicator (red) will commence flashing with an audible single beep every 5...
- Page 7 OWNERS MANUAL Charging the Power Pack 1. Using the 240V AC charging adaptor (included); Insert the 5.5mm Jack Plug into the ‘Charge Input’ socket (7) on the front of the Power Pack and other lead to mains 240V AC. The ‘Charging’ LED (10) indicator will illuminate (green) once the power is turned on indicating that charging has commenced.
- Page 8 3. Using a Solar Panel Kit (not included): IMPORTANT: A Solar Charger/Regulator MUST be used in between the Solar Panel and Power Pack to control the voltage and current input. Failure to do so, will result in catastrophic failure of the Power Pack, causing potential explosion and or severe personal injury.
-
Page 9: Maintenance
When the Low Voltages Warning occurs, fully charge the Power Pack immediately before use. TECHNICAL DETAILS SPECIFICATIONS Part No. COMPBI012 Output Voltage 12V DC and 5V DC (USB) 2 x 22Ah AGM (Absorbed Glass Mat) Battery Type batteries 12V/15A cigarette lighter socket... - Page 10 NOTES ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________...
- Page 11 OWNERS MANUAL NOTES ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________...
- Page 12 Distributed by Companion Brands Bundoora VIC 3083 www.companionbrands.com.au...
Need help?
Do you have a question about the COMPBI012 and is the answer not in the manual?
Questions and answers
what happen when reset is pressed when charging,has led light on and low voltage warning red led light on thanks Peter
When the reset button is pressed on the COMPANION COMPBI012, it restores power to the digital display screen and the on/off switches. This should be done before recharging the unit when the low voltage warning red LED light is on. All appliances and charging adaptors must be disconnected before pressing the reset button.
This answer is automatically generated
