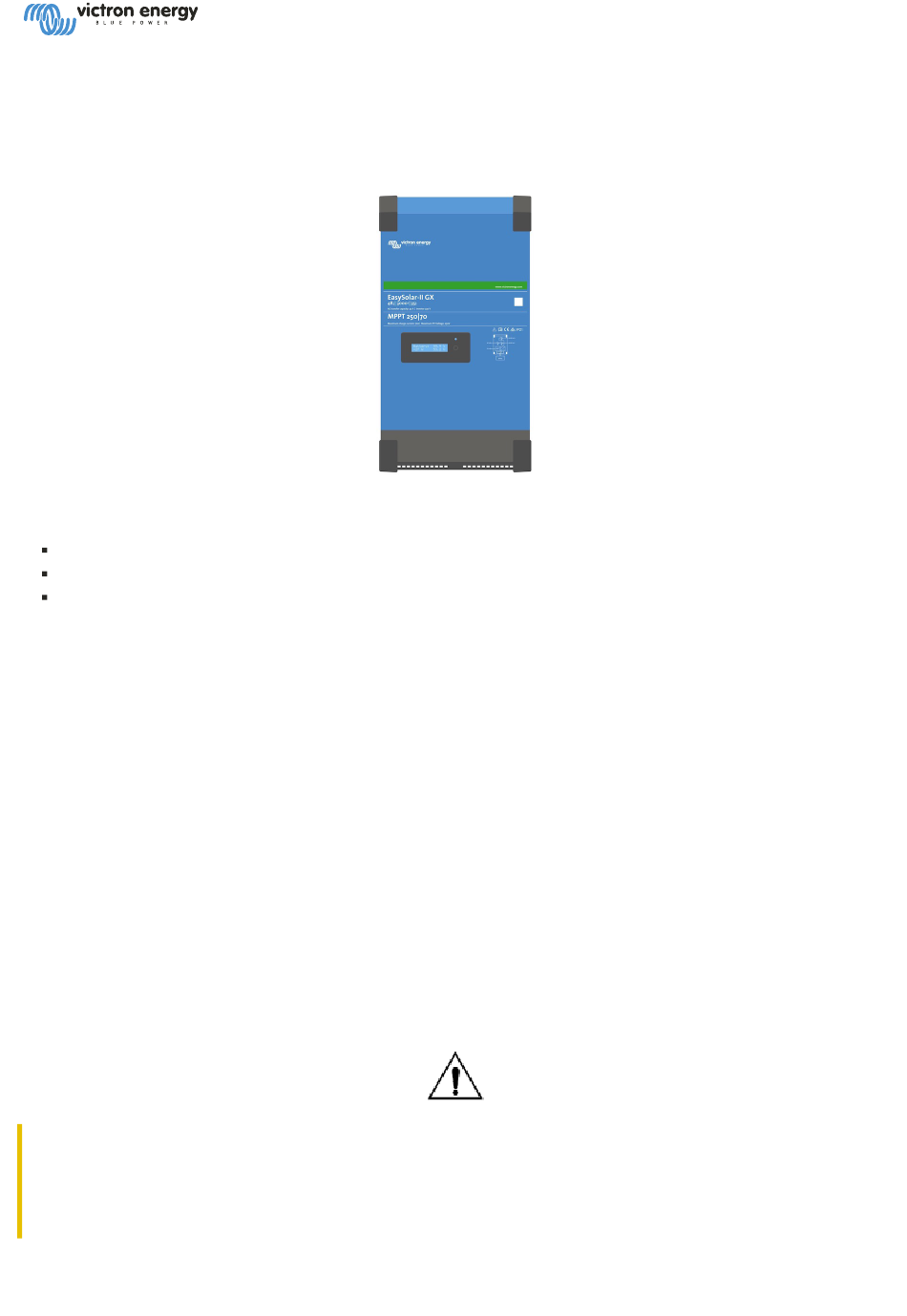

EasySolar-II GX manual
1. Introduction

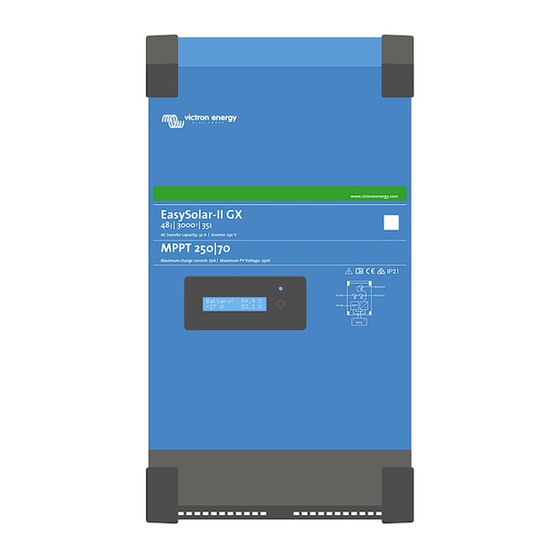

The Victron EasySolar-II GX integrates the following elements:
A powerful MultiPlus-II inverter/charger
A SmartSolar MPPT solar charge controller
A GX device with a 2x16 character display
These elements come prewired, and preconfigured together inside a single unit. This greatly simplifies most installations,
saving time and money.
This document explains how all components fit together, how to install the product, and what documentation to use for
configuration and other details of its individual parts.
2. Safety instructions
2.1. In general
WARNING
Please read the documentation supplied with this product first, so that you are familiar with the safety signs en
directions before using the product. This product is designed and tested in accordance with international standards.
The equipment should be used for the designated application only.
manual-easysolar-ii-gx
1 / 7
Advertisement
Table of Contents
Summary of Contents for Victron EasySolar-II GX
- Page 1 EasySolar-II GX manual 1. Introduction The Victron EasySolar-II GX integrates the following elements: A powerful MultiPlus-II inverter/charger A SmartSolar MPPT solar charge controller A GX device with a 2x16 character display These elements come prewired, and preconfigured together inside a single unit. This greatly simplifies most installations, saving time and money.
- Page 2 manual-easysolar-ii-gx 2.2. WARNING: DANGER OF ELECTRICAL SHOCK WARNING The product is used in combination with a permanent energy source (battery). Even if the equipment is switched off, a dangerous electrical voltage can occur at the input and/or output terminals. Always switch the AC power off and disconnect the battery before performing maintenance.
- Page 3 manual-easysolar-ii-gx This inverter is provided with an internal isolation transformer providing reinforced insulation. Protect the solar modules from incident light during installation, e.g. cover them. Never touch uninsulated cable ends. Use only insulated tools. 2.4. Transport and storage On storage or transport of the product, ensure that the mains supply and battery leads are disconnected. No liability can be accepted for damage in transit if the equipment is not transported in its original packaging.
- Page 4 manual-easysolar-ii-gx Battery grounding: this device can be installed in a positive or negative grounded system. TBD something about non isolated and to ground referenced connections? Note: apply a single ground connection (preferably close to the battery) to prevent malfunctioning of the system. Chassis grounding: A separate earth path for the chassis ground is permitted because it is isolated from the positive and negative terminal.
- Page 5 manual-easysolar-ii-gx The MultiPlus-II is a safety class I product (supplied with a ground terminal for safety purposes). Its AC input and/or output terminals and/or grounding point on the outside of the product must be provided with an uninterruptible grounding point for safety purposes. The MultiPlus-II is provided with a ground relay (relay H, see appendix B) that automatically connects the Neutral output to the chassis if no external AC supply is available.
- Page 6 (see MultiPlus-II, GX and Solar Charger Manual The integrated GX device includes a single VE.Can interface. This can be used to connect to either Victron VE.Can devices (eg VE.Can MPPTs) OR the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Battery.
- Page 7 manual-easysolar-ii-gx The Solar Charger is configured using our VictronConnect app. The easiest method of connecting to the Solar Charger part is via Bluetooth. This works for Android, iOS and macOS. It does not work for Windows. When required to use Windows, unplug the VE.Direct cable from the Solar Charger, and use a VE.Direct USB interface cable to your Windows laptop.
