KIOSK INSTALLATION INSTRUCTIONS
CarisTouch 17"

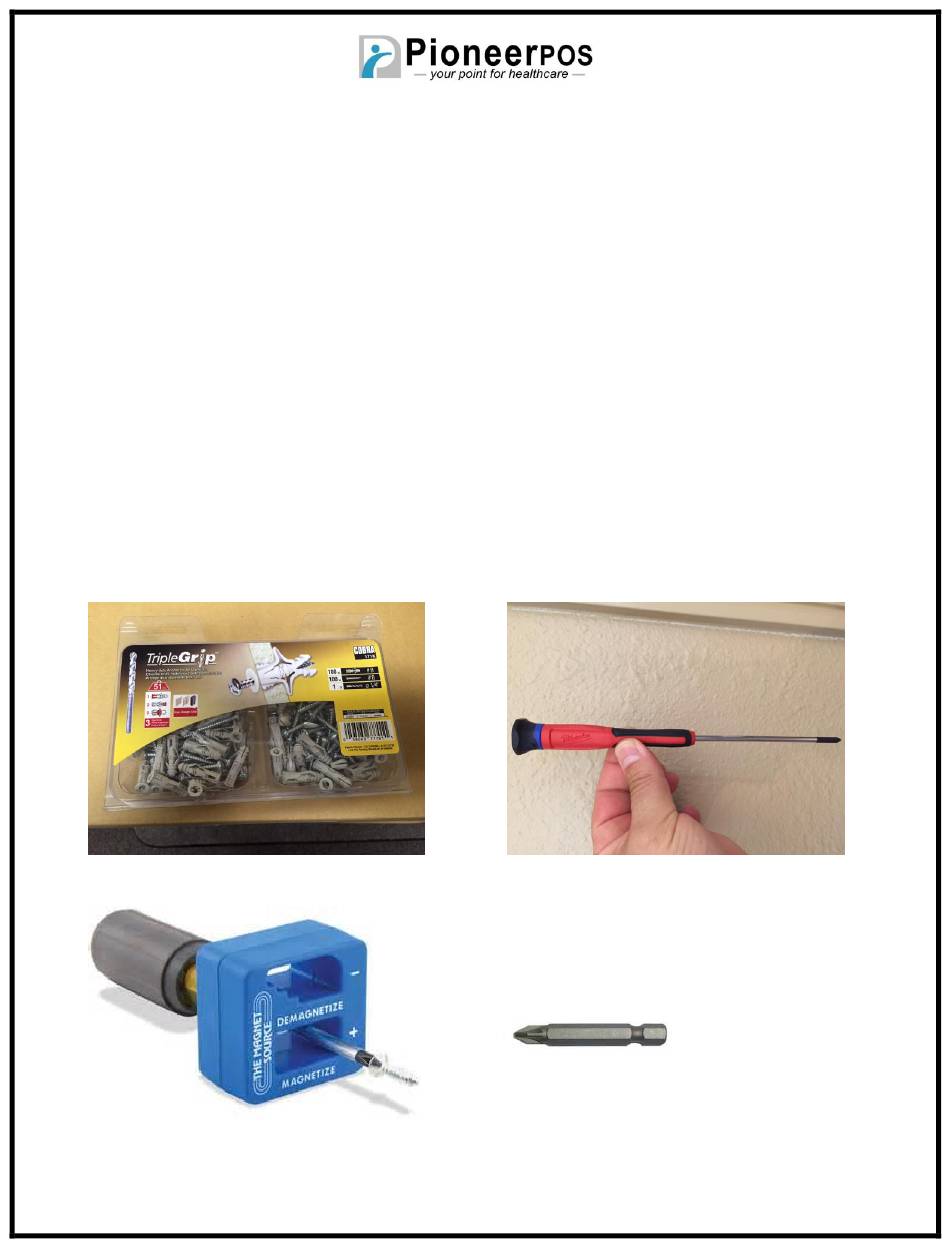

MATERIALS NEEDED:
o Level
o Phillips Head Screw Driver – Long Thin (See Picture Below)
o Battery Power Drill
o ¼" Drill Bit (See Picture Below)
o ¼ Phillips Head Bit (See Picture Below)
o Tool Magnetizer For Screw Driver (See Picture Below)
o Screws (QTY 4, #8 Screw, 1⅟4 ) (See Picture Below)
o Anchors (QTY 4, #8) (See Picture Below)
o Pencil
Advertisement
Table of Contents
Summary of Contents for PIONEERPOS CarisTouch 17”
- Page 1 KIOSK INSTALLATION INSTRUCTIONS CarisTouch 17” MATERIALS NEEDED: o Level o Phillips Head Screw Driver – Long Thin (See Picture Below) o Battery Power Drill o ¼” Drill Bit (See Picture Below) o ¼ Phillips Head Bit (See Picture Below) o Tool Magnetizer For Screw Driver (See Picture Below) o Screws (QTY 4, #8 Screw, 1⅟4 ) (See Picture Below) o Anchors (QTY 4, #8) (See Picture Below) o Pencil...
- Page 2 KIOSK INSTALLATION INSTRUCTIONS CarisTouch 17” STEP 1: INSTALL WALL MOUNT PLATE: 1.) Remove Wall Mount Plate From Back Of Kiosk Wall Mount Plate Is Fastened To Kiosk With Four Screws (2 on each side). These Screws Must Be Unscrewed Before Removing Plate From Kiosk. 2.) Position Wall Mount Plate Directly Over Power Outlet on Wall and Check For Level.
- Page 3 KIOSK INSTALLATION INSTRUCTIONS CarisTouch 17” STEP 2: INSTALL POWER CORD AND POWER BRACKET TO KIOSK 1.) Remove Flange From Back Of Kiosk and Tuck In Orange PS2 Extension. 2.) Prepare Power Brick For Installation. a. Position Power Brick With Cord In Upper Right Hand Location...
- Page 4 KIOSK INSTALLATION INSTRUCTIONS CarisTouch 17” b. Place Bracket Over Power Brick (Note Circle In Upper Right Corner) c. Insert 1’ Power Cord Into Power Brick On Left Hand Side. Cord Should Hand Down.
- Page 5 KIOSK INSTALLATION INSTRUCTIONS CarisTouch 17” 3.) INSTALL POWER BRICK MODULE TO BACK OF KIOSK. a. Align Screw Holes On Top of Bracket With Holes On Kiosk Ensure That Holes Are At Bottom of Slot As Pictured. b. Screw Bracket To Kiosk Using 2 Small Black Screws Provided. 4.) SECURE WIRING TO BACK OF UNIT a.
- Page 6 KIOSK INSTALLATION INSTRUCTIONS CarisTouch 17” 5.) FIX KIOSK TO WALL BRACKET Align 4 Slots on Back of Kiosk with Hooks on Wall Mount Plate. 6.) FASTEN KIOSK TO WALL MOUNT PLATE WITH 4 SCREWS (Small Black Screws Provided)
