NF-WC-WIFI-104

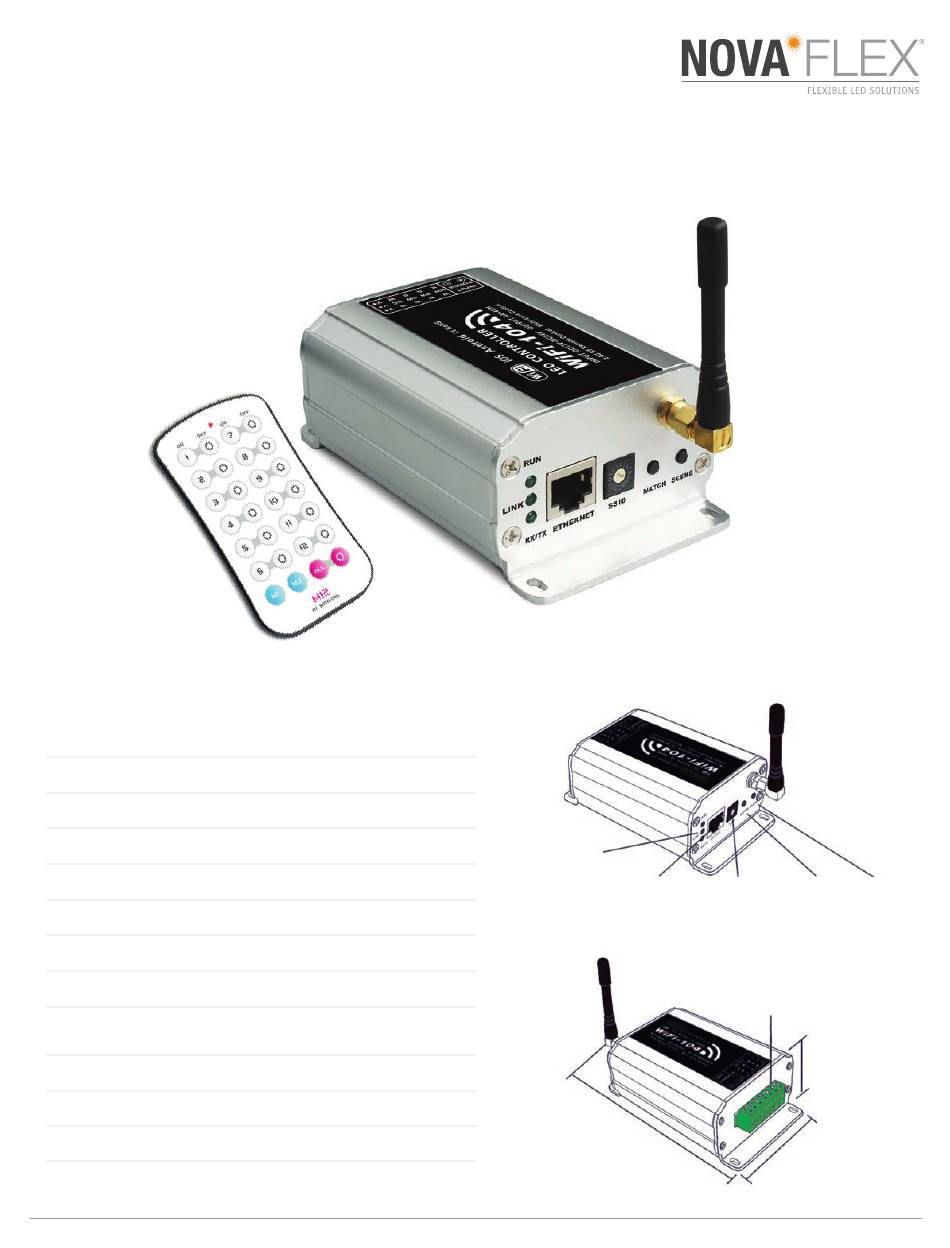

WIFI-104 LED CONTROLLER
The WiFi-104 Controller gives you the ability to control you lights via
an App on your iOS or Android smartphone or tablet. Control up to 12
unique zones when paired with the Nova Flex receiver (NF-WR-R45A).
Multiple controllers can be used with the same router.
SPECIFICATIONS
Communication
Input Voltage
Output Current
Max Output Power
WiFi Control Distance
Output Control
Operating Temp
Length
Width
Height
Page 1
2.4GHz WiFi; 802.11b/g/n
12 - 24V DC
4A x 4CH Max 16A
192W/384W (12V/24V)
328 feet
Dimming, CT, RGB, RGBW
-22
o
F to +131
o
F
5.04" (128mm)
2.87" (73mm)
1.77" (45mm)
Indicator
Manufacturer
SSID Code
interfafce
switch
5.04"
novaflexled.com / 800.595.6302
ID learning
Scene
button
button
Power Input/
LED Output
1.77"
2.87"

Advertisement

loading
Need help?

Need help?

Do you have a question about the WIFI-104 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NOVA FLEX WIFI-104

  • Page 1 NF-WC-WIFI-104 WIFI-104 LED CONTROLLER The WiFi-104 Controller gives you the ability to control you lights via an App on your iOS or Android smartphone or tablet. Control up to 12 unique zones when paired with the Nova Flex receiver (NF-WR-R45A).
  • Page 2 Use code switch to set the controller's SSID number, WIFI-104-SSID-X, X stands for a certain No. ranging from 0-F, totally 16 options. which means our product could set 16 isolated LAN in the same area. WiFi-104 will initialize with run LED indicator flashing about 25s quickly, each time the SSID NO. is changed. Mobile devices need to search and connect WiFi again after Initialization finished.
  • Page 3 2 Software Operating Instructions: 2.1 WiFi Connection and Settings WiFi-104 support 2 connection modes: Direct connection as a router or connect by an additional router. A. WiFi-104 Controller Direct Connection as a Router: Enter mobile device's WiFi setting, click the WiFi function, mobile device search the WiFi and list the working WiFi controller automatically(As Figure-1), click the SSID number to connect (default is no password).
  • Page 4 Click “Network” key to enter Network interface(as Figure-3-1), start "connect to exiting LAN", software will search the workable WiFi net SSID list, choose the specified router to connect (Attn: do not choose WiFi- 104 controller), can add the WiFi-104 controller to the wireless router (as figure-3-2 the wireless router TP-LINK1) Repeat the abc steps If you need connecting multiple wifi-104 controllers to this wireless router d.
  • Page 5 Click “Zone” on the Device List interface, enter Zone set interface. turn on each zone, choose the LED type accordingly (zones are nameable). [Attn]: Wifi-104 itself is defaulted as zone NO.1, connecting lights is optional, slave control will be zone NO.1 if not connected. Zone...
  • Page 6 NF-WC-WIFI-104 WIFI-104 LED CONTROLLER B. Learning ID: Short press "ID learning button" on the receiver, the running light keeps on, select the zone No. on the App and touch the color screen for 2s-3s. The buzzer long beep (meanwhile the running light on the receiver back to flash state), ID matched.
  • Page 7 [Attn]: Direct connection of using wifi-104 as a router, exit the App after the SSID name and the password changed, reconnect the WiFi-104 on the mobile devices. For extra router connection, just press “ ” on Device List interface to research WiFi-104.
  • Page 8 , press any key on M12, the buzzer beep again, ID matched. Cancelling ID Long press ”MATCH” on Wifi-104 above 6s, the buzzer long beep, ID cancelled (cancelled all matched remotes). Turn off zones Turn on zones (long press to decrease brightness...
  • Page 9: Wiring Diagram

    Connection Between Zone Receiver to LEDs ( Same as WiFi-104 ) [Attn]: Wifi-104 itself is defaulted as zone NO.1, connecting lights is optional, slave control will be zone NO.1, if not connected. All zones could be used for same LED types or not. e.g. single color dimming in all zones, all set to DIM type.
