PORTAPROMPT
365 Personal Prompting Assistant

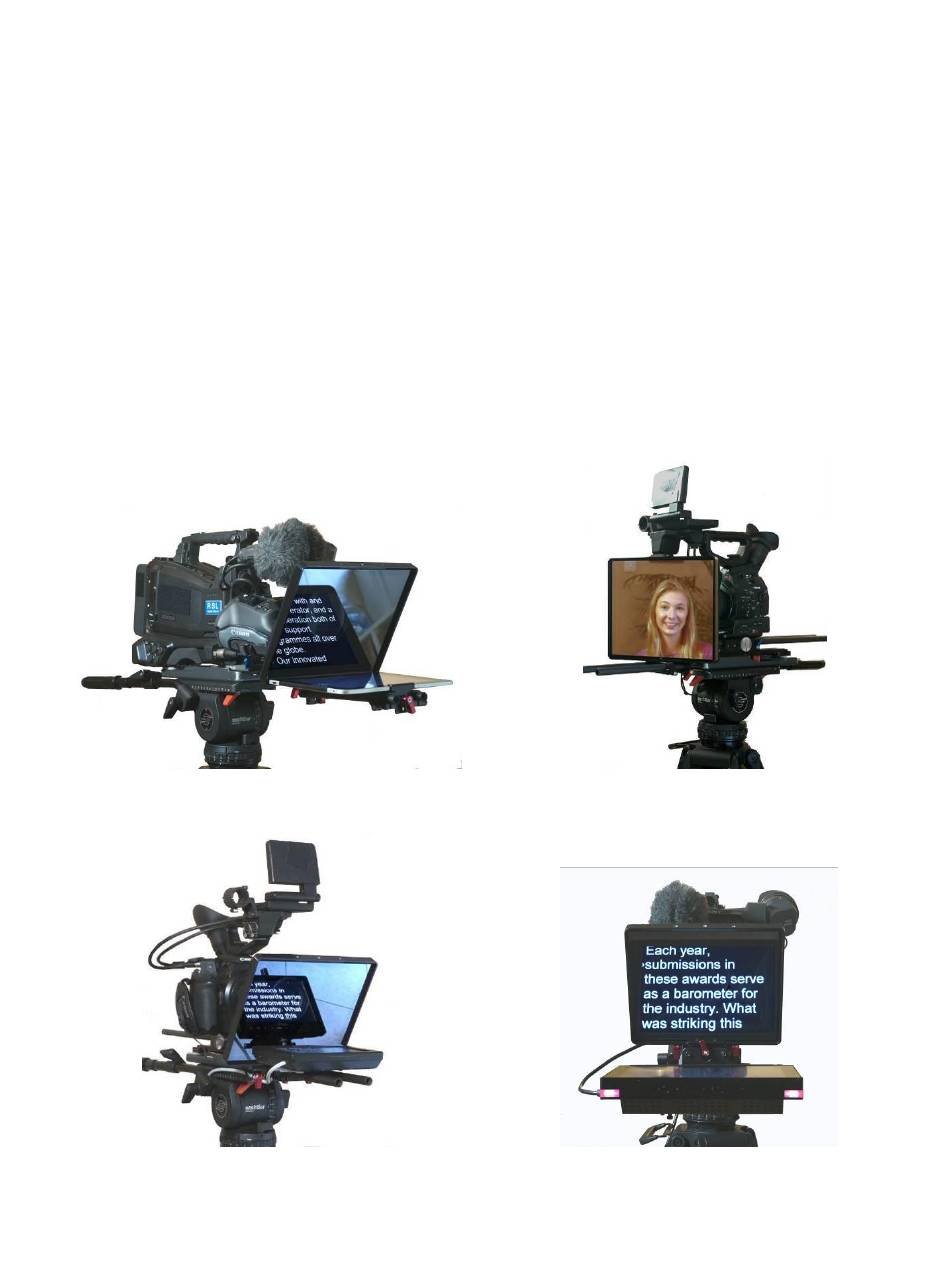

A new, very light weight system that rigs on to 15mm bars. The system has four basic
configurations:-
1. Used for Tablet Operations

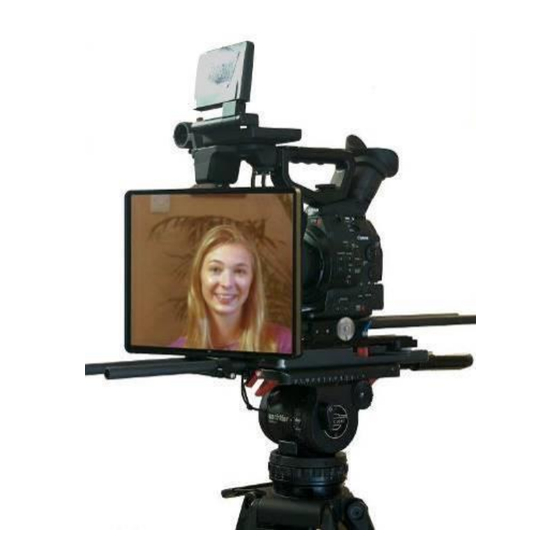

2. Used as a Passive Interrotron.
3. Used with a 7" or 9" Micro Prompt screen for Jimmy Jibs and Steadicam operations
(needs Windigi software).
4. Used with 10.4" and 12" On-camera head up display (needs Windigi software and
additional attachment clamp).
The "365 Series - Personal Prompting Assistant" a prompting device for every day of the year!
Tablet Operations
7" or 9" Micro Prompt
Quick Rigging Guide
1
Passive Interrotron.
10.4" /12" On-camera head up display
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for PORTAPROMPT 365 Series
- Page 1 (needs Windigi software). 4. Used with 10.4” and 12” On-camera head up display (needs Windigi software and additional attachment clamp). The “365 Series - Personal Prompting Assistant” a prompting device for every day of the year! Tablet Operations Passive Interrotron.
-
Page 2: Product Details
PORTAPROMPT Product Details 365-001 includes – Frame, Cloth Hood (Knicker),Clamps (Large Riser Clamp and Small Rigging Clamp) and attachment screws, 2 glass Reflectors (one to go and one spare), Long Carbon fibre and short Aluminium rigging rods and Lightweight Carrying Case ... - Page 3 PORTAPROMPT Rigging for a Tablet These are all the parts to rig a tablet Frame, Cloth Hood and Reflector Large Riser Clamp and Small Rigging Clamp Long Carbon Fibre rigging rods This shows the how the Large Riser Clamp fits onto the Frame when using a tablet. The two long...
- Page 4 PORTAPROMPT Detail showing how the Frame is mounted (using the Large Riser Clamp) on the cameras 15 mm bars / rig. This shows how the Carbon Fibre bars attach to the Large Riser Clamp and how the tablet is attached to the rig using the Small Rigging Clamp...
- Page 5 PORTAPROMPT Rigging for a Passive Interrotron These are the parts to rig a Passive Interrotron. Frame, Cloth Hood and Reflector Large Riser Clamp and Small Rigging Clamp and long fixing screw Long Carbon Fibre rigging rods You fit the Small Rigging Clamp into one the vertical fixing holes (there are 3) of the Frame using the long screw.
- Page 6 PORTAPROMPT The Large Riser Clamp and Carbon Fibre Bars fits onto the camera bars in the same way as the Tablet rig. The Frame is attached using the Small Rigging Clamp and slides onto the Carbon Fibre Bars. The Frame can then be rotated to catch the required angle needed for use as a Passive...
- Page 7 PORTAPROMPT...
- Page 8 PORTAPROMPT Rigging for a 7” or 9” Micro Prompt These are all the parts to rig a Micro Prompt Frame, Cloth Hood and Reflector Large Riser Clamp and Small Rigging Clamp Long Carbon Fibre rigging rods ...
- Page 9 PORTAPROMPT The Small Rigging Clamp that is used to secure the Tablet rig needs to be dismantled, turned upside down, the L shaped plate needs to be reversed and is attached to the Micro Prompt by using the supplied screw as shown...
- Page 10 PORTAPROMPT The whole rig then slides on to the Carbon Fibre Bars to the edge of the Frame / Reflector To feed the Micro Prompt you will need a dedicated Prompting Software source like WinDigi and a hand or foot control system to scroll...
- Page 11 Large Riser Clamp Portaprompt 10.4” or 12” head up fitted with spigot adaptor clamp The head up attaches to the Frame by using an additional fixing plate with two spigots (available as an accessory) which attaches the display directly to the Frame - so there is no need for the...
- Page 12 PORTAPROMPT Rigging the Reflector (glass) into the Frame and Cleaning the Reflector This is the Frame and Cloth Hood with the spare Reflector in its blue bag The optically flat Reflector has Velcro on it which holds it in the hood.
-
Page 13: Photo Gallery
PORTAPROMPT Photo Gallery Picture showing iPad rigged Picture showing hood rigged in Passive Interrotron mode... - Page 14 PORTAPROMPT Picture showing 365 rigged on camera with a 7” prompter display, note the hood cloth light shield is held around the lens with the elastic cord. Picture showing 365 rigged with 12” on camera head up display. Note the 12” fixing...
- Page 15 The 365 will only rig on 15mm bars if you don’t have these the we suggest using the 365-015 15mm bars rigging plate – Portaprompt has a number of rigging and prompting videos on their website How to Videos? www.portaprompt.co.uk...
