PROFESSIONAL CHAIN REPAIRING MASTER SET
Instructions
BS3510
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Bikeservice BS3510

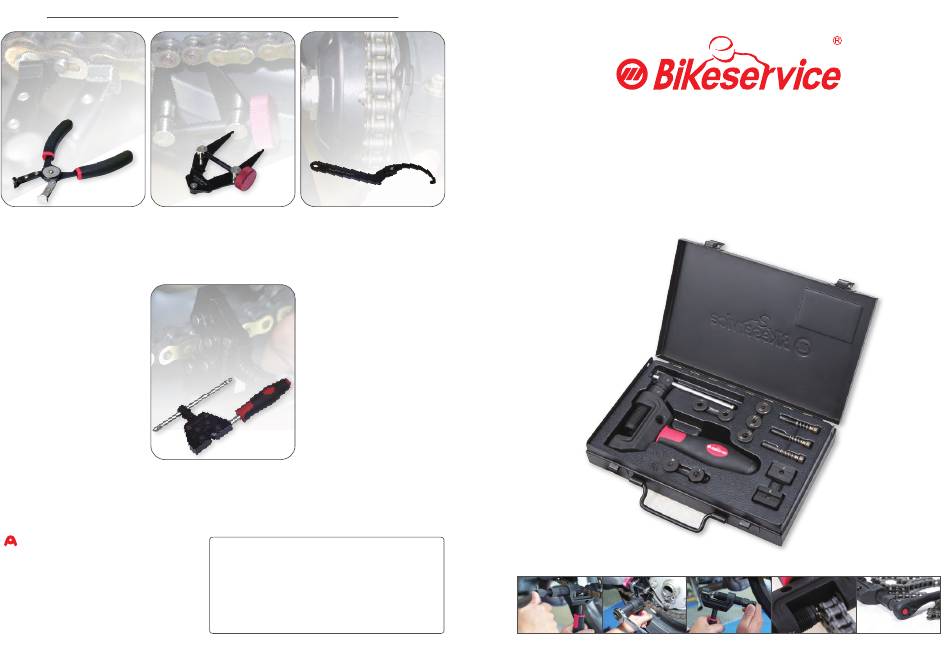

- Page 1 Chain Link Pliers Drive Chain Tension Puller Chain Adjustable C Hook Wrench BS3500 Chain Extractor APO TOOL INTERNATIONAL LTD. Represent. No.38 Ping An St, Changhua. Taiwan 50055 T: +886 4 7514888 / F: +886 4 7524888 Website : www.bikeservice.com.tw E-mail : service@bikeservice.com.tw...

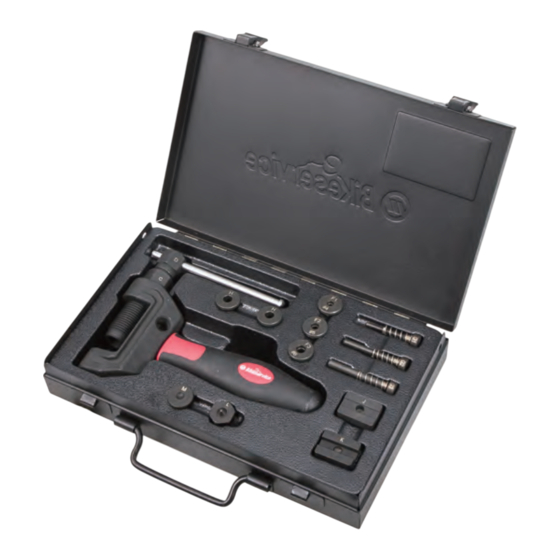

- Page 2 The BikeService BS3510 Chain Repairing Master Tool is designed to break chains up to chain size #632 and press the hollow link pins and plates of the Master Link on chains up to #632. Please read instructions thoroughly prior to use.
- Page 3 PRODUCT FEATURE(PATENT PENDTING) This special Forcing Screw adopts a multifunctional driving mode (T bar / 19mm & 21mm Hex Wrench The new type forged Body adopts three lock holes with or Socket / 3/8” Square Driver)，which makes the removal and installation process more convenient different position and angle which allows a nimble Lift upper +30°...
- Page 4 BREAKING CHAINS As chain sizes vary so do the pin sizes depending on the size of the chain links. The Tool breaking pins (Fig B) Details the position of the Chain to pressing the chain link pin out. in the kit cover sizes to suit the following chain links. (F1) Small Holding Tip and (G1) Smaill Push Pin w/Spring, suits chains size #415, #420 and #428.
- Page 5 ASSEMBLY CHAIN PRESSING SIDE PLATES Parts: (Fig E) Chain assembly and riveting or mushrooming the head of hollow link pins. Riveting process is Fig D Body (A) not required on solid link pin style master links with elongated U clip retainers. (H) Holding Tip x 2 pieces (J) Shallow Press Block Center Screw (C)
- Page 6 04. Using a 21mm spanner firstly tighten the Center Screw checking that the link is correctly aligned. 05. Tighten the Forcing Screw either via the T-bar or 21mm spanner ensuring the tool Rivet is All chains are different, and BikeService cannot provide the exact specification for your chain. centered on the Master Link Pin. (Fig J) 06.
