Summary of Contents for Clements Orbital 360

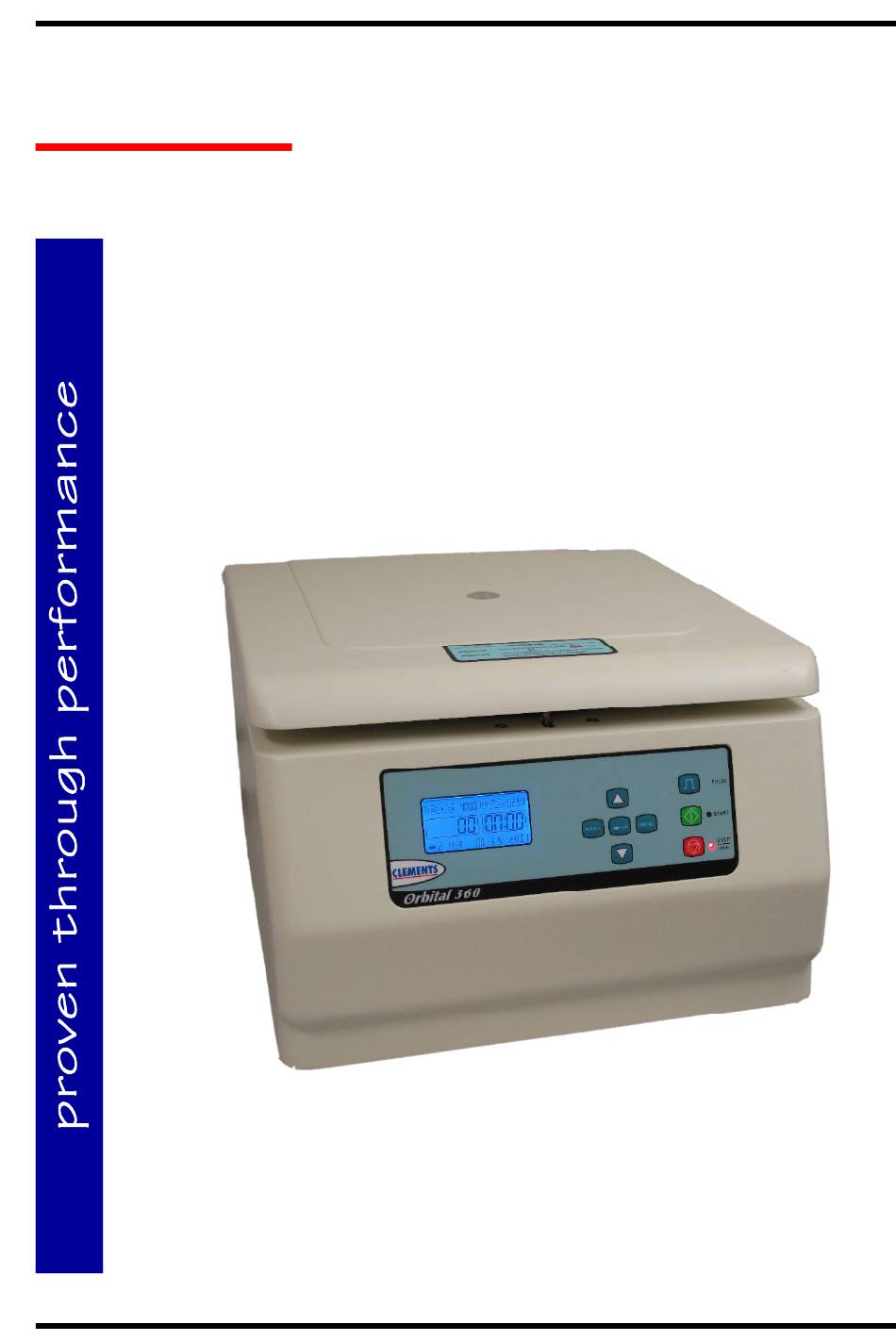

- Page 1 CLEMENTS Orbital 360 Benchtop Centrifuge CEN 91705 220-240V 50/60Hz User Manual Manual No. CEN 91705 017 Issue 1...
- Page 2 Centrifuge For your safety it is imperative that this unit only be operated by authorised personnel in accordance with the instructions as described in this manual. Operated in this way, the Orbital 360 Centrifuge will provide the standard of service specified. Due to continual improvements in product design, the...
-
Page 3: Table Of Contents
CLEMENTS Contents Description and Features ............ 4 Specifications ..............5 Warnings and Cautions ............6 Installation ................7 Controls ................8 Operation ................10 Parameter Setting Menu ............12 Operation Summary ............14 User Programs ..............16 Rotors ................17 Accessories and Spares ............19 Cleaning and Maintenance ..........20 Fuse Replacement and Error Codes ........21... -
Page 4: Description And Features

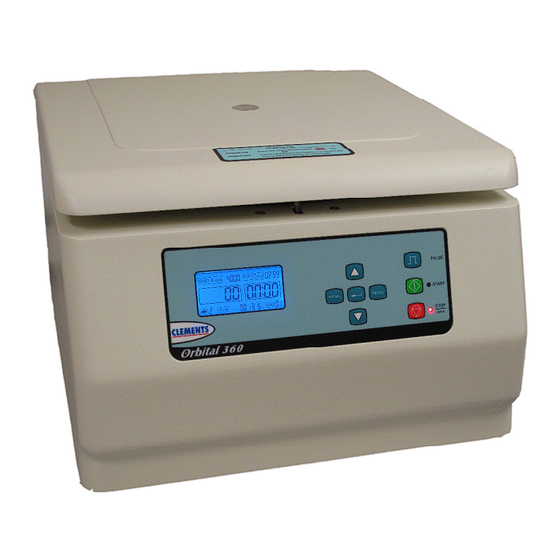

CLEMENTS Description The Orbital 360 Centrifuge is a versatile, compact and reliable benchtop centrifuge. It is designed for clinical and small laboratory applications where precise digital control of speed and time is required. Features Brushless DC motor technology for low maintenance •... -
Page 5: Specifications
CLEMENTS Specifications Speed Range 100 to 5000 rpm Maximum RCF 4100 x g Speed Accuracy ±50 rpm Time Range 1 to 99 minutes Angle Rotors 24 x 10 ml Swing-out Rotors 4 x 50 ml 12 x 15 ml 24 x 5 ml... -
Page 6: Warnings And Cautions
CLEMENTS Warnings and Cautions For safe operation ensure that users read, understand and observe the instructions and recommendations in this user manual. Power Ensure that the mains power supply matches that shown on the rating label of the centrifuge. Flammable Samples The centrifuge is not flameproof. -
Page 7: Installation
CLEMENTS Installation Unpacking Keep centrifuge horizontal while removing it from carton. Retain packaging for transporting centrifuge. With power off, release lid lock by inserting manual release tool in small hole on top right hand side of centrifuge. Keep tool parallel to front of panel and press release plate. -
Page 8: Controls
CLEMENTS Controls Front View Rear View Manual Lid release access hole Control panel IEC power inlet On/Off Switch Fuse holder Condition LCD Display Shows In Spin Cycle Actual and Set Values of Speed / RCF and Time Remaining Setting Mode... - Page 9 CLEMENTS Controls Item Function On/Off Switch Switches mains power to centrifuge. IEC Inlet Mains power inlet. Also contains fuse holder. Lid release access hole Access for manual lid release tool. Centrifuge must be disconnected from power. Button Stops spin cycle. When rotor has stopped acts as lid release button.
-
Page 10: Operation
CLEMENTS Operation Rotor Fitting 1. Open lid and switch off centrifuge. 2. Remove carriers from rotor. 3. While supporting rotor with one hand, unscrew (CCW) rotor- retaining cap screw. 4. Lift off rotor being careful not to bend or apply side load to motor shaft. - Page 11 Note: Even though the Orbital 360 is designed to absorb considerable out-of-balance forces, running the centrifuge with out-of-balance samples will cause excessive vibration. This will disturb the samples, affect the overall performance of the unit and may lead to mechanical damage.
-
Page 12: Parameter Setting Menu
CLEMENTS Parameter Setting Menu Press M to select parameter setting mode. Each press of the M button advances to the next parameter. Press E to save the parameters and exit the parameter setting NTER mode. Parameter setting mode is automatically cancelled after a 5 second timeout with no button pressed. - Page 13 CLEMENTS Set Speed 1. Press M button until speed field is highlighted. 2. Press I or D to select required speed. Note that speed changes in steps of 100rpm and will auto-increment or auto-decrement if the I or D button is held down.
- Page 14 CLEMENTS User Programs There are 15 user programs available that each store a complete set of parameters (i.e. speed, time, acceleration, deceleration and rotor) for a particular centrifugation process. User programs are viewed or selected in program mode which is accessed via the P button.
- Page 15 CLEMENTS Warning Rotor selected must match rotor fitted. Pay particular attention to ensuring that the rotor set in the user program selected matches the actual rotor fitted. Otherwise the rotor could be subject to speeds in excess of its rating leading to damage to the rotor.
-
Page 16: Operation Summary
CLEMENTS Operation Summary See previous sections for details of individual steps. 1. Confirm that correct rotor is selected. 2. Load a balanced and evenly distributed set of sample tubes. 3. Close lid. 4. Confirm acceleration and deceleration profiles. 5. Set required speed. -
Page 17: Rotors
CLEMENTS Angle Rotor CEN 91700 001 24 x 10ml Tubes Max rpm: 4000 Max RCF: 2850 Rotor Setting: 1 Swing Rotor CEN 91700 002 12 x 15ml Carriers Max Speed: 5000rpm Max RCF: 4100 Rotor Setting: 2 Rotors... - Page 18 CLEMENTS Swing Rotor CEN 91700 003 24 x 5ml Carriers Max Speed: 5000rpm Max RCF: 4100 Rotor Setting: 4 Swing Rotor CEN 91700 004 4 x 50ml Carriers Max Speed: 4200rpm Max RCF: 2760 Rotor Setting: 3 Rotors...
-
Page 19: Accessories And Spares
CLEMENTS Accessories and Spares Accessories CEN 91700 001 Angle Rotor for 24 x 10ml Tubes for Orbital 360 CEN 91700 002 Swing Rotor with 12 x 15ml Carriers for Orbital 360 CEN 91700 003 Swing Rotor with 24 x 5ml Carriers for Orbital 360... -
Page 20: Cleaning And Maintenance
• Solvent-based cleaning agents and abrasive cleaning agents should never be used on the Orbital 360. Maintenance The Orbital 360 is designed to provide extended and reliable operation. To ensure proper operation and maximise the life of the centrifuge the following requirements must be observed: •... -
Page 21: Fuse Replacement And Error Codes
CLEMENTS Fuse Replacement 1. Switch off mains power to centrifuge using switch on rear panel. 2. Remove power cable from centrifuge IEC mains power inlet. 3. Slide out fuse holder and remove blown fuse from U-shaped holder. 4. Replace fuse with one matching fuse rating on rating label. -
Page 22: Troubleshooting
CLEMENTS Troubleshooting Symptom Possible Cause Action LCD display not lit Power cable not Plug in power cable. when power switched plugged in securely. No power supply. Confirm power supply. Fuse has blown. Replace fuse. Loose connecting Check and re-seat cables. -
Page 23: Rcf Graphs
CLEMENTS RCF Graphs 50 ml 900 1000 4000 5 & 15 ml 3000 2000 50 ml 1000 1000 2000 3000 4000 5000 RCF Graphs... - Page 24 CLEMENTS Notes...
- Page 25 CLEMENTS Notes...
-
Page 26: Warranty
CLEMENTS Warranty BMDi TUTA Healthcare Pty Ltd warrants that this product is free from defects in workmanship and materials for a period of 12 months from the date of shipment by BMDi TUTA Healthcare or its authorised agent to the purchaser. Subject to the... - Page 27 CLEMENTS any modifications of the product which were not authorised in writing by • BMDi TUTA Healthcare ; any contamination or leakages caused or induced by the purchaser; and • inadequate or improper maintenance of the product. • This warranty does not cover normal wear and tear.
