Mac Medical DWC24-TL Installation Instructions

A: Removing Standard Warmer Cabinet Header

(p/n: DWC24-TL)
The Standard Warmer Header for a DWC24-TL
Dual Warmer Cabinet can be easily replaced
with a DWC24-TD-D Warmer Cabinet Header
with a Data Logger option.
1. Disconnect all electrical power to the Warming
Cabinet by removing the power cord from the
electrical supply. If the unit is hard-wired to
facility power, turn OFF the circuit breaker.
CAUTION:
Failure to remove the power cord from
the electrical supply can result in severe
electrical shock and even death to
personnel as well as severe damage to
the equipment.
2. The Outside and Inside Top Panels must be
removed first. See Figure 1.
3. Remove four 8 X 1-5/8" self-tapping screws
from Outside Top Panel. Remove Outside
Top Panel and set aside. See Figure 1.

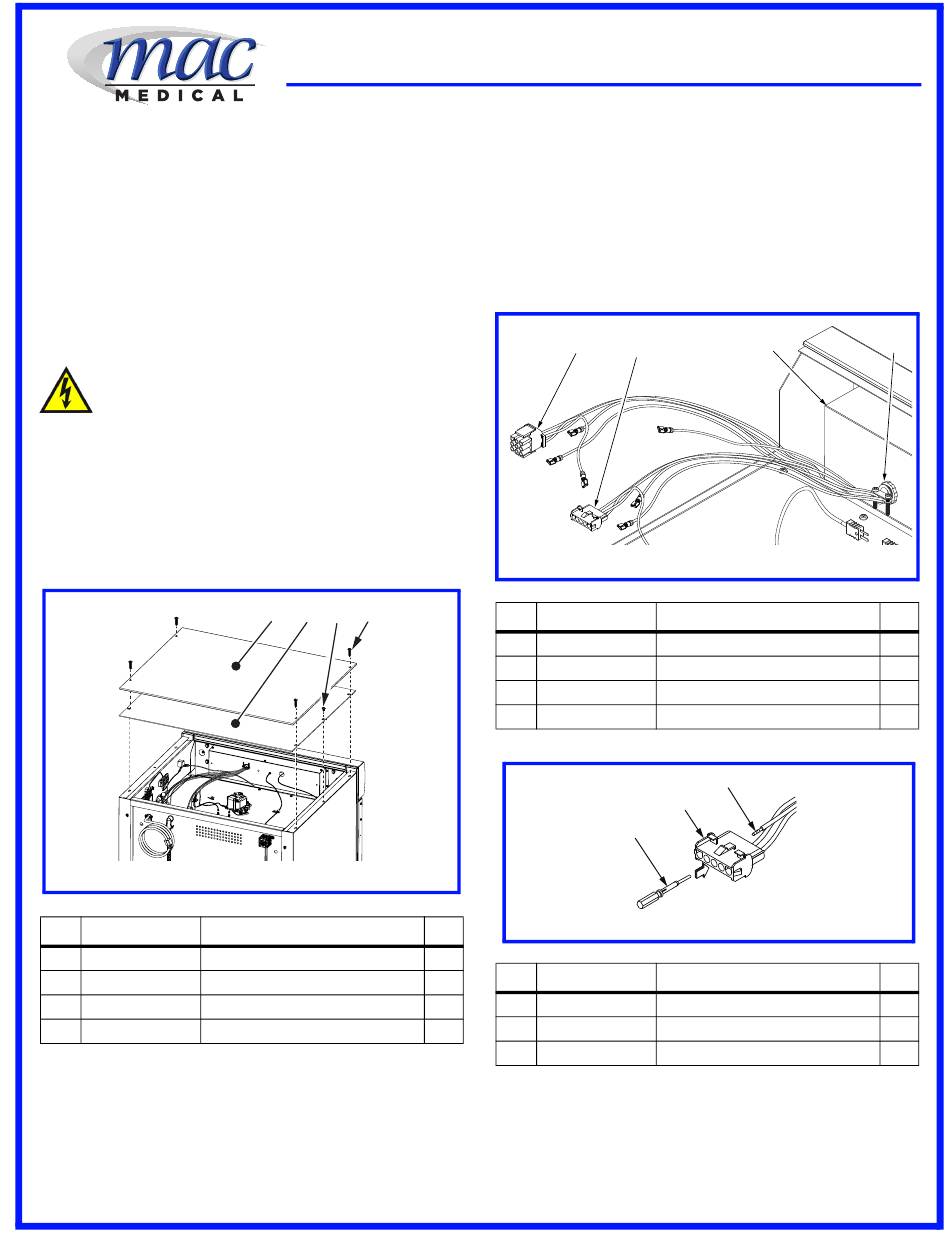

Figure 1: Removing Inside and Outside Top Panel
REF P/N
1 SMW0027
2 SMW0028
3 H0012-01
4 H0012-02
4. Remove two 8 X 1/2" self-tapping screws from
Inside Top Panel. Remove Inside Top Panel
and set aside. See Figure 1.
The Standard Warmer Header for a DWC24-TL
Dual Warmer Cabinet can be removed from a
standard dual warming cabinet without removing
the Upper Drawer Assembly (p/n: W0288).
IFU - 033 Rev.A
INSTALLATION INSTRUCTIONS: Replacing a Standard Warmer
2 3
1
4
DESCRIPTION
Outside Top Panel
Inside Top Panel
Screw, Self-Tapping, 8 X 1/2"
Screw, Self-Tapping, 8 X 1-5/8"
Header (DWC24-TL) with a Data Log Header (DWC24-TL-D)
1. There is no specific order in removing all
wiring to the Header, just specific steps that
allows the wiring to pass safely through the
electrical box.
2. Loosen two screws on the 3/8" straight-
through electrical connector mounted on the
back side of the Warmer Cabinet Electrical
Box (just behind the Header). See Figure 2.
1
Figure 2: Loosening Wire Connector on Electrical Box
REF P/N
1 W0199
2 W0198
3 SMW0032
4 W0140
Figure 3: Removing Wires from Circuit Plug
QTY
1
REF P/N
1
1 16AWG
2
2 W0198
4
3 16AWG
3. Use a Pin Extraction Tool (for 16AWG wire) to
remove the wire leads from the 9-/5-Connector
Circuit Plugs. See Figure 3.
CAUTION: Use ONLY a Pin Extraction Tool
1
3
2
DESCRIPTION
Connector, 9 Circuit Plug
Connector, 5 Circuit Plug
Cover, Electrical Box
Connector, 3/8" Straight
3
2
1
DESCRIPTION
Tool, Pin Extraction
Connector, 5 Circuit Plug
Wire, Crimped Terminal End
designed for the specific wire size
4
QTY
1
1
1
1
QTY
1
1
1
