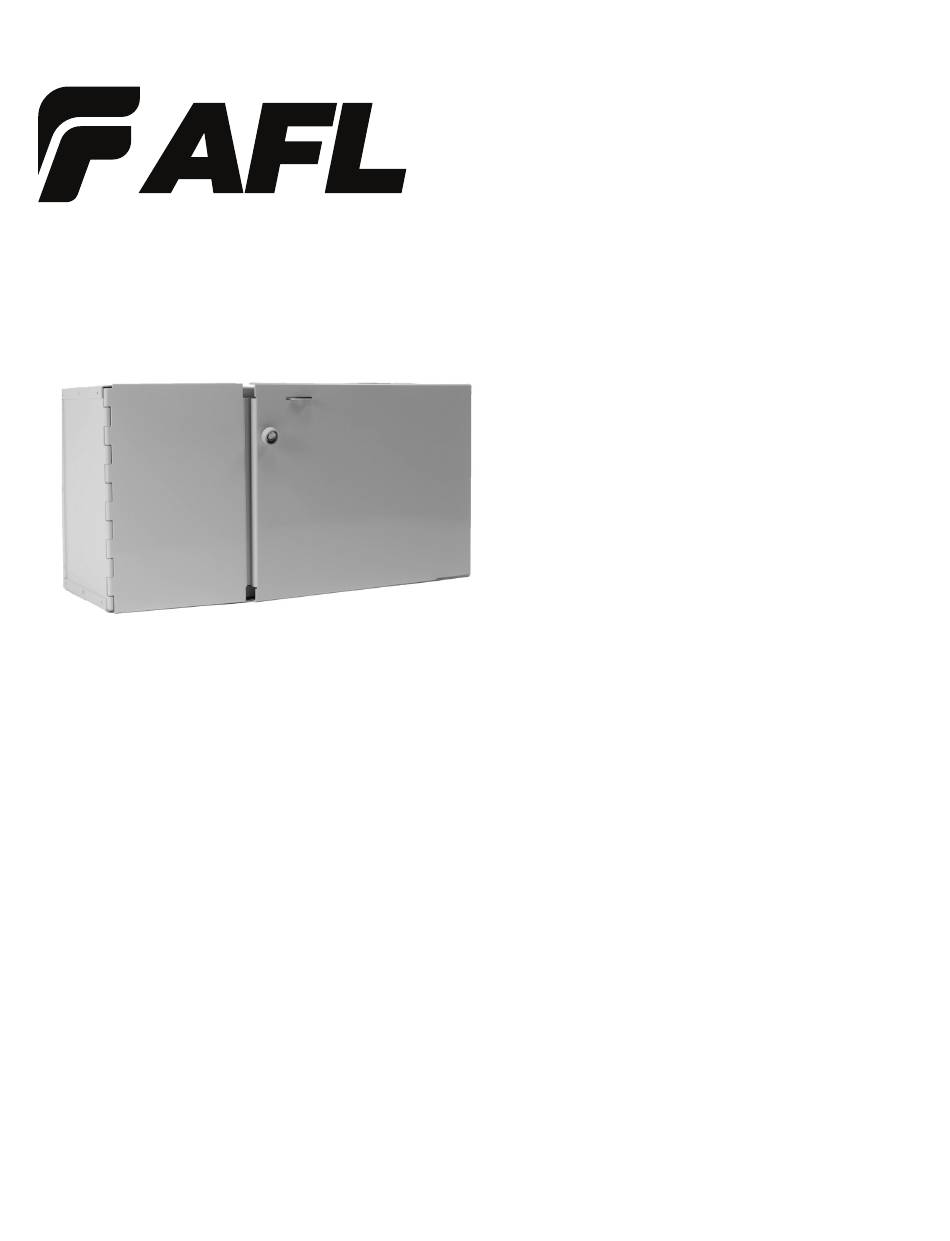

INSTALLATION INSTRUCTIONS
IDEAA
Mini Interior Distribution Cabinet
®

TABLE OF CONTENTS

GENERAL ......................................................................................................................................... 2
SPECIFICATIONS ............................................................................................................................. 2
PACKAGE CONTENTS ..................................................................................................................... 2
PACKAGE CONTENTS: ACCESSORIES ......................................................................................... 3
REQUIRED TOOLS .......................................................................................................................... 3
ADD-ON COMPONENTS .................................................................................................................. 3
CABINET MOUNTING-WALL MOUNT ........................................................................................... 3
LOCK AND UNLOCK EXTERIOR DOORS ....................................................................................... 4
CABLE PREPARATION .................................................................................................................... 4
CABLE INSTALLATION .................................................................................................................... 5
COMPRESSION FITTING INSTALLATION ...................................................................................... 6
DISASSEMBLE COMPRESSION FITTING-CABLE REPLACEMENT ........................................... 6
SPLICING .......................................................................................................................................... 6
MDU DROP CABLE INSTALLATION ............................................................................................. 10
PASS THROUGH CONNECTION ................................................................................................... 14
