Summary of Contents for DULUCK PS-1604
-
Page 1: User Guide

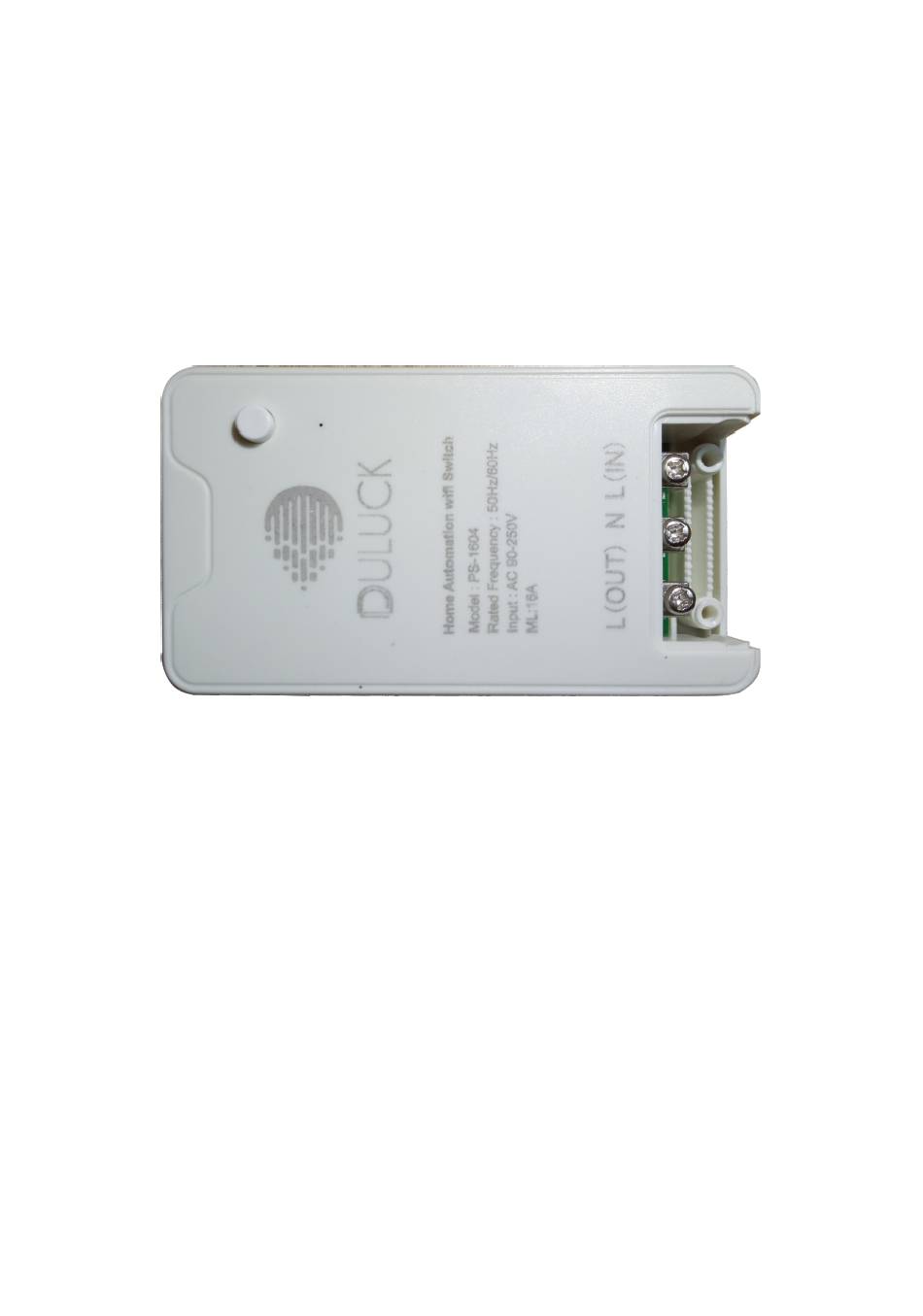

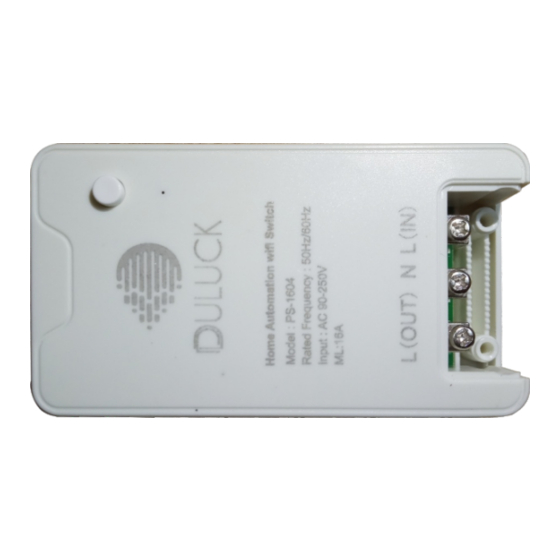

USER GUIDE Hi, Welcome to use the PS-1604 WiFi smart switch! Model : PS-1604 APP : eWelink IN : AC85-265V 50/60Hz OUT : Max 16A WiFi : 2.4G_wifi Made in China... - Page 2 1. Your Smart phone or tablet has connected to a 2.4G WiFi with internet 2. You have the correct wifi password 3. Not allow to hide wifi(SSID). 4. Router no MAC filter is set. Remote wifi Internet gprs WiFi Phone Server Router PS-1604...
- Page 3 Download APP eWeLink eWelink In APP store or Google play If permission request appears in APP, please allow it Register/Create an account in eWelink APP and login...
- Page 4 4. Follow below wiring instruction to the connect the device. Live wire Neutral wire...
- Page 5 Press the button for 7s until the green LED fast blinks 3 times and repeats. Like the picture below. If the device is already in the pairing state. proceed to the next step. Repeats Time Green LED is off Green LED is on add a new device...
- Page 6 Select “Quick Pairing Mode” and click “Next”...
- Page 7 Input you home WiFi Password. click “Next”...
- Page 8 Name your device to complete When Green LED is on, the Device is online, start to control now!
- Page 9 If pairing failed, Try again. If pairing failed many times Read FAQ or try compatible pairing Mode...
- Page 10 Q: Pairing failed 1. Check WiFi password, try again 2. Restart Router, Try Again 3. Try Compatible Pairing Mode 4. Read FAQ or fill in the feedback...
- Page 11 Q: Device display is “Offline” A: The newly added device needs 1-2 minutes to connect to your WiFi router and the internet. If it keeps offline for a long time. please judge the problem by the LED blinking status. Green LED is quickly blinks one time every second.
- Page 12 FAQ & Help & Feedback Amazon Echo and google home user guide Help Document : http://ewelink.coolkit.cc Help Video : http://www.coolkit.cn/video/...
- Page 13 Works with smart devices DULUCK SMART SPEAKER...
- Page 14 Set Inching duration...
- Page 15 2. Can Connect In Series (Wiring diagram) 2. Can Connect In Series (Wiring diagram) Smart switches are connected in Smart switches are connected in Series between wall switches Series between wall switches and electrical appliances and electrical appliances Smart Switch Lamps Lamps Electric...
- Page 16 Scope of warranty: - Product has one –year warranty from the date of purchase. The user/ customer has to produce original purchase invoice for availing warranty. Product warranty is valid only when the failure of the product does not arise due to use for any unintended purpose Product doesn't fall/cover under warranty for damage resulting due to product installed or used in abnormal environments or due to water leakage/seepage from the ceiling /walls.
- Page 17 DULUCK SMART CONTROLLER_ WIFI SMART SWITCH MODEL NO.: PS-1604 Warranty Stands/covers For Receiver Only Unit Serial No. TO BE FILLED IN AT (POP) POINT OF SALES Name and Address of seller Date of sale Cash Memo Number FOR DETAILED FEATURES AND USAGE LIKE VOICE COMMAND CONTROL, APP CONTROL, KINDLY LOG IN www.duluckos.com...
