Kessil A360W Owner's Manual

A360N
A360W
LED Aquarium Light
OWNER'S MANUAL
LED ILLUMINATOR
Kessil Lighting
A DiCon Brand
1689 Regatta Blvd, Richmond, CA 94804
(510) 620-5250
www.kessil.com

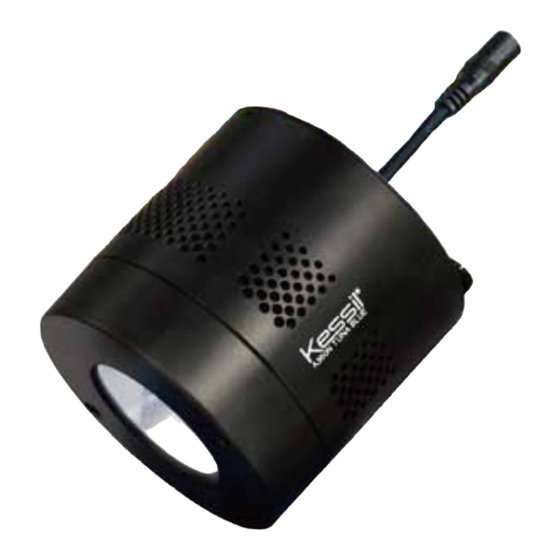

A360N / A360W
Kessil takes another leap forward in the Spectral Revolution
with the A360N / A360W Tuna Blue LED aquarium light.
Incorporating the latest 90W Dense Matrix LED platform,
A360 features a penetrating, tunable light that provides a
beautiful shimmer effect, boosts coral growth and color,
and can easily be tuned to emit a range of spectrums from
Sky Blue to Actinic Blend and every shade in-between.

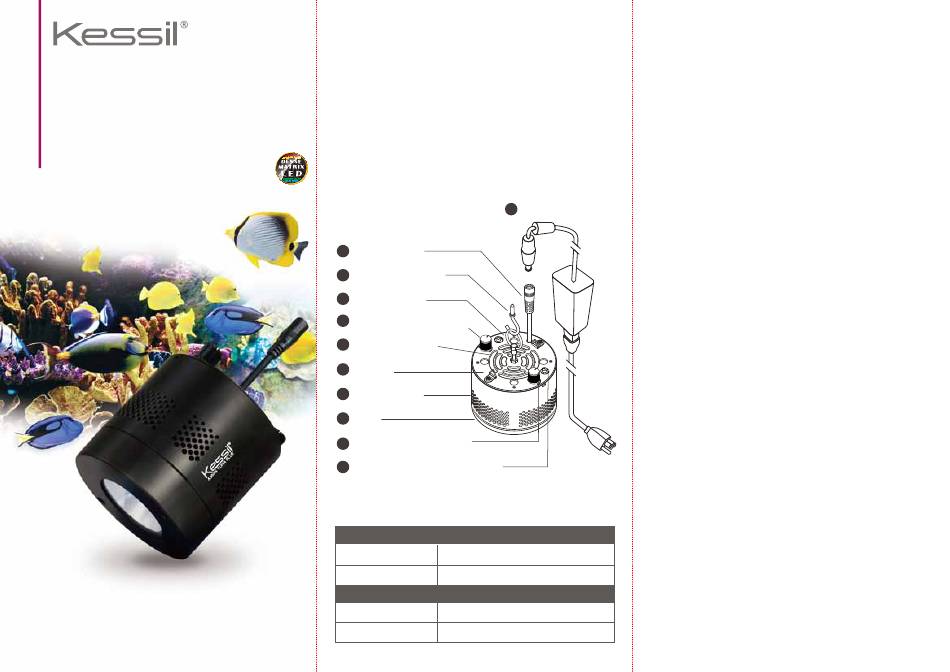

PARTS DIAGRAM
J
Power Cord
A
Gold Metal Hook
B
Hanging Bolt
C
Spectral Tuning Control
D
Air Intake Holes
E
Bracket
F
Venting Holes
G
Lens
H
Light Intensity Control
I
External Controller Port (2)
K
PRODUCT SPECIFICATIONS
Illuminator
Power Consumption 90W MAX
Input Voltage 19 VDC
Listed Power Supply
Input
100 - 240 VAC, 47 - 63 Hz, 1.5 A MAX
Output 19 VDC, 4.74 A
INSTALLATION GUIDE
1. Remove contents from package.
2. Screw the hanging bolt (C) into the center hole.
3. Hang the A360N / A360W 1 to 2 ft. above the object
to be illuminated.
4. Connect power cord (A) to the specified DC power
supply (J).
5. Plug the power supply into an outlet with the correct
specifications (see product specifications for more
information).
6. Adjust the Light Intensity Control (I) and the Spectral
Tuning Control (D) to the desired setting. When set
DC Power Supply
fully to the left, the light is very close to Kessil Sky
Blue.The middle setting is very close to Kessil
Ocean Blue. Fully to the right is close to actinic blue.
7. The jacks beneath the controls can be connected to
an external 0~10V controller. Please consult your
controller's owners manual for more information.
The
* A360N
hooks ( diameter of at least 2.5 mm and thread count of at least 6 )
through its brackets ( F ) .
** The A360N / A360W should only be installed on wood, acoustic
tile or other similar ceilings.
** For sufficient airflow, the intake and venting holes ( E,G )
should be at least 12 in. from surrounding obstructions.
SAFETY INSTRUCTIONS
1. DO NOT use a power supply that is outside the
specifications. This is a fire hazard and may lead
to unit failure.
2. DO NOT use outdoors. This unit is intended for
indoor use only.
3. DO NOT expose unit to an extremely humid
environment or submerse unit in water. This may
lead to unit failure.
4. DO NOT place working illuminator in close contact
with any objects. This may cause objects to heat
up and the unit to overheat.
5. KEEP lens (H) away from sharp objects. Sharp
objects may break the lens and lead to unit failure.
6. DO NOT cover or place objects on the power
supply. Power supply should not be contained in
an airtight space.
**
/
A360W may also be hung by mounting two metal
*
