INTRODUCTION
The Zurik® EMLV Dimmable Driver is the most versatile and efficient dimmable electronic driver for single color output LED strips. This driver has
a high power factor of 0.99, a universal input and perfect compatibility with a wide range of dimmers for flicker free lighting. Its high power
efficiency, wide voltage input, and quiet operation make the EMLV the professional's choice when it comes to flawless dimming.
SAFETY AND WARNINGS
•
Install in accordance with the National Electric Code (NEC) Article 450, and local regulations.
•
This product should be installed and serviced by a qualified electrician.
•
Install in a well ventilated area free from explosive gases and vapors.
•
Do not reverse the line voltage polarity upon installation. This will damage the driver.
•
Risk of electric shock: When used outdoors, install only on a circuit protected by a Class A GFCI.
•
Risk of fire: Special rated wire required for installations inside walls and building structures.
•
Consult a qualified electrician. Do not install in wet locations. Install only in dry or damp locations.
•
Only use with compatible dimmable LED fixtures.
•
Dimmer switches have minimum load requirements. Review the specifications of the compatible dimmer.
•
Modifying or disassembling this product beyond these instructions will void the product warranty.
(L) Live Channel
(N) Neutral Channel
( ) Ground Channel
Additional Features
• Constant voltage output
• Easy installation
• Cooling by free air convection
• Compatible with most forward phase, magnetic low voltage,
reverse phase, and electronic low voltage dimmers

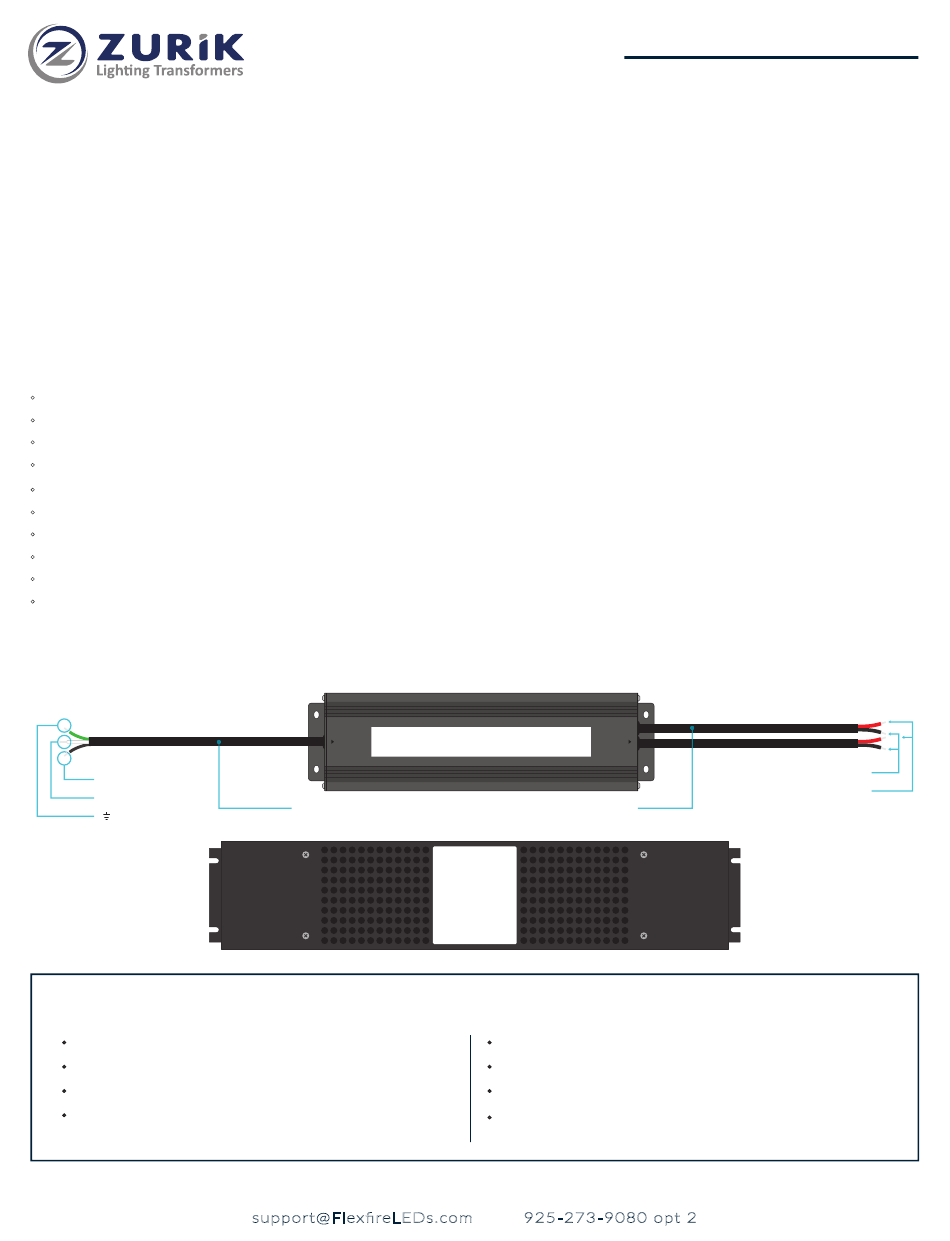

Z RK-E MLV 2-200W-XXDC
ZURIK® EMLV 12V & 24V 200W LED DRIVER
Low Voltage LED Driver
AC
Input Power Wire
support@FlexfireLEDs.com
ZURIK® EMLV LED Driver 200W
DRIVER
DC
Output Power Wires
• Flicker-free dimming
• Suitable for LED lighting and sign applications among other uses
• Has 2 Output Power Wires with split output
• Comes with junction box:
D: 2 5/16" (59mm)
925-273-9080 opt 2
User Guide
Negative Channel (-)
Positive Channel (+)
H: 16" (407mm) W: 3 3/8" (86mm)
1
page
V.2019.08.29
