Water Tec WT1 Operation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Water-Tec.co.uk
Operation Manual

Advertisement

loading

Summary of Contents for Water Tec WT1

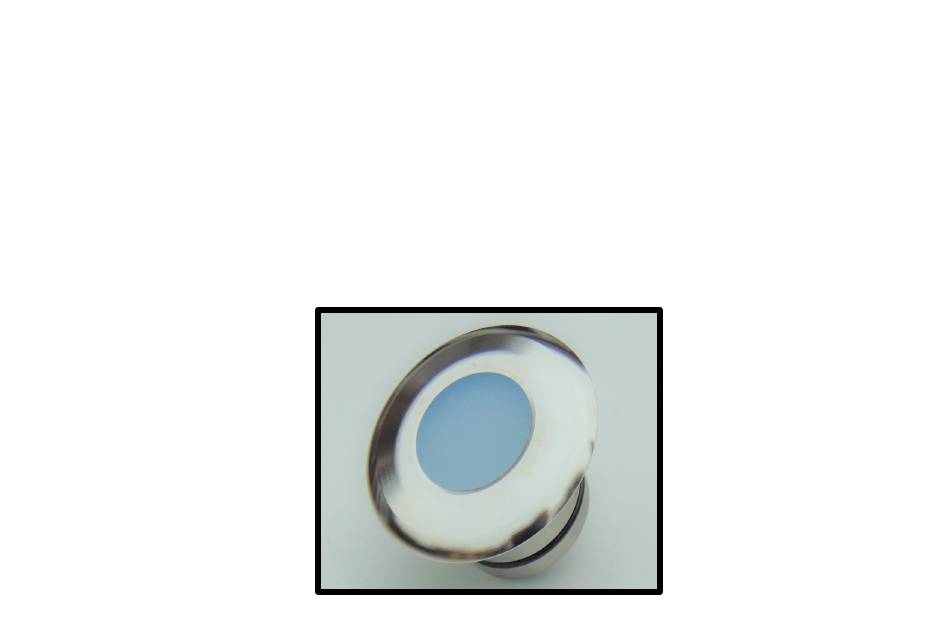

  • Page 1 Water-Tec.co.uk Operation Manual...
  • Page 2 38. Trouble shooting white. 10. WT-Wiring to DMX/Switch/Bluetooth. 39. Trouble shooting RGB. 11. WT4-5 White Driver Box Wiring. 12. WT1-2 White Driver Box Wiring. 40. RGB Test switch. 41. WT-Terms and Conditions. 13. WT1-2-4-5 White Driver Box. 42. WT-Terms and Conditions.
  • Page 3 All pipework must be made water tight. Pipework to be installed ABOVE pool 6mm dia light cable water line WT1 or WT3 light at recomended depth of 500 - 1000 mm threaded reducer apply PTFE tape welded into pipe around casing and 'O' ring to seal into 2"...
  • Page 4 blue water pipe or 22mm ABS pipework. All pipework must be made water tight. WT4 Niche fix with M6 csk screws Pipework to be installed ABOVE pool 6mm dia light cable water line WT4 light at recomended depth of 500 - 1000 mm threaded reducer welded into pipe apply PTFE tape...
  • Page 5 blue water pipe or 22mm ABS pipework. All pipework must be 6mm dia light cable. made water tight. NOTE: coil cable ANTI-clockwise Pipework to be before screwing into the inlet installed ABOVE pool water line WT2 or WT5 light at recomended depth of 500 - 1000 mm threaded reducer...
  • Page 6 blue 0V brown + 24V DC Power red + green + fuse supply blue + LED driver fuse white - fuse unit black - yellow - red + green + fuse blue + LED driver fuse white - fuse black - yellow - red + green +...
  • Page 8 blue 0V brown + 24V DC Power red + green + fuse supply blue + fuse white - fuse unit black - yellow - red + green + fuse blue + LED driver fuse white - fuse black - V-OV 24V DC yellow - red +...
  • Page 10 RGB Single Lamp Red (+Anode) Green (+Anode) LED LUXEON Rebel Blue (+Anode) WT3 Constant Current 350mA Max WT1-2-4-5 Constant Current 1000mA Max Recommended Current 700mA Lamp 1 Forward Voltage 3.05V Yellow (-Blue Cathode) Black (-Green Cathode) White (-Red Cathode)
  • Page 11 RGB Touch Switch RGB Driver Output Input Green Blue +24V DC +24V DC...
  • Page 12 + LED driver fuse fuse WT1 & WT2 White Driver Box NO Control It is essential that all connections are waterproof Water-tec.co.uk 6/2/2019 WT1 & WT2 White Driver Box NO Control 10 Crabtree Lane Drayton Abingdon OX144HS Tel 01235 536616...
  • Page 13 blue 0V brown + 24V DC Power green / yellow - supply fuse grey + LED driver fuse black - unit brown + green / yellow - fuse grey + LED driver fuse black - brown + V-OV 24V DC green / yellow - fuse grey +...

  • Page 15: Power Supply Unit

    + 24V DC blue - 24V DC V-OV Power supply unit WT1 & WT2 White Lamp It is essential that all connections are waterproof Water-tec.co.uk 6/2/2019 WT1 & WT2 WHITE Lamp External Driver 10 Crabtree Lane Drayton Abingdon OX144HS Tel 01235 536616...
  • Page 16 DMX/DIM Switch Phone App If not using any form of control - put green wire into V-OV brown + black - LED driver blue 0V grey + red + 24V DC green / yellow - 24V DC V-OV Power supply unit WT4 &...
  • Page 17 blue V- brown + 24V DC Power blue - fuse supply brown + unit V-OV 24V DC blue - fuse brown + blue - fuse brown + brown +24V DC blue input 0V- blue V- DIM switch blue - fuse or DMX brown + blue -...
  • Page 18 brown + 24V DC brown + blue 0V blue - V-OV 24V DC Power supply unit WT3 White Lamp It is essential that all connections are waterproof Water-tec.co.uk 6/2/2019 WT3 WHITE Lamp External Driver 10 Crabtree Lane Drayton Abingdon OX144HS Tel 01235 536616...
  • Page 20 RGB Cable Six Core 20M run RGB Switch / DMX Power in Blue 0V WT1-2 Spacing 2M Power in Brown +24V 5 WAY RGB DRIVER BOX WT4-5 Spacing 3M 3 WAY RGB DRIVER BOX 0V V- 24V V+...
  • Page 21 White Cable Two Core 20M run Dim Switch / DMX Power in Blue 0V WT1-2 Spacing 2M Power in Brown +24V 5 WAY WHITE DRIVER BOX WT4-5 Spacing 4M 3 WAY WHITE DRIVER BOX 0V V- 24V V+...
  • Page 22 WT-Lamp Joining connections Make sure the terminals are protected against corrosion and they are water tight. Lamp WT-Lamp 24V DC Supply 2. Place the heat shrink tube over the crimped cable and also over the black insulation 1. Cut cable and strip back black insulation.
  • Page 23 TDK-Lambda 150W, 1 Output, Embedded Switch Mode Power Supply Product Details 150W, Universal Input, Single Output, LS Series Universal AC input 88-264Vac, LS150 models are switch selectable for 115 or 230Vac Overcurrent/Overvoltage protection Power factor correction to EN 61000-3-2 Withstands 300Vac surges (minimum 5s) Very High efficiency up to 87% Conducted and radiated EMI: EN55011/EN55022-B, FCC-B Note...
  • Page 24 How to connect to FreeColor Phone App How to connect to RGB-WiFi Step 1. First you need to download the App FreeColor Step 2. You need to connect to the WiFi go to your WiFi settings find HX001 and connect. Step 3.
  • Page 25 How to connect to Magic Home Phone App How to connect to RGB-Wi-Fi Step 1. First you need to download the App Magic Home Step 2. You need to connect to the Wi-Fi go to your Wi-Fi settings, find LEDnet994164 and connect.
  • Page 26 Bluetooth Magic Light – BLE Phone App This is a application software with built-in Bluetooth, version 4.0 and android OS 4.3. Step 1. Download the Magic light-BLE app from the play store onto your phone or tablet. Step 2. Turn on your Bluetooth and open the Magic home app. Step 3.

  • Page 27: Remote Control

    Remote control Please note: When using the touch switch with the WiFi remote, you must turn off the switch to use the remote or turn off the remote to use the switch. Both cannot work at the same time.
  • Page 29 RGB Touch panel Specifications: 3 channels DC 12V-24V working voltage 8A Lock lights to your favourite mode or brightness level immediately Working voltage: DC 12V - 24V 4 functional buttons with a rainbow colour ring for colours and modes controlling Working temperature: -20-60℃...
  • Page 30 White Touch panel Features: Touch panel controller is a new high-quality controller which adopts glass panel design, beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the sensitivity of touch panel. It is used for controlling a variety of LED Lamp, for instance, point source of light, flexible light strip, panel lights, etc.

  • Page 31: Touch Panel Installation

    Touch panel installation...
  • Page 37 WT4-Niche Front 3 x M6 counter sunk holes M6 Counter sunk holes 50mm 2” BSP thread 104mm 120mm 86mm 80mm...
  • Page 38 Trouble shooting White lights Lights are not working Check the PSU has PSU showing the green light You have power but lights mains power and you have 24V DC Output are flashing Check the +24V output The PSU may connections Blue 0V = V- not be the Brown + 24V = V+ correct size...
  • Page 39 Trouble shooting RGB lights Lights are not working What lamps are you WT1-2-3 are they correctly WT4-5 use one RGB driver using wired in series per lamp Test the wiring using the Do you have any RGB test switch colours missing...
  • Page 40 RGB Test Switch. The RGB test switch is designed to test the wiring without subjecting the driver or LED lamp to incorrect wiring and therefore leading to blowing the driver or lamp. The prosses of wiring is the same as you would wire up the drivers, this is done in series following the wiring diagram.

  • Page 41: Installation

    WT-Terms and conditions Pool Care and maintenance. You should avoid damage to the lamp by keeping the water at a neutral PH-value. Also the water should be free from metal attacking ingredients to avoid discolouration any material deposits on the lamp must be removed with a suitable non metallic cleaner. The lamp must not come into contact with any metal effecting cleaners, or acids.
  • Page 42 General The installation depth should be between 500mm to 700mm. Sufficient cable should be retained in the niche/pipe work to pull the lamp to the surface, and carry out any repairs. The lamps O ring is not a water tight seal therefore we recommend a soft sealant to be placed round the lip of the lamp prior to fitting.

  • Page 43: Warranty And Liability

    WARRANTY AND LIABILITY All our products are covered by your statutory rights, this warranty is in addition to your statutory rights under either the Sale of Goods Act 1979 or the Supply of Goods and Services Act 1982 .If you are unhappy with the service you receive from water- tec.co.uk please contact us immediately in order that we can rectify the situation.

This manual is also suitable for:

Wt3Wt2Wt4Wt5
