User's Guide

TC-WELDER

Thermocouple Welder

REV 1.5

Table of Contents

Need help?

Do you have a question about the TC-WELDER and is the answer not in the manual?

Questions and answers

Summary of Contents for IO Thrifty TC-WELDER

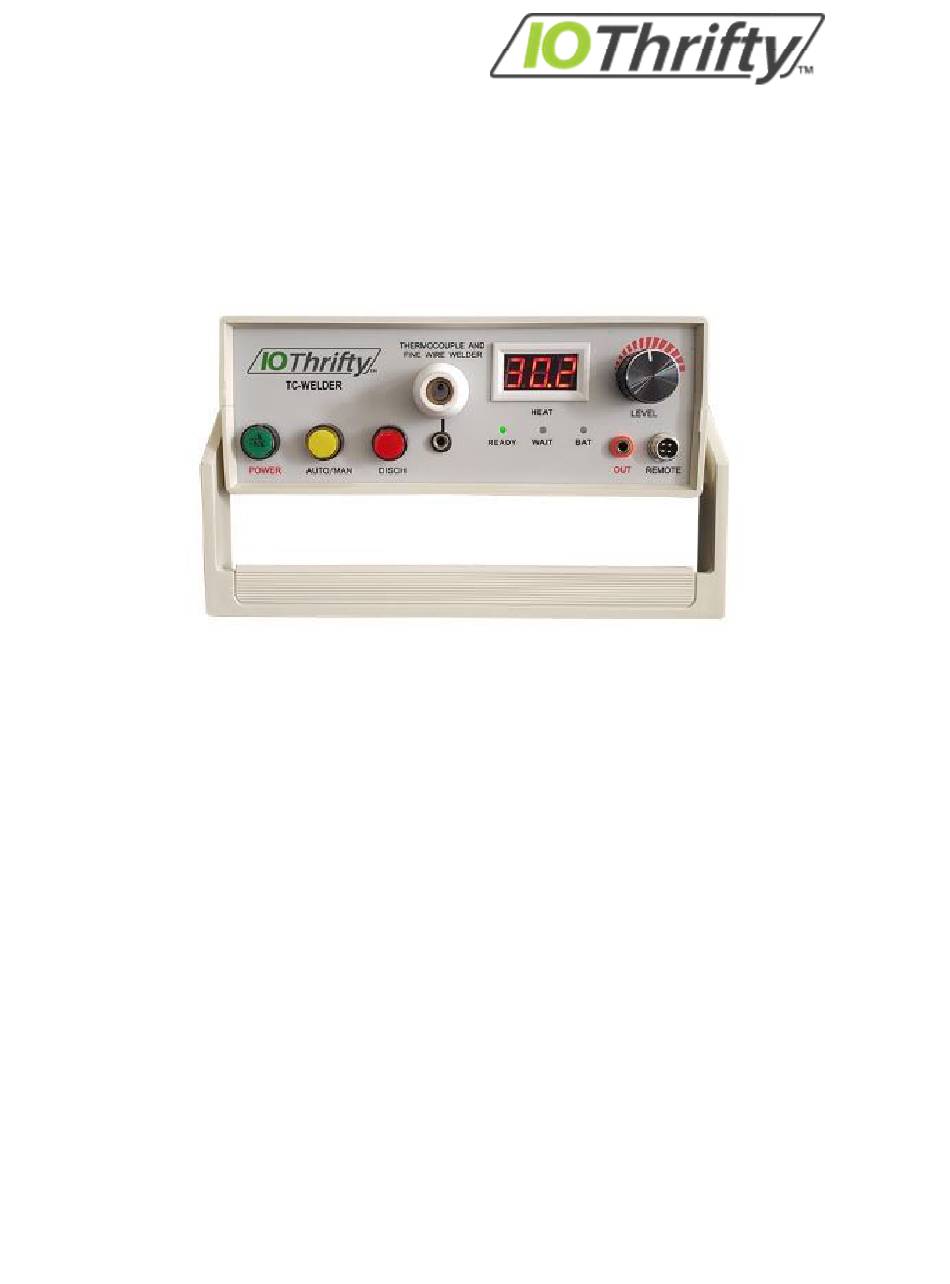

Page 1 User’s Guide TC-WELDER Thermocouple Welder REV 1.5...
Page 2 LED Heat Indicator for Repeatable Results The LED Heat indicator on the front of the TC-WELDER allows you to set the power used for the weld. This visual indicator makes it easy to adjust the power for different wire sizes and wire types in order to provide consistent and repeatable welds.
Page 3 Front Panel Operations Power Button – When the switch is turned on, the power button has two conditions: light or no light, When the light is on, it indicates that the welder is operating from AC power. If the light is off, the welder is operating from the internal rechargeable battery, AUTO/MAN Button –...
Page 4 Rear Panel Operations ARGON Input Port – Connect Argon gas to this port. This is optionally used only when welding with Argon. INPUT – AC power input, input voltage is AC90-265V/50-60HZ ARGON PRESSURE Knob: Used to adjust the flow of Argon gas.
Page 5 Welding Operation Warning! - Never weld without using protective glasses Argon Welding 1. Connect the argon line. 2. Connect the power supply (this step is not required when using the battery power supply. 3. Turn on the POWER switch and adjust the required thermal energy according to the size of the thermocouple wire to be welded (adjust the level knob).
Page 6 SPECIFICATIONS Power: 90-260Vac 50/60Hz, Also operates from internal rechargeable battery Size: 280 X 238 X 90mm (11 X 9.4 X 3.5in) Weight: 4.7kg (10.4lbs) Wire Gauge: welds wire as large as #16 gauge and as small as #30 gauge Contact Information Email: service@iothrifty.com Telephone: (860) 733-1117...
Page 7 Warranty Terms IOThrifty LLC ("IOThrifty") warrants that for a period of one year following delivery, the IOThrifty products you have purchased will (a) perform in accordance with published specifications, and (b) will be free from defects in materials or workmanship. In the event an IOThrifty Product does not meet this warranty, subject to the conditions set forth in these terms and conditions, IOThrifty’s sole obligation will be, at its election, to repair or replace the product in question or to refund the purchase price.
