Summary of Contents for DIGITECH Audio XC-0387

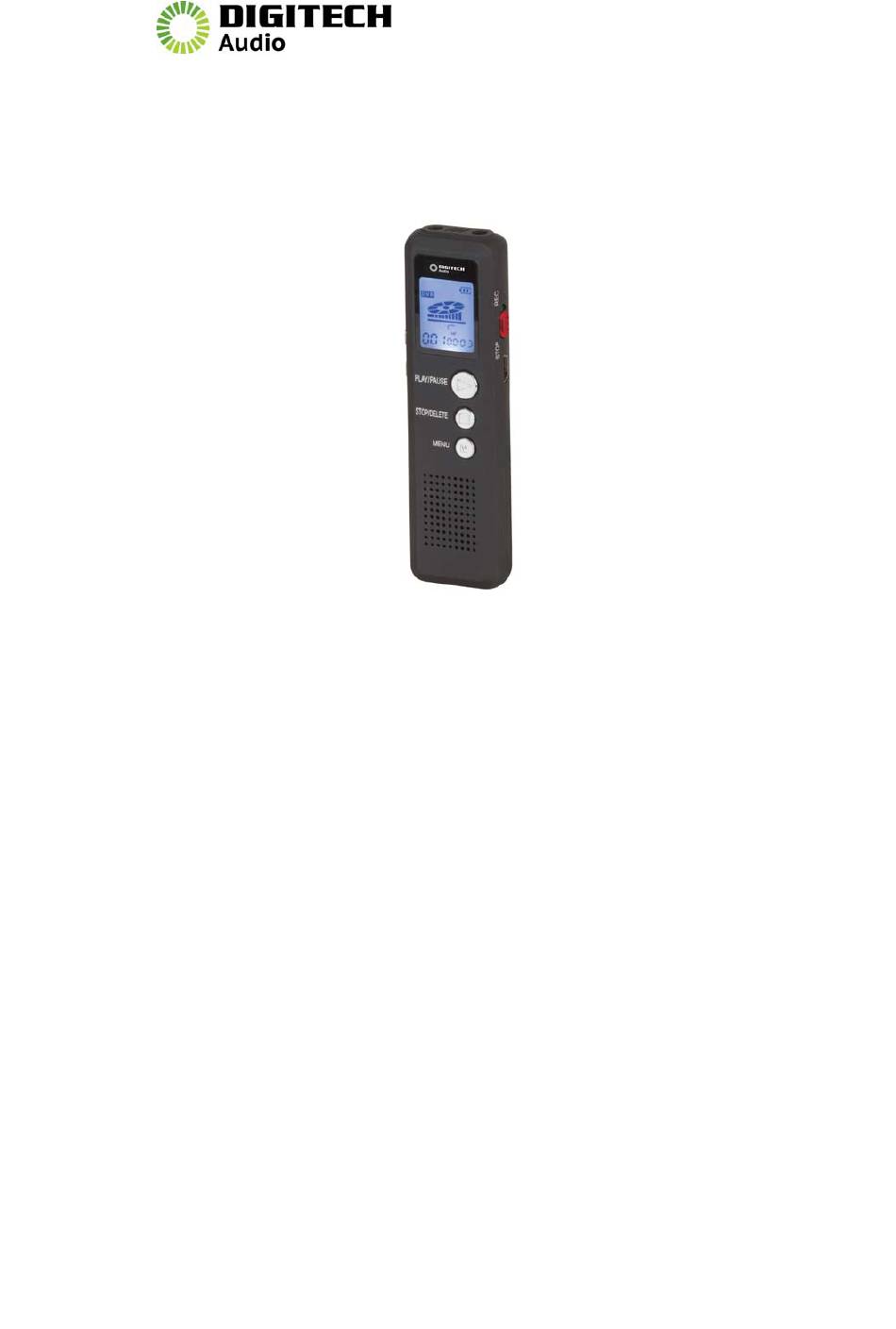

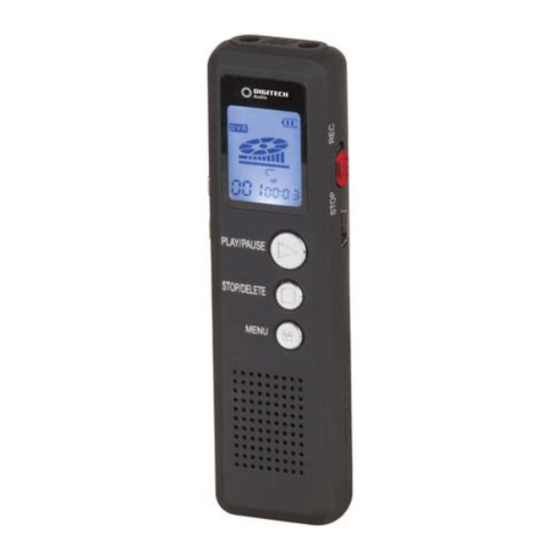

- Page 1 Digital Voice Recorder User Manual XC-0387...
- Page 2 Box Contents: 1 x Digital Voice Recorder 1 x Earphones 1 x Mini B USB Cable Product Diagram: 1. In-built Microphone 9. Record/Stop 10. Vol+/Previous/Rewind 2. Headphone Jack 11. Vol-/Next/Fast F 3. Microphone Jack 12. Volume Button 13. USB Mini B 4.
- Page 3 LCD Diagram: 1. Recording LED Indicator 8. Delete Icon 2. Repeat Symbol 9. File number 3. Battery Capacity 10. Recording Status 4. DVR mode Indicator 5. Playback Status 11. Recording Type & VOR 6. Volume Indicator 12. Recording Length 7. Repeat Mode (Displays “Minutes:Secs”...
- Page 4 Functions: 1. On/Off Power Switch: Place the 2 x AAA batteries correctly in the battery compartment. Press the “ ” Play/Pause button to turn “on”/ “off” the voice recorder. Power Off: Press & hold the “ ” Play/Pause button for 5 seconds until it displays “Off”.
- Page 5 2. Recording: In any state, switch the “REC” from “STOP” to “REC” to start recording. Slide the “REC” to “STOP”. It will save the recording file automatically. To pause recording, press the " " Play/Pause button and the recording will pause. Short press “ ” again to resume recording from pause state.
- Page 6 Modes: Playback/Pause/Stop: 1. In standby of Music or DVR mode, press “ ” ・ play/pause to play current file. 2. Press “ ” Play/Pause button to control pause ・ and play. 3. In playback state, press “ ”to stop playing. ・...
- Page 7 Volume Adjustment: In file playback or stopped state, press “V” volume button first. Then press “+” to increase the volume, or “-” to decrease the volume. The volume bar will increase and decrease accordingly. Press “V” Volume button again to exit. A-B Repeat Mode: In playback state, press “M”...
- Page 8 Delete File: In the Music/DVR stopped state, find the file you want to delete by pressing “+” and “-” . Press and hold “ ” stop button to enter the delete mode. LCD will display “DELETE” and "ONE”. ...
- Page 9 Please Note: The FM radio mode can only be heard through the earphones, the earphones act as an antenna and will not allow you to play through the voice recorder’s speaker. Any earphones are suitable to use. Delete FM Channel: ...
- Page 10 Please Note: If you turn on the VOR, the device will pause recording if there is no voice detected. If the “VOX” icon flashes, the recorder will record continually once voice is detected. Record Modes: Press “M” Menu button and scroll through to find “REC type”...
- Page 11 XC-0387. Located on the device is a program called “Tool For Setup Device Time”. Please double click on this program, after you have clicked on it you should see a message saying success.
- Page 12 PC Connection: Please connect the voice recorder to your pc using the included Mini B cable. The name XC-0387 will automatically pop up as a removable storage device. If it does not open automatically then go to my computer, it should show up as a removable storage device.
- Page 13 Memory: 2GB Internal Recording Modes: HQ, SP & LP Recording Format: MP3 (HQ & LP), WAV (SP) Recording Time: 34hrs HQ 134hrs SP 540hrs LP Battery: 2 x AAA (Not Included) Battery Life: Up to 27hrs HQ, 41hrs SP, 41hrs LP Compatibility: Windows 10, 8.1, 8, 7, Vista, XP, 2000, Mac OS X®...
- Page 14 Distributed By: TechBrands by Electus Distribution Pty. Ltd. 320 Victoria Rd, Rydalmere NSW 2116 Australia Ph: 1300 738 555 Int’l: +61 2 8832 3200 Fax: 1300 738 500 www.techbrands.com Made in China...
